Запчасти Case IH 1200PT (A.50.A[17]) - ADVANCED FARMING SYSTEMS ADAPTER HARNESS - 372278A1 A - Distribution Systems

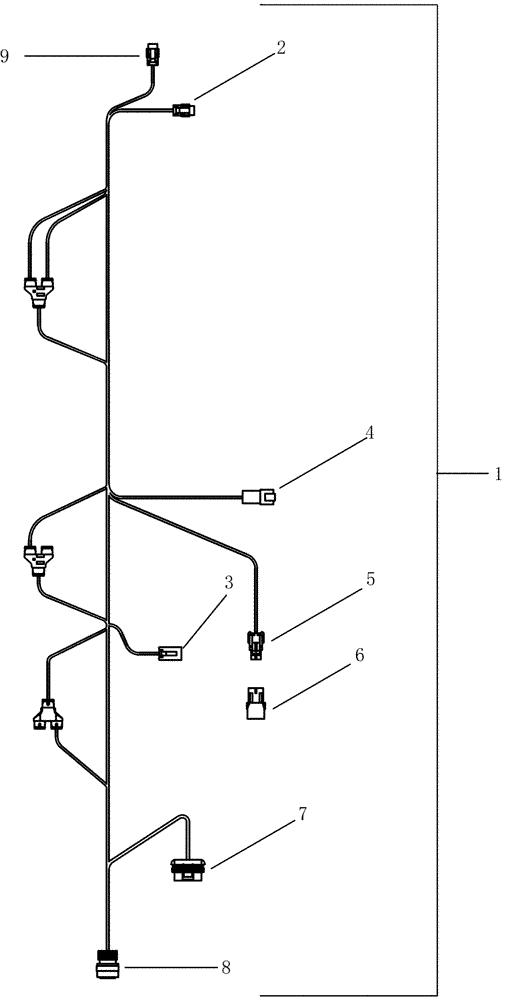

Схема запчастей Case IH 1200PT - (A.50.A[17]) - ADVANCED FARMING SYSTEMS ADAPTER HARNESS - 372278A1 A - Distribution Systems
1
2
8
7
3
6
4
5
9

Артикул

Название

Примечание

Количество

1

87408269

WIRE HARNESS

AFS inside cab

1шт.

2

87700156

CONTACT HOUSING,Female, 12 Pole

Deutsch 12 way dtm plug, grey

1шт.

3

86622300

ELEC CONNECTOR

4-cav Plug DT Series

1шт.

4

225350C1

ELEC CONNECTOR,Male, 6 Pin

6 pin type LY

1шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

1шт.

7

182081A1

TERMINAL CONNECTOR,Female, 5 Pin

Tower 5-way Metri-pak

1шт.

8

305678A1

CONNECTOR, ELEC

CONNECTOR Cannon Neptune, standard plug

1шт.

9

223679A1

MULTIPOLE CONNECTOR,Female, 12 Pin

Deutsch 12-Way DTM Plug, Black

1шт.

Выбрано товаров: 9
