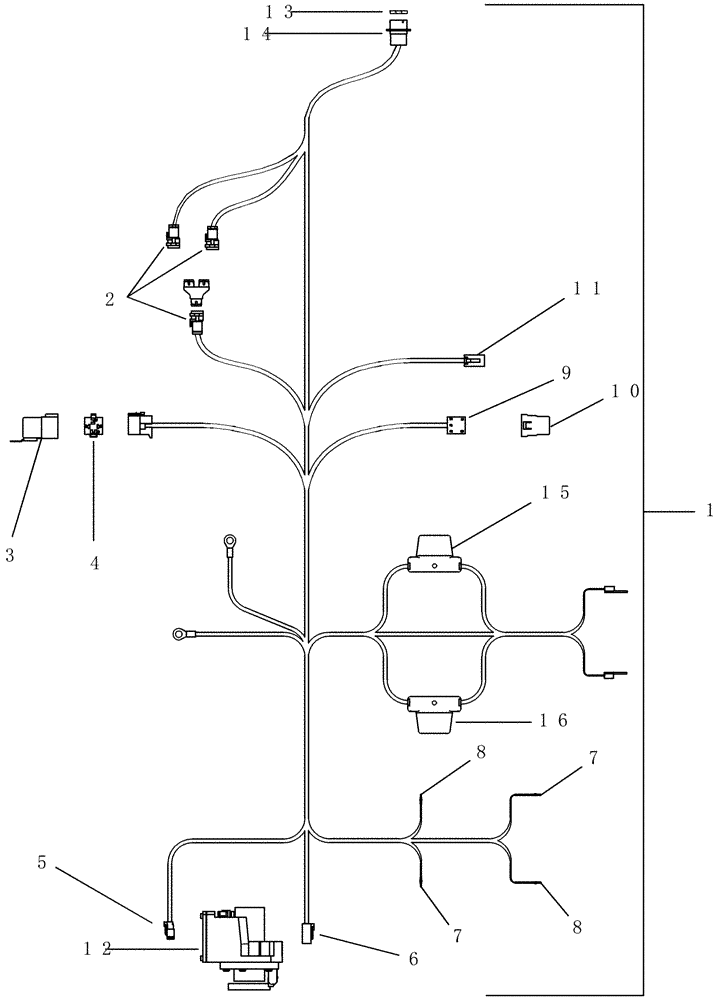

Запчасти Case IH 1200PT (A.50.A[15]) - ADVANCED FARMING SYSTEMS ADAPTER HARNESS - 344548A1 A - Distribution Systems

1

344548A1

HARNESS

MX11 MX12 MX30 tractor

1шт.

For service of internal twisted quad wire cable, order 362093A1 bulk cable.

1шт.

2

298496A1

ELEC CONNECTOR,4 Pin

ITT Cannon CLC plug 4 Pin

3шт.

3

296541A1

RELAY

80A sealed hi-ram

1шт.

4

310220A1

TERMINAL CONNECTOR

80 amp relay

1шт.

5

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

1шт.

6

86622300

ELEC CONNECTOR

4-cav Plug DT Series

1шт.

7

280386A1

ELEC CONNECTOR,Nickel, 2.0 - 3.0mm

12-14awg

2шт.

8

280384A1

ELEC. TERMINAL PIN

8-10awg

2шт.

9

297910A1

ELEC CONNECTOR,Female, 5 Pin

Packard 280 metri-pack, 5-way

1шт.

10

293256A2

RELAY,12V

12v 40 amp weatherproof

1шт.

11

86622300

ELEC CONNECTOR

4-cav Plug DT Series

1шт.

12

323597A1

MULTIPOLE CONNECTOR

implement jumper board

1шт.

13

191041A1

NUT

connector mounting - 14 shell size

1шт.

14

305677A1

CONNECTOR, ELEC

CONNECTOR Cannon Neptune standard receptacle

1шт.

15

338055A1

FUSE,30A, Maxival, Green

Slo Blo

1шт.

16

338054A1

FUSE,20A, Maxival, Yellow

Slo Blo

1шт.
