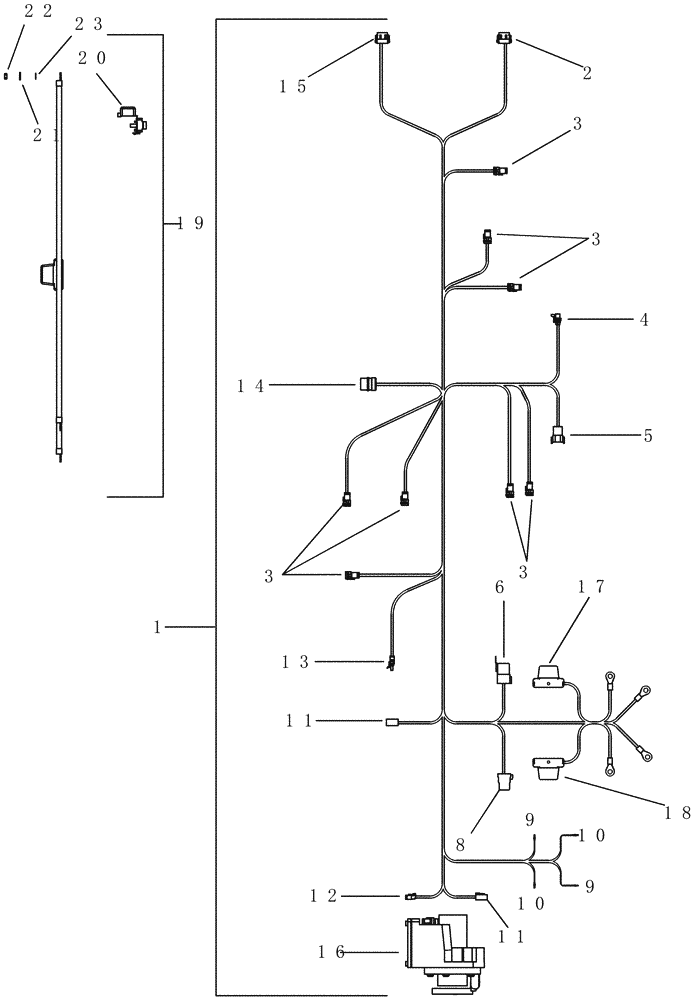

Запчасти Case IH 1200PT (A.50.A[13]) - ADVANCED FARMING SYSTEMS ADAPTER HARNESS - 328105A2, ROW CROP TRACTORS A - Distribution Systems

1

328105A2

HARNESS

MU6 tractor

1шт.

For service of internal twisted quad wire cable, order 362093A1 bulk cable.

1шт.

2

87700156

CONTACT HOUSING,Female, 12 Pole

Deutsch 12 way dtm plug, grey

1шт.

3

298496A1

ELEC CONNECTOR,4 Pin

ITT Cannon CLC plug 4 Pin

8шт.

4

182081A1

TERMINAL CONNECTOR,Female, 5 Pin

Tower 5-way Metri-pak

1шт.

5

225320C1

ELEC CONNECTOR

8-Way Tab Housing

1шт.

6

296541A1

RELAY

80A sealed hi-ram

1шт.

8

293256A2

RELAY,12V

12v 40 amp weatherproof

1шт.

9

280384A1

ELEC. TERMINAL PIN

8-10awg

2шт.

10

280386A1

ELEC CONNECTOR,Nickel, 2.0 - 3.0mm

12-14awg

2шт.

11

86622300

ELEC CONNECTOR

4-cav Plug DT Series

2шт.

12

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

1шт.

13

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

14

310057A1

ELEC CONNECTOR,Male, 9 Pin

Deutsch HD10 series Receptacle

1шт.

15

223679A1

MULTIPOLE CONNECTOR,Female, 12 Pin

Deutsch 12-Way DTM Plug, Black

1шт.

16

323597A1

MULTIPOLE CONNECTOR

implement jumper board

1шт.

17

338054A1

FUSE,20A, Maxival, Yellow

Slo Blo

1шт.

18

338055A1

FUSE,30A, Maxival, Green

Slo Blo

1шт.

19

388328A1

HARNESS

tractor extension, AFS

1шт.

20

389009A1

CONNECTOR, ELEC

CONNECTOR Packard mega fuse

1шт.

21

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

22

43362

NUT,M8 x 1.25, Cl 10

2шт.

23

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

2шт.
