(A.50.A[10]) - ELECTRICAL HARNESS 398135A1

Запчасти Case IH 1200PT (A.50.A[10]) - ELECTRICAL HARNESS 398135A1 A - Distribution Systems

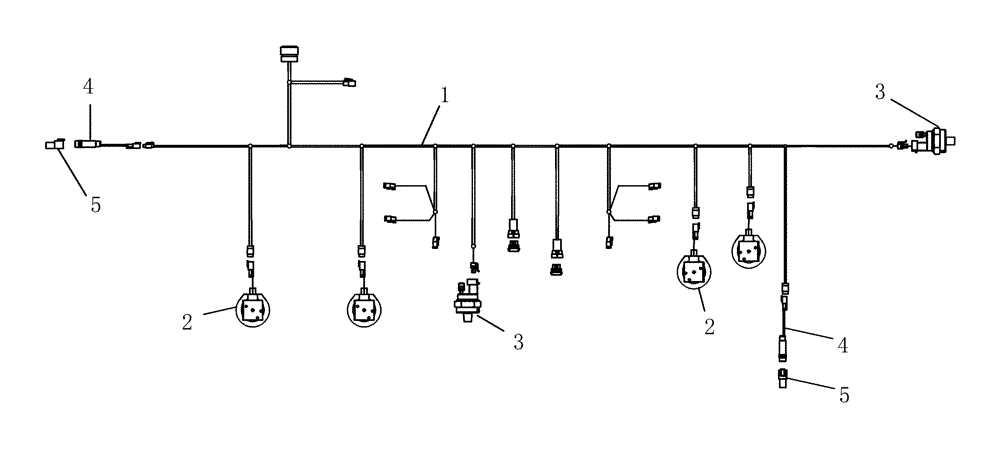

Схема запчастей Case IH 1200PT - (A.50.A[10]) - ELECTRICAL HARNESS 398135A1 A - Distribution Systems
2
3
5
4
3
2
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

398135A1

WIRE HARNESS

toolbar 4 sections

1шт.

12/23 row and 16/31 row planters

1шт.

2

296164A2

SENSOR

application rate

4шт.

3

404625A1

SENSOR

vacuum, Years: -01-MAY-07

2шт.

3

87539925

SENSOR

vacuum assembly, Start Year: 01-JUN-07

2шт.

4

404197A1

SENSOR

bin level

2шт.

5

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

2шт.
