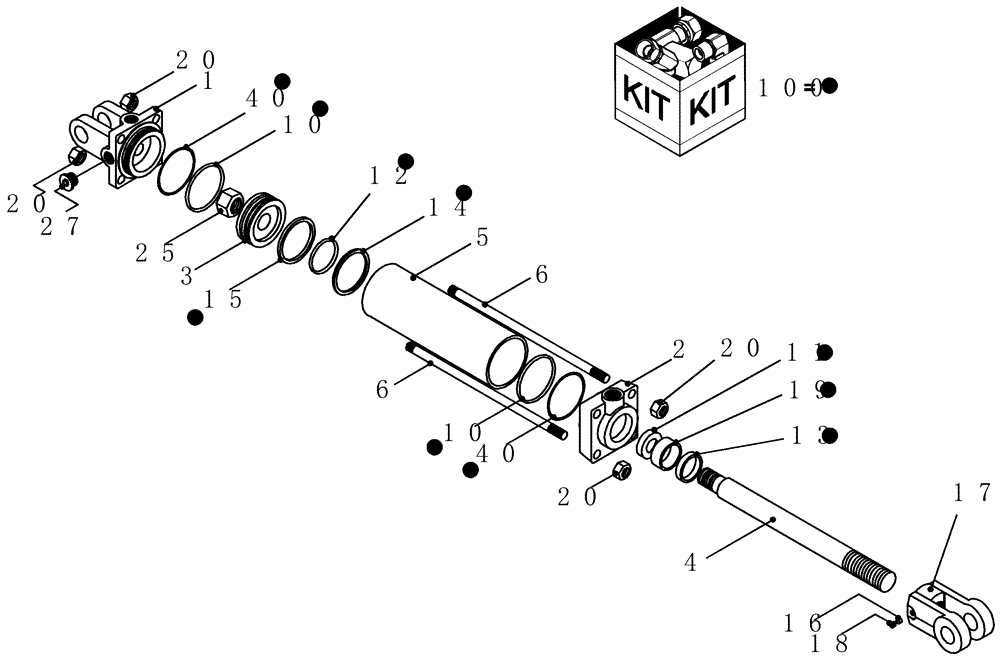

Запчасти Case IH 1200 (A.10.A[91]) - HYDRAULIC CYLINDER - 86989791, FRAME FOLDING - 12 ROW WIDE MOUNTED STACKER A - Distribution Systems

0

86989791

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 609.6mm Stroke

5" x 24", double acting, Start Year: 01-AUG-02

1шт.

1

87409428

HEAD

cylinder base 5" bore; 2, 3/4"-16 orb ports

1шт.

2

87409416

HEAD

cylinder front 5" bore x 2" rod

1шт.

3

87409467

PISTON

cylinder, 5" bore Monarch #494760

1шт.

4

87409463

PISTON ROD

1шт.

5

NSS

NOT SOLD SEPARAT

tube, cylinder

1шт.

6

87409494

THREADED TIE-ROD

Monarch* 3/4"-10 x 24"

4шт.

10

NSS

NOT SOLD SEPARAT

o-ring

2шт.

Included in repair kit 87403963

1шт.

11

NSS

NOT SOLD SEPARAT

u-cup rod seal

1шт.

Included in repair kit 87403963

1шт.

12

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 87403963

1шт.

13

NSS

NOT SOLD SEPARAT

wiper, rod

1шт.

Included in repair kit 87403963

1шт.

14

NSS

NOT SOLD SEPARAT

seal, PTFE

1шт.

Included in repair kit 87403963

1шт.

15

NSS

NOT SOLD SEPARAT

ring wear

1шт.

Included in repair kit 87403963

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409389

CLEVIS,1 -1/2" - 12

cylinder rod

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

ring wear

1шт.

Included in repair kit 87403963

1шт.

20

80001689

NUT

3/4"-16, G5

8шт.

25

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

o-ring backup

2шт.

Included in repair kit 87403963

1шт.

100

87403963

SEAL KIT

hyd cylinder 5" Monarch with 2" rod

1шт.
