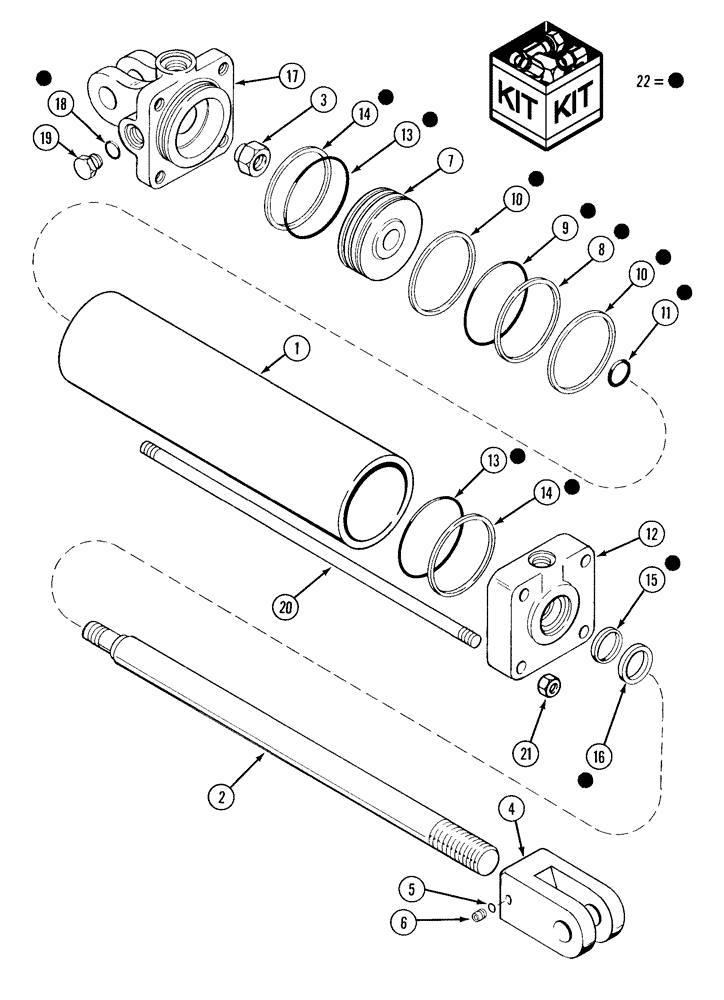

Запчасти Case IH 1200 (A.10.A[90]) - HYDRAULIC CYLINDER - 324548A1, FRAME FOLDING - 12 ROW WIDE MOUNTED STACKER A - Distribution Systems

0

324548A1

CYLINDER

5" x 24", Years: -31-JUL-02

1шт.

1

NSS

NOT SOLD SEPARAT

tube, cylinder

1шт.

2

326516A1

PISTON ROD

1шт.

3

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

4

1923619C1

CLEVIS

hyd cylinder

1шт.

5

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

7

1978009C1

PISTON

1шт.

8

NSS

NOT SOLD SEPARAT

seal Piston

1шт.

Included in repair kit 255442A1

1шт.

9

NSS

NOT SOLD SEPARAT

o-ring, Piston

1шт.

Included in repair kit 255442A1

1шт.

10

NSS

NOT SOLD SEPARAT

ring Wear, Piston

2шт.

Included in repair kit 255442A1

1шт.

11

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 255442A1

1шт.

12

92857C1

HEAD (CYLINDER)

front

1шт.

13

NSS

NOT SOLD SEPARAT

o-ring

2шт.

Included in repair kit 255442A1

1шт.

14

NSS

NOT SOLD SEPARAT

ring backup

2шт.

Included in repair kit 255442A1

1шт.

15

NSS

NOT SOLD SEPARAT

u-cup

1шт.

Included in repair kit 255442A1

1шт.

16

NSS

NOT SOLD SEPARAT

wiper

1шт.

Included in repair kit 255442A1

1шт.

17

1286381C1

HEAD

rear

1шт.

18

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 255442A1

1шт.

19

214389

PLUG,3/4" - 16 ORB

1шт.

20

326515A1

PISTON ROD

cylinder tie

4шт.

21

280954

NUT,3/4"-10, G5

4шт.

22

255442A1

SEAL KIT

seal

1шт.
