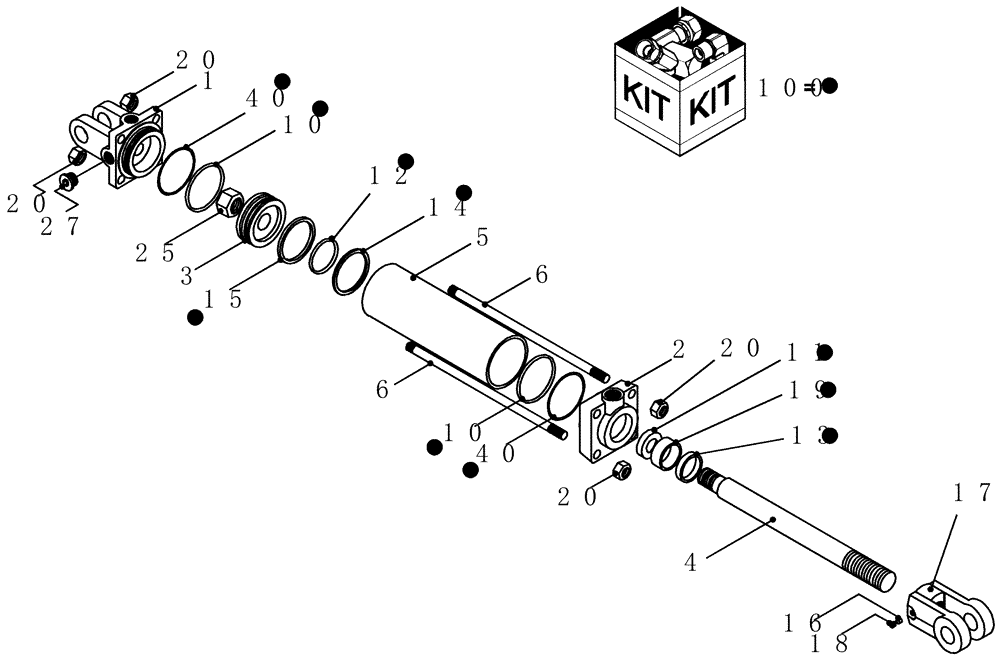

Запчасти Case IH 1200 (A.10.A[89]) - HYDRAULIC CYLINDER - 86989790, FRAME FOLDING - 8 ROW WIDE AND 12 ROW NARROW MOUNTED STACKER A - Distribution Systems

0

86989790

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

4" x 24", double acting, Start Year: 26-JUL-03

1шт.

1

87409432

HEAD

cylinder base 4" bore, 2, 3/4"-16 orb

1шт.

2

87409392

HEAD

cylinder front 4" bore x 1 1/2" rod

1шт.

3

87409472

PISTON

cylinder 4" bore

1шт.

4

87409462

PISTON ROD

1шт.

5

NSS

NOT SOLD SEPARAT

tube, cylinder

1шт.

6

87409493

BOLT

cylinder tie rod 4" x 24"

4шт.

10

NSS

NOT SOLD SEPARAT

o-ring

2шт.

Included in repair kit 87403962

1шт.

11

NSS

NOT SOLD SEPARAT

u-cup rod seal

1шт.

Included in repair kit 87403962

1шт.

12

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 87403962

1шт.

13

NSS

NOT SOLD SEPARAT

wiper, rod

1шт.

Included in repair kit 87403962

1шт.

14

NSS

NOT SOLD SEPARAT

seal, PTFE

1шт.

Included in repair kit 87403962

1шт.

15

NSS

NOT SOLD SEPARAT

ring wear

1шт.

Included in repair kit 87403962

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409391

CLEVIS,1 -1/2" - 12

cylinder, 1" pin, 1 1/2"-12, Monarch #493168

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

ring wear

1шт.

Included in repair kit 87403962

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

o-ring backup

2шт.

Included in repair kit 87403962

1шт.

100

87403962

SEAL KIT

hyd cylinder, 4" Monarch with 1 1/2" rod

1шт.
