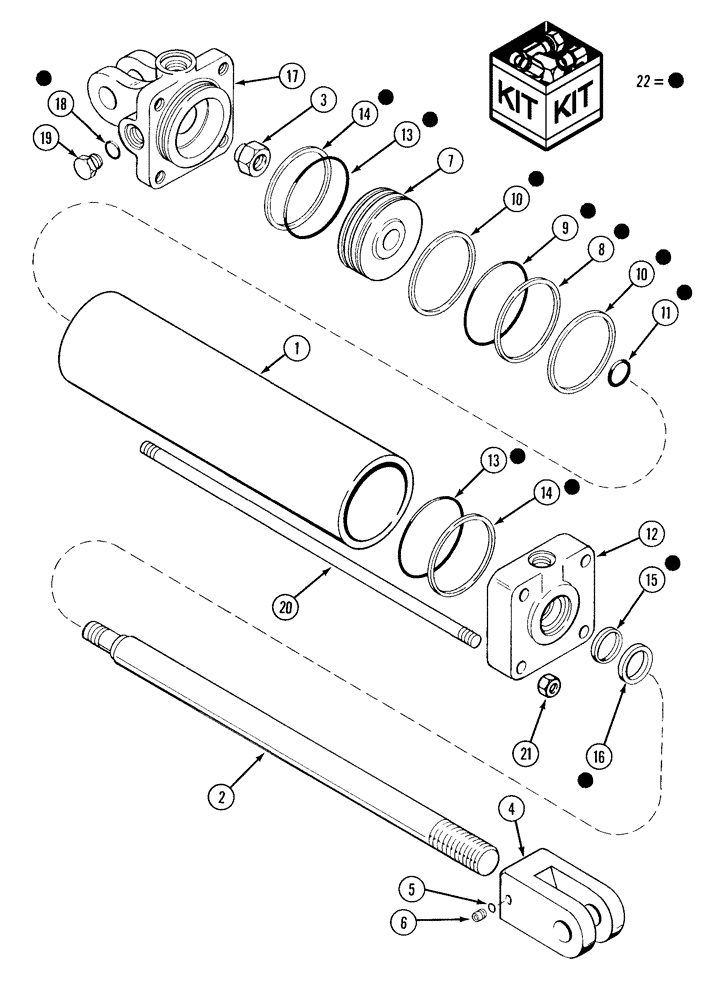

Запчасти Case IH 1200 (A.10.A[88]) - HYDRAULIC CYLINDER - 302286A1, FRAME FOLDING - 8 ROW WIDE AND 12 ROW NARROW MOUNTED STACKER A - Distribution Systems

0

302286A1

CYLINDER

4" x 24", Years: -25-JUL-03

1шт.

1

NSS

NOT SOLD SEPARAT

tube, cylinder

1шт.

2

302754A1

ROD

piston

1шт.

3

281010

LOCK NUT,7/8"-14, GC

1шт.

4

1923729C1

CLEVIS

hyd cylinder

1шт.

5

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

6

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

7

92521C1

PISTON

hyd cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

seal, Piston

1шт.

Included in repair kit 79979C3

1шт.

9

NSS

NOT SOLD SEPARAT

o-ring, Piston

1шт.

Included in repair kit 79979C3

1шт.

10

NSS

NOT SOLD SEPARAT

ring Wear

1шт.

Included in repair kit 79979C3

1шт.

11

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 79979C3

1шт.

12

1282337C1

GLAND

4" Iowa

1шт.

13

NSS

NOT SOLD SEPARAT

o-ring

2шт.

Included in repair kit 79979C3

1шт.

14

NSS

NOT SOLD SEPARAT

ring Backup

2шт.

Included in repair kit 79979C3

1шт.

15

NSS

NOT SOLD SEPARAT

u-cup

1шт.

Included in repair kit 79979C3

1шт.

16

NSS

NOT SOLD SEPARAT

wiper

1шт.

Included in repair kit 79979C3

1шт.

17

1272919C1

CYLINDER HEAD

rear

1шт.

18

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 79979C3

1шт.

19

214389

PLUG,3/4" - 16 ORB

1шт.

20

1260831C1

TIE-ROD,5/8" - 11 x 736mm

hyd cylinder tie

4шт.

21

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

22

79979C3

SEAL KIT

cylinder repair

1шт.
