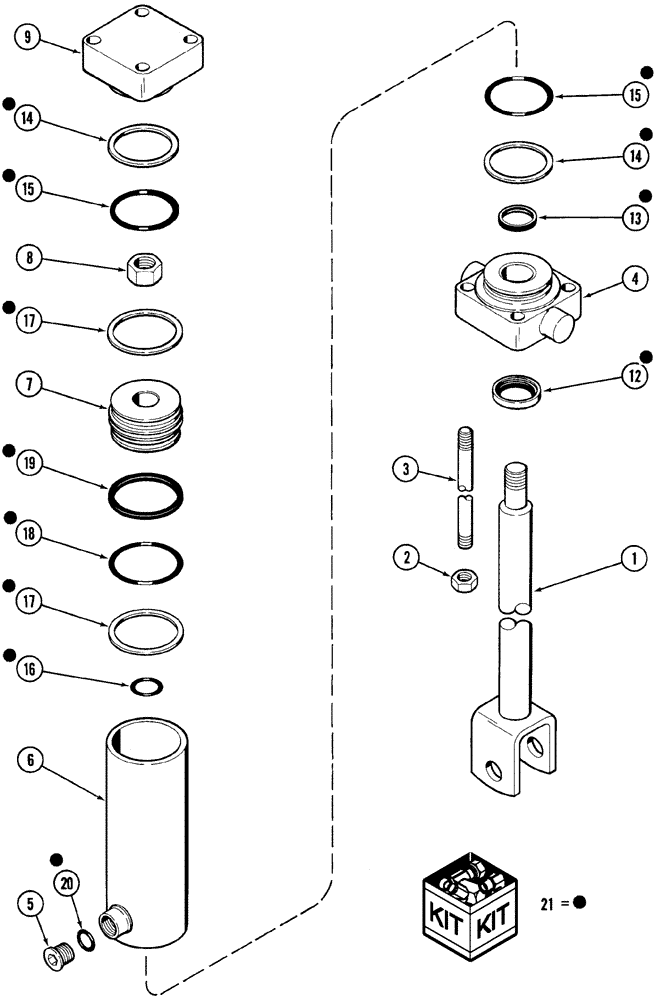

Запчасти Case IH 1200 (A.10.A[86]) - HYDRAULIC CYLINDER - 414704A1, DRIVE/CARRYING WHEEL - MASTER, 6 AND 8 ROW RIGID TRAILING A - Distribution Systems

0

414704A1

HYDRAULIC CYLINDER

3 1/4" x 8" 3000 psi without pins, Years: 07-JUL-01-24-NOV-03, Serial Range: -CBJ0018553

1шт.

1

93341C1

SHAFT ASSY.

hyd cylinder

1шт.

2

280431

NUT,1/2"-13, G5

4шт.

3

93343C1

SHAFT

tie, cylinder

4шт.

4

93342C1

HEAD

cylinder, front

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

6

NSS

NOT SOLD SEPARAT

body Cylinder, Order Assembly

1шт.

7

92519C1

PISTON

1шт.

8

281010

LOCK NUT,7/8"-14, GC

1шт.

9

93340C1

BOTTOM

head, hyd cylinder, rear

1шт.

12

NSS

NOT SOLD SEPARAT

wiper, Rod

1шт.

Included in repair kit 80116C2

1шт.

13

NSS

NOT SOLD SEPARAT

seal, Rod

1шт.

Included in repair kit 80116C2

1шт.

14

NSS

NOT SOLD SEPARAT

ring Backup

2шт.

Included in repair kit 80116C2

1шт.

15

NSS

NOT SOLD SEPARAT

o-ring, Cylinder Head

2шт.

Included in repair kit 80116C2

1шт.

16

NSS

NOT SOLD SEPARAT

o-ring, Piston Rod

1шт.

Included in repair kit 80116C2

1шт.

17

NSS

NOT SOLD SEPARAT

ring Wear, Piston

2шт.

Included in repair kit 80116C2

1шт.

18

NSS

NOT SOLD SEPARAT

o-ring, Piston

1шт.

Included in repair kit 80116C2

1шт.

19

NSS

NOT SOLD SEPARAT

seal Piston

1шт.

Included in repair kit 80116C2

1шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Included in repair kit 80116C2

1шт.

21

80116C2

GASKET KIT

o-ring and seal

1шт.

Some O-rings in kit are not used in this application

1шт.
