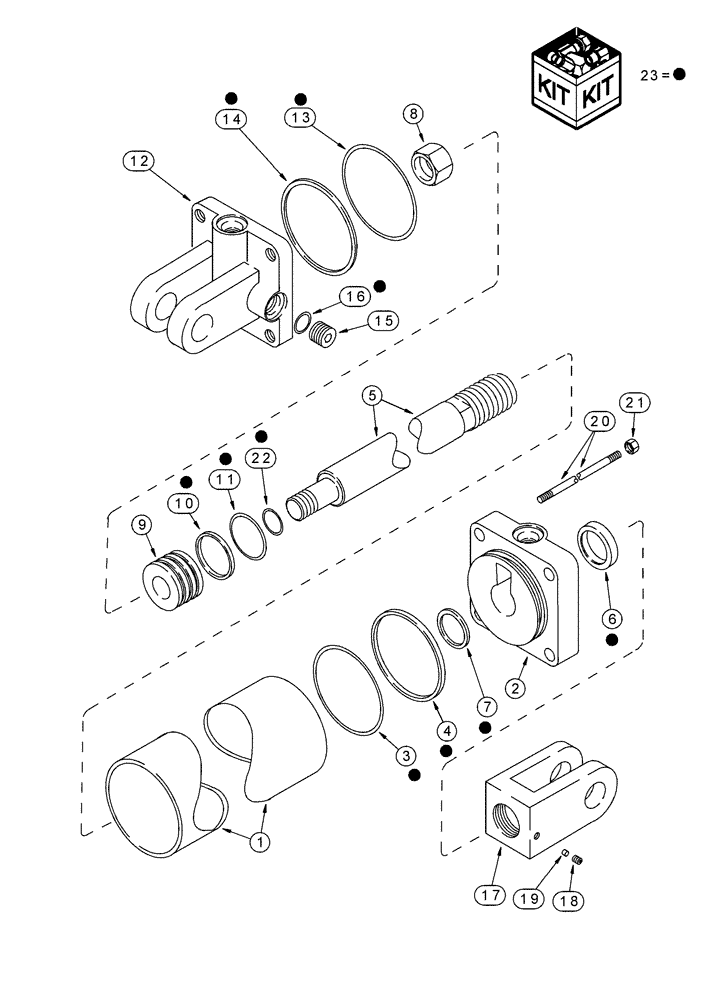

Запчасти Case IH 1200 (A.10.A[81]) - HYDRAULIC CYLINDER - 1272147C92, ASSIST WHEEL, RIGID MOUNTED MACHINES - DISCONTINUED A - Distribution Systems

0

1272147C92

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/2" x 8" tongue

1шт.

1

NSS

NOT SOLD SEPARAT

tube, Cylinder

1шт.

2

1272826C1

HEAD

hyd cylinder front

1шт.

3

NSS

NOT SOLD SEPARAT

o-ring, 3-1/4 ID x 3-1/2 inch O.D., Gland

1шт.

Included in repair kit 84919C2

1шт.

4

NSS

NOT SOLD SEPARAT

ring Backup, Gland

1шт.

Included in repair kit 84919C2

1шт.

5

145231C1

PISTON ROD

hyd cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

wiper, Piston Rod

1шт.

Included in repair kit 84919C2

1шт.

7

NSS

NOT SOLD SEPARAT

seal Piston Rod

1шт.

Included in repair kit 84919C2

1шт.

8

281010

LOCK NUT,7/8"-14, GC

1шт.

9

145422C2

PISTON

hyd cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

seal Piston

1шт.

Included in repair kit 84919C2

1шт.

11

NSS

NOT SOLD SEPARAT

o-ring, Backup, Piston Seal, 3" id x 3 3/16" od

1шт.

Included in repair kit 84919C2

1шт.

12

1272825C1

HEAD

hyd cylinder rear with 2 ports

1шт.

13

NSS

NOT SOLD SEPARAT

o-ring, Cylinder Head, 3 1/4" id x 3 1/2" od

1шт.

Included in repair kit 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

ring Backup, Cylinder Head

1шт.

Included in repair kit 84919C2

1шт.

15

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

16

NSS

NOT SOLD SEPARAT

o-ring, Plug

1шт.

Included in repair kit 84919C2

1шт.

17

145233C1

CLEVIS,1/4" - 12

end, rod

1шт.

18

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

20

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

TIE ROD bolt, hyd cylinder

4шт.

21

280431

NUT,1/2"-13, G5

4шт.

22

NSS

NOT SOLD SEPARAT

o-ring, Piston Rod

1шт.

Included in repair kit 84919C2

1шт.

23

84919C2

GASKET KIT

hyd cylinder o-ring & seal service

1шт.
