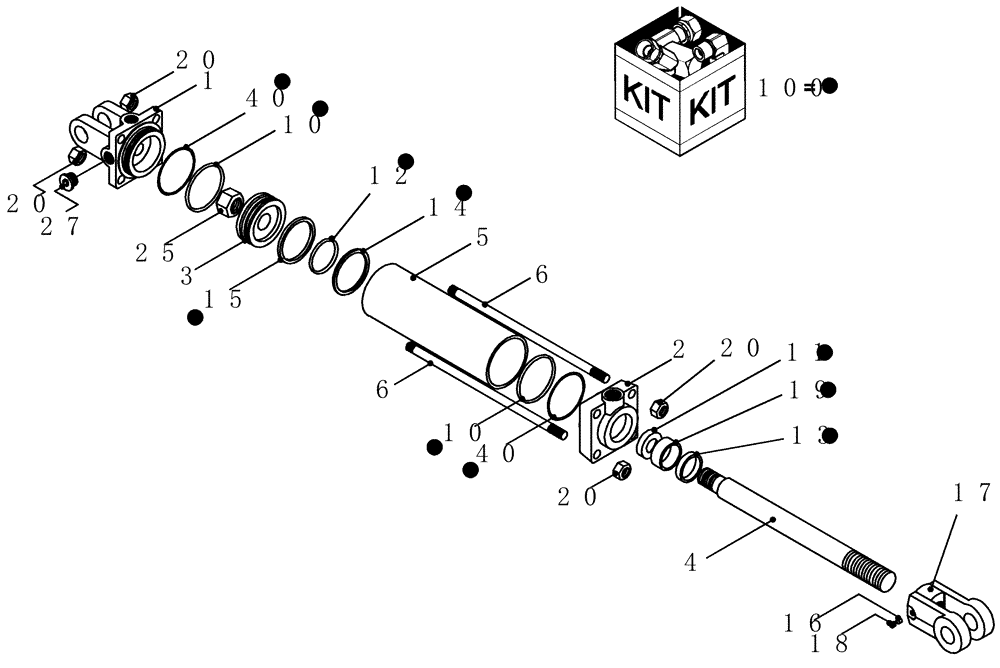

Запчасти Case IH 1200 (A.10.A[79]) - HYDRAULIC CYLINDER - 86989788, LIFT ASSIST - RIGID MOUNTED MACHINES A - Distribution Systems

0

86989788

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/2" x 8", 3000 psi, no pins, Start Year: 14-SEP-03

1шт.

1

87409430

HEAD

cylinder base 3 1/2" bore

1шт.

2

87409395

HEAD

cylinder front 3 1/2" bore x 1 1/4" rod

1шт.

3

87409481

PISTON

cylinder 3 1/2" bore Monarch #494738

1шт.

4

87409460

PISTON ROD

1шт.

5

NSS

NOT SOLD SEPARAT

tube, Cylinder

1шт.

6

87409491

THREADED TIE-ROD

3/4"-16 x 13 1/16"

4шт.

10

NSS

NOT SOLD SEPARAT

o-ring

2шт.

Included in repair kit 87409038

1шт.

11

NSS

NOT SOLD SEPARAT

u-cup rod seal

1шт.

Included in repair kit 87409038

1шт.

12

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 87409038

1шт.

13

NSS

NOT SOLD SEPARAT

rod wiper

1шт.

Included in repair kit 87409038

1шт.

14

NSS

NOT SOLD SEPARAT

seal, PTFE

1шт.

Included in repair kit 87409038

1шт.

15

NSS

NOT SOLD SEPARAT

ring Wear

1шт.

Included in repair kit 87409038

1шт.

16

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

o-ring backup

2шт.

Included in repair kit 87409038

1шт.

100

87409038

SEAL KIT

hyd cylinder 3 1/2" Monarch with 1 1/4" rod

1шт.
