Запчасти Case IH 1200 (A.10.A[77]) - HYDRAULIC CYLINDER - 251954A2, LIFT ASSIST - RIGID MOUNTED MACHINES A - Distribution Systems

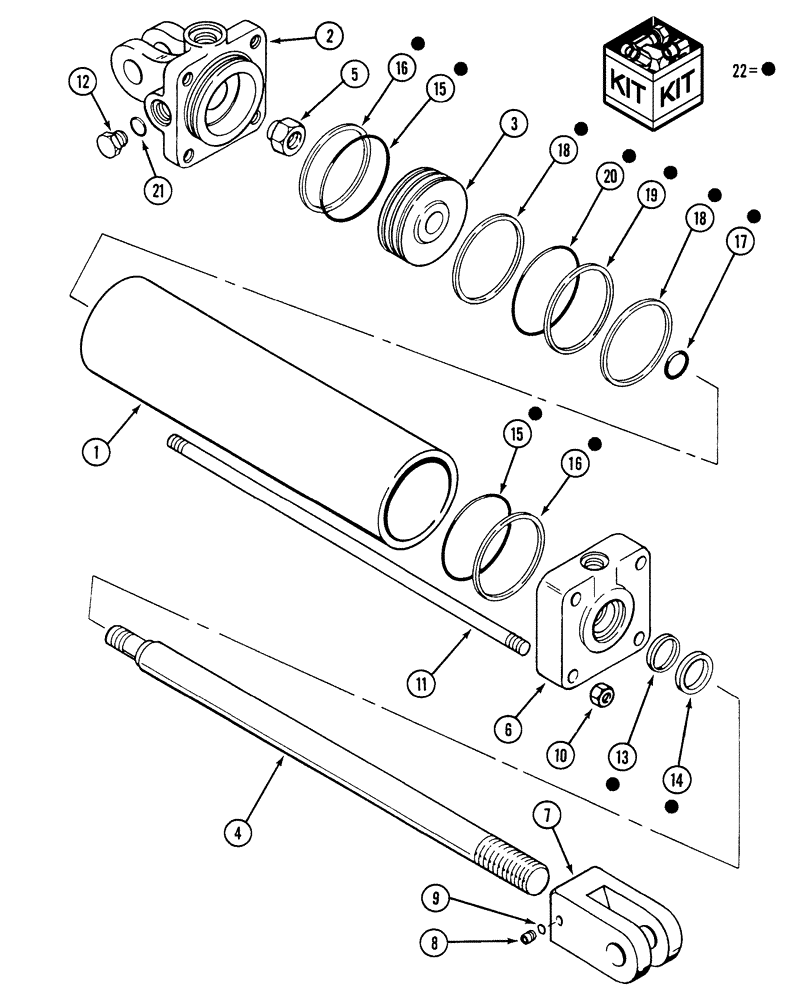

Схема запчастей Case IH 1200 - (A.10.A[77]) - HYDRAULIC CYLINDER - 251954A2, LIFT ASSIST - RIGID MOUNTED MACHINES A - Distribution Systems
11
7
10
1
18
3
5
12
8
6
18
15
16
22
17
4
16
14
20
13
19
21
2
9
15

Артикул

Название

Примечание

Количество

0

251954A2

HYDRAULIC CYLINDER

3 1/2" x 8", Years: -06-JUL-01

1шт.

1

NSS

NOT SOLD SEPARAT

tube, Cylinder

1шт.

2

1272825C1

HEAD

hyd cylinder rear with 2 ports

1шт.

3

85179C1

PISTON

1шт.

4

251957A1

ROD

piston

1шт.

5

281010

LOCK NUT,7/8"-14, GC

1шт.

6

300589A1

HEAD

hyd cylinder front

1шт.

7

145233C1

CLEVIS,1/4" - 12

end, rod

1шт.

8

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

10

280431

NUT,1/2"-13, G5

4шт.

11

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

TIE ROD bolt, hyd cylinder

4шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

13

NSS

NOT SOLD SEPARAT

u-cup

1шт.

Included in repair kit 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

wiper

1шт.

Included in repair kit 84919C2

1шт.

15

NSS

NOT SOLD SEPARAT

o-ring

2шт.

Included in repair kit 84919C2

1шт.

16

NSS

NOT SOLD SEPARAT

back up

2шт.

Included in repair kit 84919C2

1шт.

17

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 84919C2

1шт.

18

NSS

NOT SOLD SEPARAT

ring Wear

2шт.

Included in repair kit 84919C2

1шт.

19

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 84919C2

1шт.

20

NSS

NOT SOLD SEPARAT

seal Piston

1шт.

Included in repair kit 84919C2

1шт.

21

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 84919C2

1шт.

22

84919C2

GASKET KIT

hyd cylinder o-ring & seal service

1шт.

Выбрано товаров: 32
