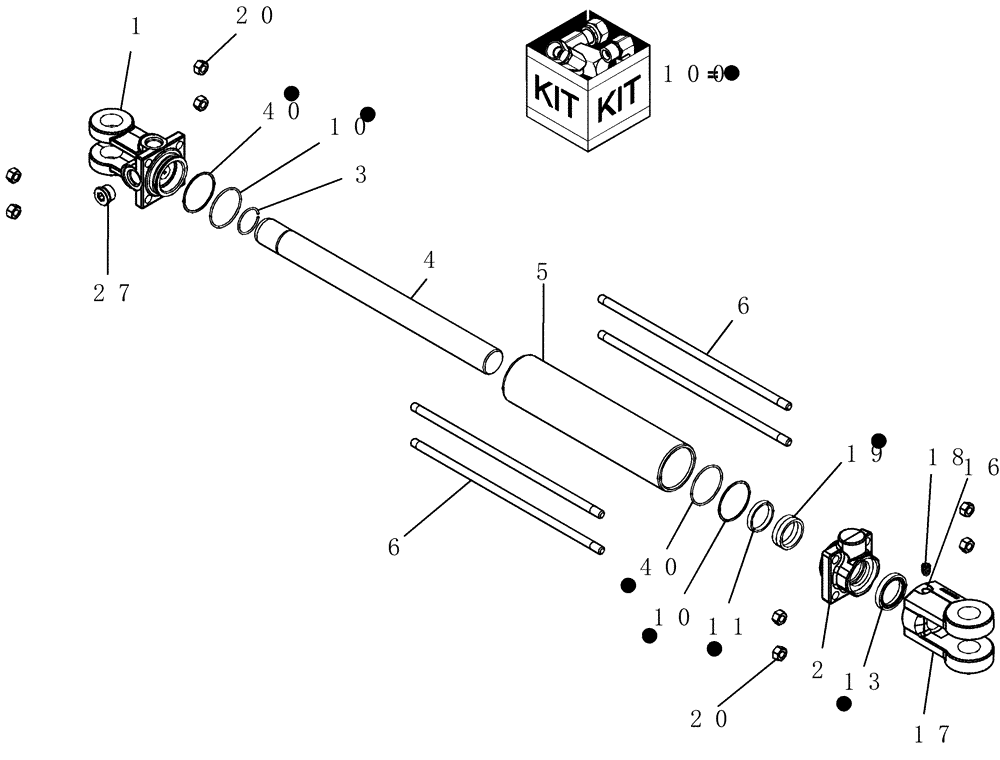

Запчасти Case IH 1200 (A.10.A[74]) - HYDRAULIC CYLINDER - 86989787, ROW MARKER, 6 ROW RIGID TRAILING A - Distribution Systems

0

86989787

HYDRAULIC CYLINDER

2" x 8", 3000 psi, single acting, no pins, Start Year: 15-JUN-03, Start Serial: CBJ0018023

1шт.

1

87409443

HEAD

cylinder base 2" bore

1шт.

2

87409415

HEAD

cylinder front 2" bore x 1 1/4" rod

1шт.

When either of the piston rod (P/N 87409459) or the cylinder head (P/N 87409415) need to be replaced, both the new piston rod (P/N 87500932) and the new cylinder head (P/N 87500931). This is to ensure proper fit and seal.

1шт.

2a

87500931

CYLINDER END CAP

front 2" bore x 1 1/4" rod

1шт.

2b

87500932

PISTON ROD

1шт.

3

87409499

RING

retaining, hyd cylinder

1шт.

4

87409459

PISTON ROD

1шт.

When either of the piston rod (P/N 87409459) or the cylinder head (P/N 87409415) need to be replaced, both the new piston rod (P/N 87500932) and the new cylinder head (P/N 87500931). This is to ensure proper fit and seal.

1шт.

4a

87500931

CYLINDER END CAP

front 2" bore x 1 1/4" rod

1шт.

4b

87500932

PISTON ROD

1шт.

5

NSS

NOT SOLD SEPARAT

tube, Cylinder

1шт.

6

87409488

THREADED TIE-ROD

3/8"-16

4шт.

10

NSS

NOT SOLD SEPARAT

o-ring

2шт.

Included in repair kit 87409034

1шт.

11

NSS

NOT SOLD SEPARAT

u-cup rod seal

1шт.

Included in repair kit 87409034

1шт.

13

NSS

NOT SOLD SEPARAT

rod wiper

1шт.

Included in repair kit 87409034

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

19

NSS

NOT SOLD SEPARAT

ring Wear

2шт.

Included in repair kit 87409034

1шт.

20

9628503

NUT,3/8"-16, G5

8шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

40

NSS

NOT SOLD SEPARAT

o-ring backup

2шт.

Included in repair kit 87409034

1шт.

100

87409034

SEAL KIT

hyd cylinder 2" Monarch with 1 1/4" rod

1шт.
