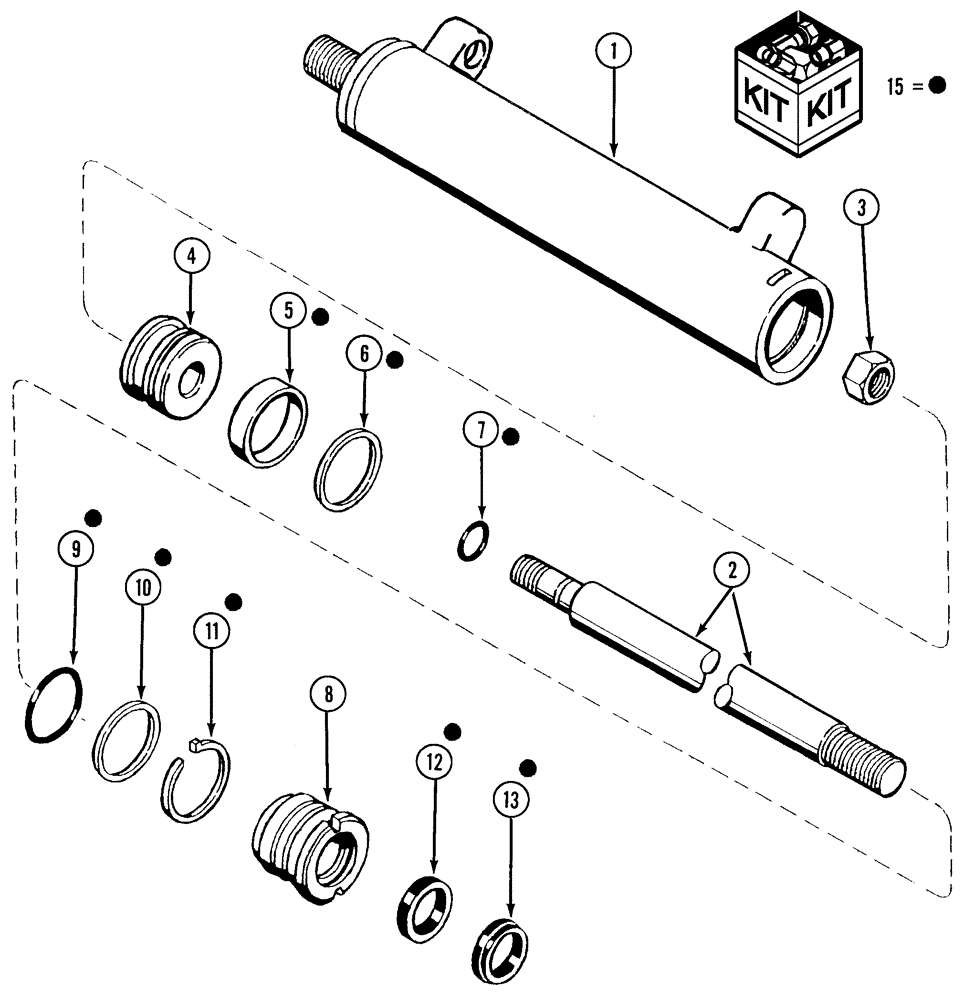

Запчасти Case IH 1200 (A.10.A[66]) - HYDRAULIC CYLINDER - 414710A1 AND 87501758, ROW MARKER, 12 ROW WIDE MOUNTED STACKER A - Distribution Systems

0

414710A1

STEERING CYLINDER

2 1/2" x 18", Years: -31-OCT-01

1шт.

0

87501758

HYDRAULIC CYLINDER

1394 marker 2 1/2" x 18", Start Year: 01-NOV-01

1шт.

1

NSS

NOT SOLD SEPARAT

tube Cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

rod Cylinder Piston

1шт.

3

NSS

NOT SOLD SEPARAT

locknut, 3/4 NC

1шт.

4

NSS

NOT SOLD SEPARAT

piston Cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

ring Bearing

1шт.

Included in repair kit 357160A1

1шт.

6

NSS

NOT SOLD SEPARAT

seal Piston, Crown

1шт.

Included in repair kit 357160A1

1шт.

7

NSS

NOT SOLD SEPARAT

o-ring, Piston Rod

1шт.

Included in repair kit 357160A1

1шт.

8

NSS

NOT SOLD SEPARAT

gland, Piston Rod

1шт.

9

NSS

NOT SOLD SEPARAT

o-ring

1шт.

Included in repair kit 357160A1

1шт.

10

NSS

NOT SOLD SEPARAT

washer Backup

1шт.

Included in repair kit 357160A1

1шт.

11

NSS

NOT SOLD SEPARAT

ring Retaining, Square

1шт.

Included in repair kit 357160A1

1шт.

12

NSS

NOT SOLD SEPARAT

u-cup

1шт.

Included in repair kit 357160A1

1шт.

13

NSS

NOT SOLD SEPARAT

wiper

1шт.

Included in repair kit 357160A1

1шт.

14

NSS

NOT SOLD SEPARAT

wire Lock

1шт.

Included in repair kit 357160A1

1шт.

Not Shown

1шт.

15

357160A1

SEAL KIT

seal, for 87501758

1шт.
