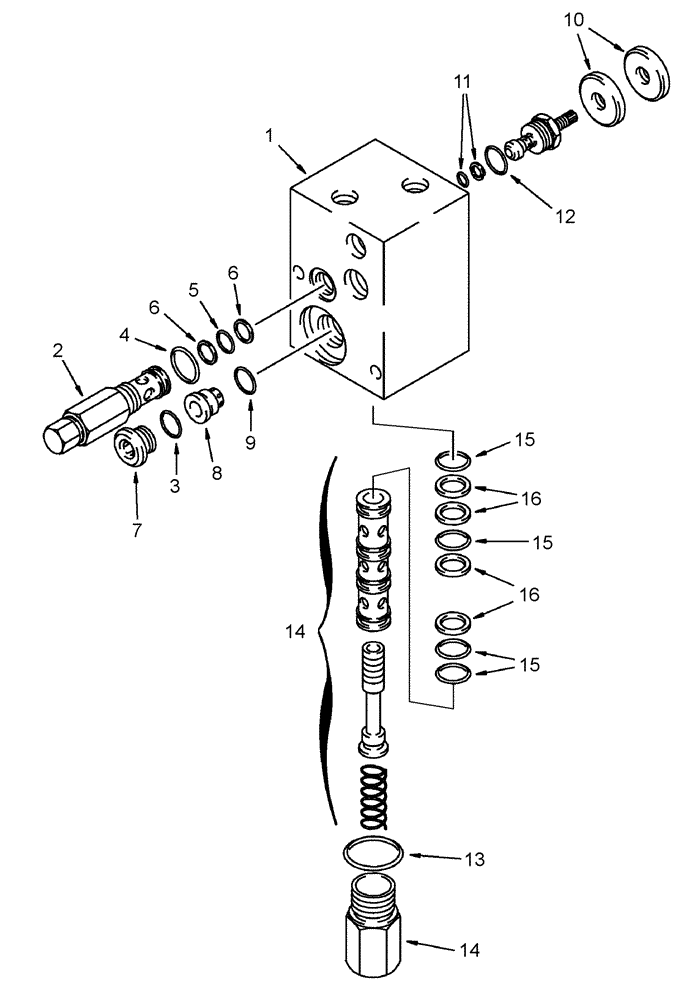

Запчасти Case IH 1200 (A.10.A[58]) - FLOW CONTROL VALVE - 115885A1, 6 & 8 ROW RIGID TRAILING A - Distribution Systems

0

115885A1

VALVE

hydraulic flow control

1шт.

1

NSS

NOT SOLD SEPARAT

body, Flow Control Valve

1шт.

2

352938A1

CARTRIDGE

valve flow control relief

1шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4-6

87558142

SEAL KIT

relief valve

1шт.

4

NSS

NOT SOLD SEPARAT

o-ring, Body, Large

1шт.

Included in kit 87558142

1шт.

5

NSS

NOT SOLD SEPARAT

o-ring, Body, Small

1шт.

Included in kit 87558142

1шт.

6

NSS

NOT SOLD SEPARAT

ring Backup, Small O-Ring

2шт.

Included in kit 87558142

1шт.

7

86625138

PLUG,7/18" - 14

1шт.

8

140271A1

VALVE

check cartridge

1шт.

Includes O-ring

1шт.

9

140280A1

O-RING KIT

kit, Danfoss check

1шт.

10

140278A1

KIT

Danfoss handknob

1шт.

11-16

140279A1

O-RING KIT

Danfoss relief o-rings

1шт.

11

NSS

NOT SOLD SEPARAT

body, Flow Control Adjustment

1шт.

Included in repair kit 140279A1

1шт.

12

NSS

NOT SOLD SEPARAT

o-ring, Flow Control Adjustment Body

1шт.

Included in repair kit 140279A1

1шт.

13

NSS

NOT SOLD SEPARAT

o-ring, Flow Regulator Valve Body

1шт.

Included in repair kit 140279A1

1шт.

14

NSS

NOT SOLD SEPARAT

valve, Flow Regulator

1шт.

Included in repair kit 140279A1

1шт.

15

NSS

NOT SOLD SEPARAT

o-ring, Flow Regulator Valve Spool

4шт.

Included in repair kit 140279A1

1шт.

16

NSS

NOT SOLD SEPARAT

o-ring, Backup, Valve Spool

4шт.

Included in repair kit 140279A1

1шт.
