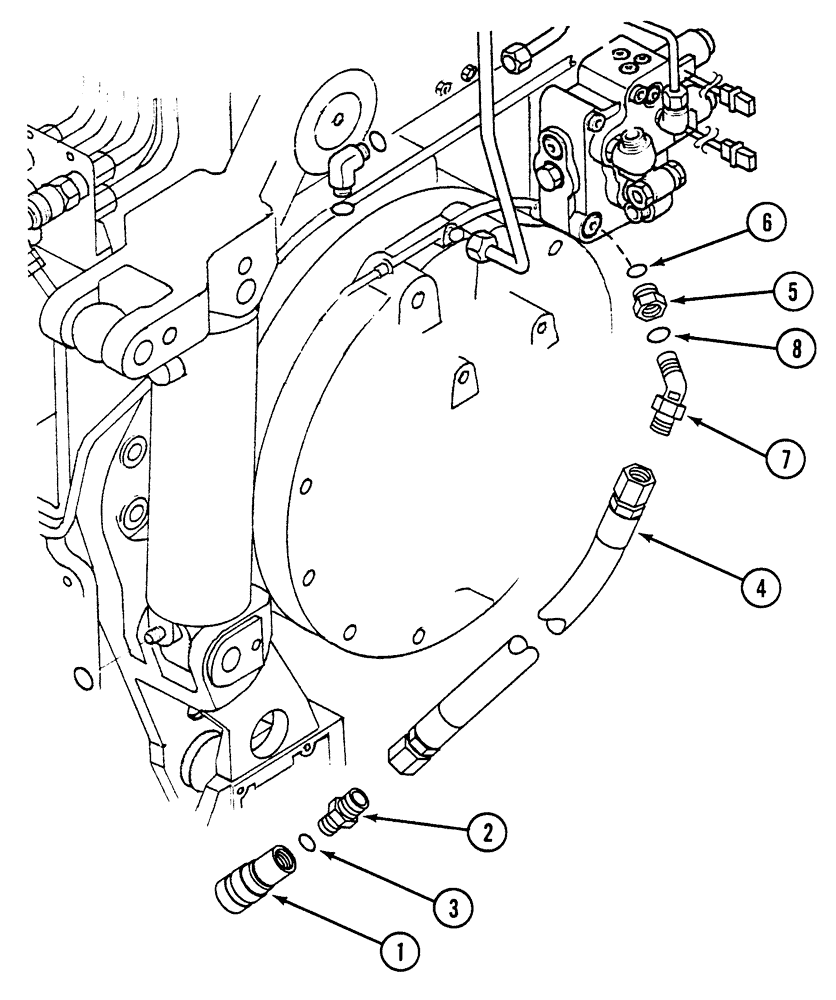

Запчасти Case IH 1200 (A.10.A[50]) - MOTOR CASE DRAIN ATTACHMENT KIT, MX100 - MX170 MAXXUM TRACTORS A - Distribution Systems

0

367013A1

KIT

motor case drain - MX Maxxum

1шт.

1

187563C1

COUPLING, QUICK, FEM

9/16"-18

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

Includes O-ring

1шт.

2

86624009

HYD CONNECTOR,9/16"-18, 37 Degree x 1 1/16"-12, O-Ring

1шт.

Includes O-ring

1шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

91163C1

HYDRAULIC HOSE,9.65mm ID x 1193.8mm L, SAE 100R1

1шт.

5

86624012

HYD CONNECTOR

fitting, 3/4 male x 3/8 fem SAE o-ring

1шт.

Includes O-ring

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

Includes O-ring

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
