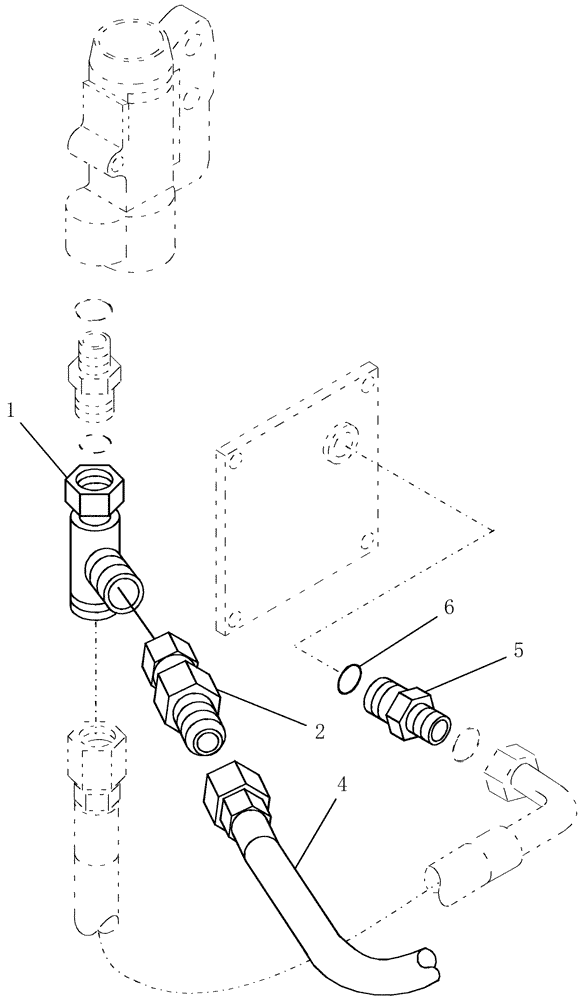

Запчасти Case IH 1200 (A.10.A[48]) - MOTOR CASE DRAIN ATTACHMENT KIT, 7100, 7200 AND 8900 SERIES MAGNUM TRACTORS A - Distribution Systems

0

367010A1

KIT

motor case drain - Magnum

1шт.

1

9843615

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

1шт.

2

201-170

ADAPTER,9/16"-18 Male x 13/16"-16 Fem Sw, 37 Degree

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Not Shown

1шт.

4

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8" x 55" fl

1шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

187563C1

COUPLING, QUICK, FEM

9/16"-18

1шт.
