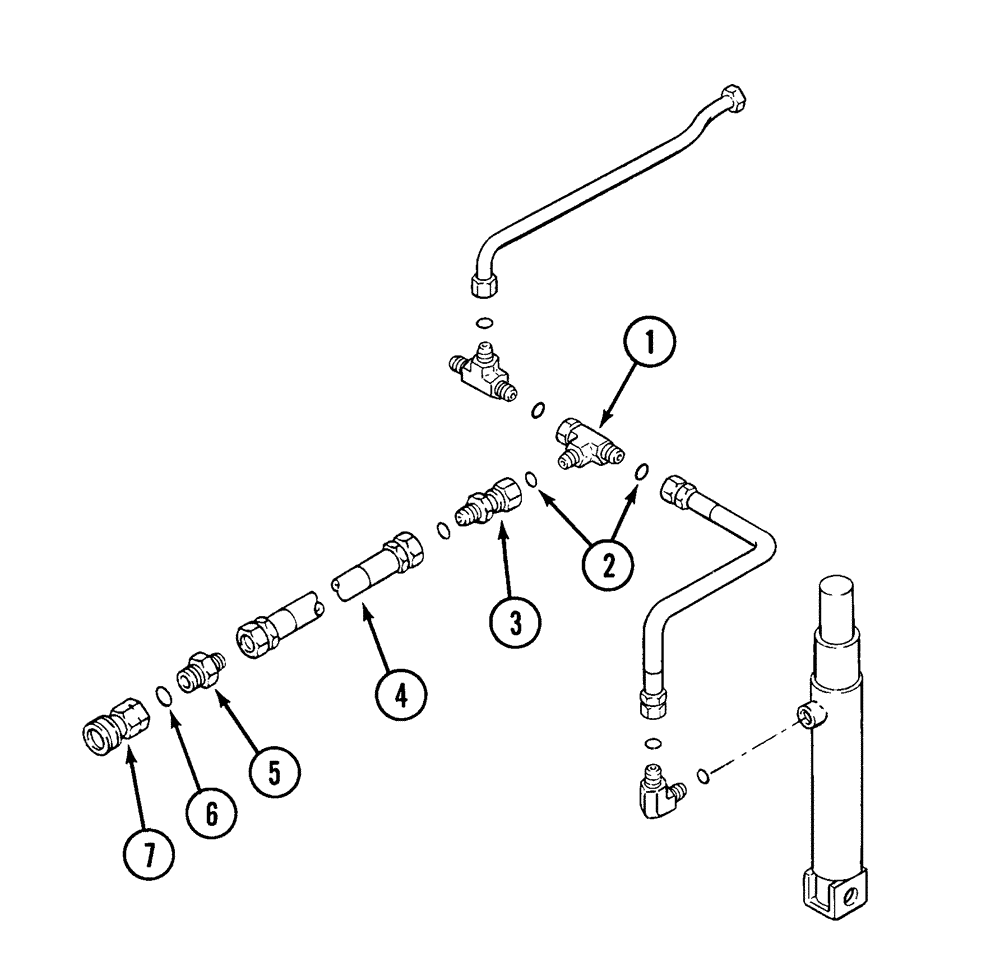

Запчасти Case IH 1200 (A.10.A[43]) - ASSIST WHEEL HYDRAULIC ATTACHMENT KIT, 7100, 7200 AND 8900 SERIES MAGNUM TRACTORS A - Distribution Systems

0

336285A1

KIT

Magnum assist wheel hydraulic

1шт.

1

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

2шт.

2

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

335732A1

ADAPTER,13/16"-16 ORFS x 3/4"-16 37 Degree

2шт.

4

1304251C2

HYDRAULIC HOSE

1/2" x 41" fl

2шт.

5

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

2шт.

6

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

7

335734A2

COUPLING

hydraulic female quick

2шт.
