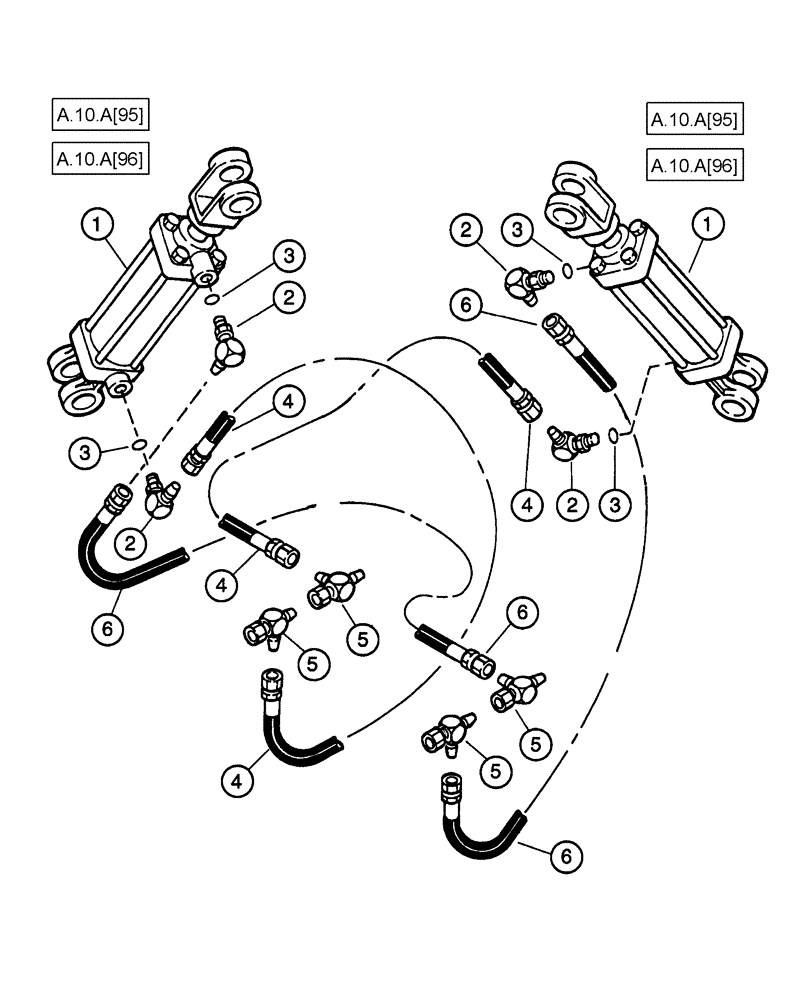

Запчасти Case IH 1200 (A.10.A[40]) - HYDRAULIC CIRCUIT - GULL WING ATTACHMENT, WITH ASSIST WHEELS, 12 ROW NARROW MOUNTED STACKER A - Distribution Systems

1

357157A1

HYDRAULIC CYLINDER,Double Acting, 203.2mm Stroke

64 mm (2 1/2") id x 203 mm (8") stroke

2шт.

2

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

4шт.

Includes O-ring

1шт.

1

87671455

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

2 1/2" x 8", 3000 psi, no pins

2шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

4

90875C1

HYDRAULIC HOSE

1/2" x 29" (735 mm) fl

2шт.

5

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

4шт.

6

1960386C1

HYDRAULIC HOSE

1/2" x 35" fl

2шт.
