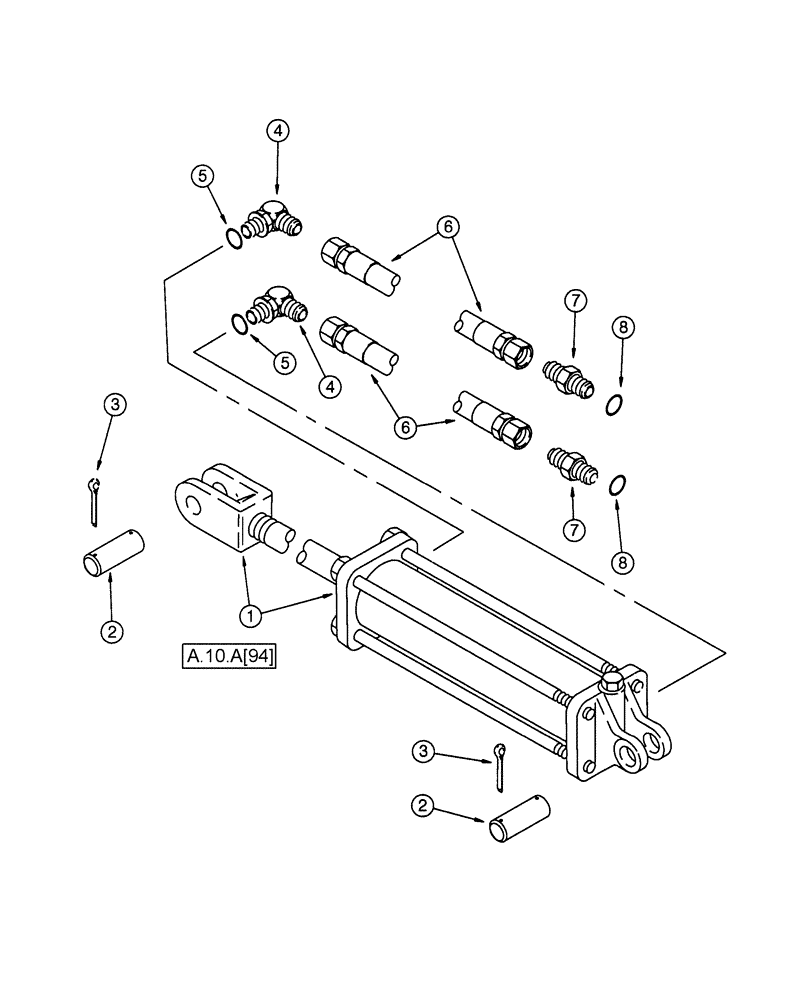

Запчасти Case IH 1200 (A.10.A[39]) - HYDRAULIC SYSTEM - ENDWISE TRANSPORT, OPTIONAL ATTACHMENT - 8 ROW NARROW RIGID TRAILING A - Distribution Systems

1

1282329C91

HYDRAULIC CYLINDER

4" x 16", Years: -06-JUL-01

1шт.

1

414702A1

HYDRAULIC CYLINDER

4" x 16" 3000 psi without pins, Years: 07-JUL-01-31-DEC-03

1шт.

1

86989789

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

4" x 16", 3000 psi, no pins, Start Year: 01-JAN-04

1шт.

2

1252319C1

PIN,31.75mm OD x 96mm L

cylinder 1 1/4"

2шт.

3

88182

COTTER PIN,1/4" OD x 2" L

4шт.

4

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

6

1284299C1

HYDRAULIC HOSE

3/8" x 350" (8890 mm)

2шт.

7

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
