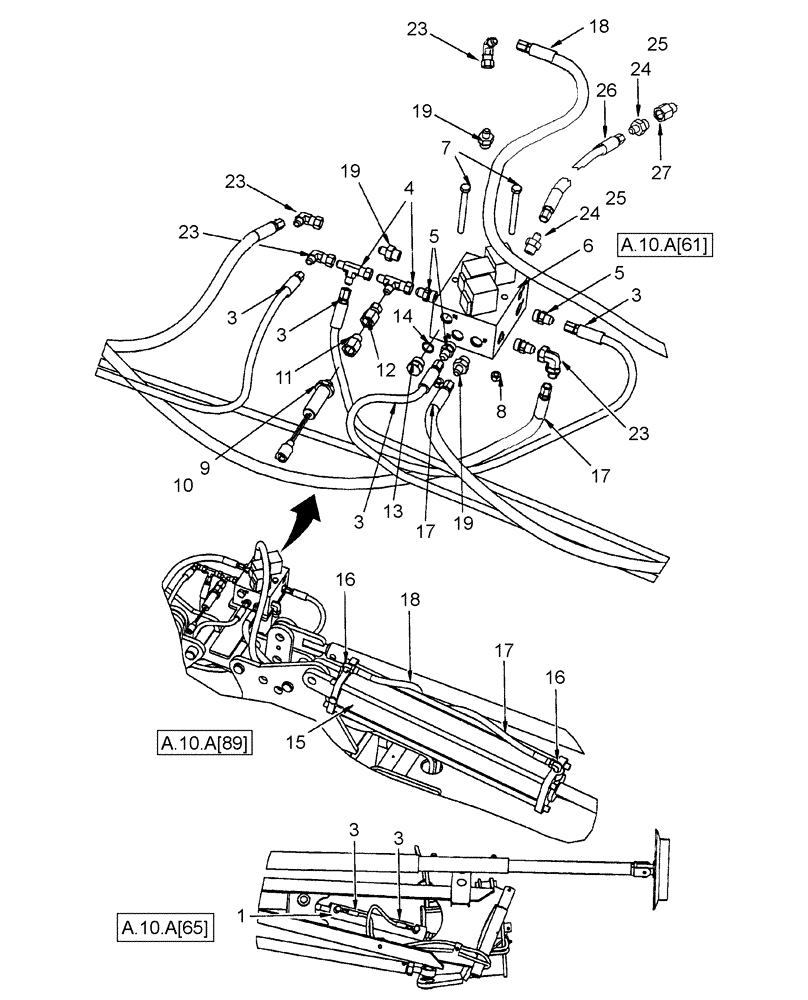

Запчасти Case IH 1200 (A.10.A[35]) - HYDRAULIC SYSTEM - ROW MARKER/FRAME FOLD, 12 ROW WIDE MOUNTED STACKER FRAME (BSN CBJ036000) A - Distribution Systems

1

414710A1

STEERING CYLINDER

2 1/2" x 18", Years: -31-OCT-01

2шт.

1

87501758

HYDRAULIC CYLINDER

1394 marker 2 1/2" x 18", Start Year: 01-NOV-01

2шт.

3

1971547C1

HYDRAULIC HOSE

1/4" x 330" fl

4шт.

4

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

5

382996A1

ORIFICE

fitting, one-way

3шт.

6

302403A3

VALVE

assembly, stacker bar planter

1шт.

7

84192885

BOLT

Hex, 3/8"-16 x 3 3/4", G5

2шт.

8

9628503

NUT,3/8"-16, G5

2шт.

9

1547188C1

SWITCH

pressive inv

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

86622967

ADAPTER,9/16"-18 ORB x 3/8"-28 NPTF, Brass

1шт.

12

86624010

HYD CONNECTOR,37 Degree, Sw, 9/16"-18" x 3/8"-18 NPTF

1шт.

13

214389

PLUG,3/4" - 16 ORB

1шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

324548A1

CYLINDER

5" x 24", Years: -31-JUL-02, Serial Range: -CBJ0001760

2шт.

15

86989791

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 609.6mm Stroke

5" x 24", double acting, Start Year: 01-AUG-02, Start Serial: CBJ0001763

2шт.

16

347354A1

FITTING

Orthman frame cylinder restrictor

4шт.

17

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

1/4" x 70" fl

2шт.

18

129908C1

HYDRAULIC HOSE

1/4" x 55" fl, 7/8" fjic x 7/8" fjic

2шт.

19

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

Includes O-ring

1шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

Not Shown

1шт.

23

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

4шт.

24

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

4шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

26

195869C2

HYDRAULIC HOSE

1/2" x 75" fl

2шт.

27

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

2шт.

28

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

4шт.

Not Shown

1шт.
