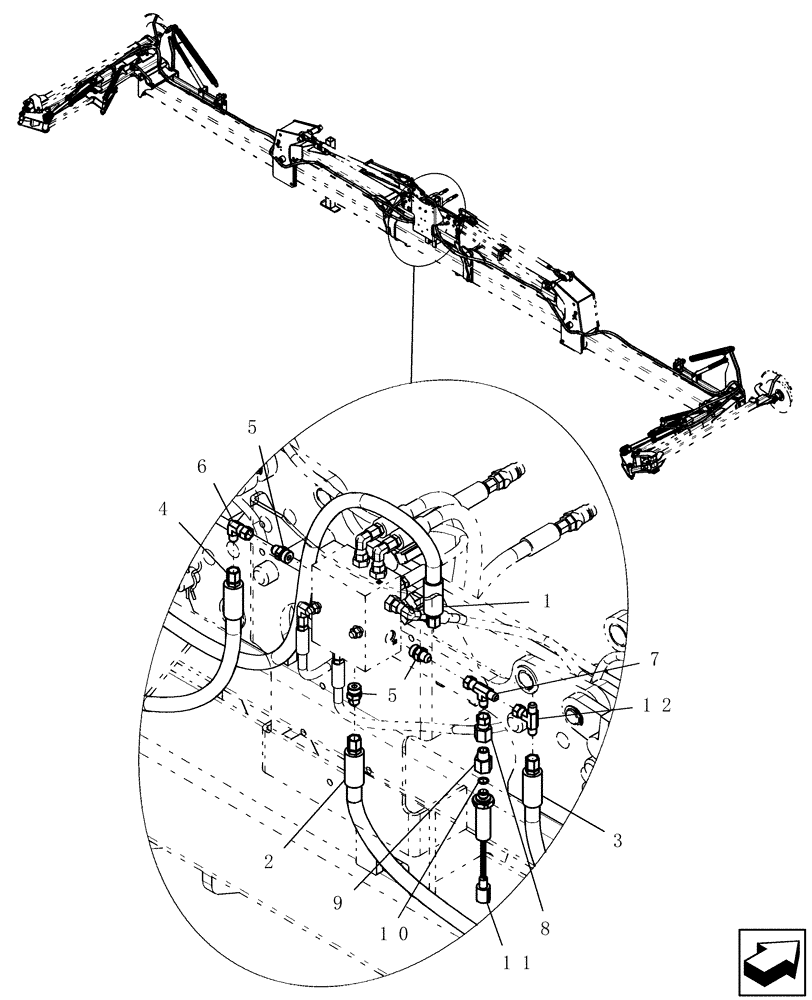

Запчасти Case IH 1200 (A.10.A[34]) - HYDRAULIC SYSTEM - 8 ROW WIDE AND 12 ROW NARROW MARKER MOUNTED STACKER ASN CBJ036001 A - Distribution Systems

1

1284260C1

HYDRAULIC HOSE

3/8" x 265" fl

1шт.

2

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

3/8" x 275" fl

1шт.

3

1284260C1

HYDRAULIC HOSE

3/8" x 265" fl

1шт.

4

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

3/8" x 275" fl

1шт.

5

383670A1

ORIFICE

fitting assembly

3шт.

6

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

7

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

86624010

HYD CONNECTOR,37 Degree, Sw, 9/16"-18" x 3/8"-18 NPTF

1шт.

9

86622967

ADAPTER,9/16"-18 ORB x 3/8"-28 NPTF, Brass

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

1547188C1

SWITCH

pressive inv

1шт.

12

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.
