Запчасти Case IH 1200 (A.10.A[32]) - HYDRAULIC SYSTEM - DRIVE/CARRYING WHEELS, 8 ROW RIGID TRAILING A - Distribution Systems

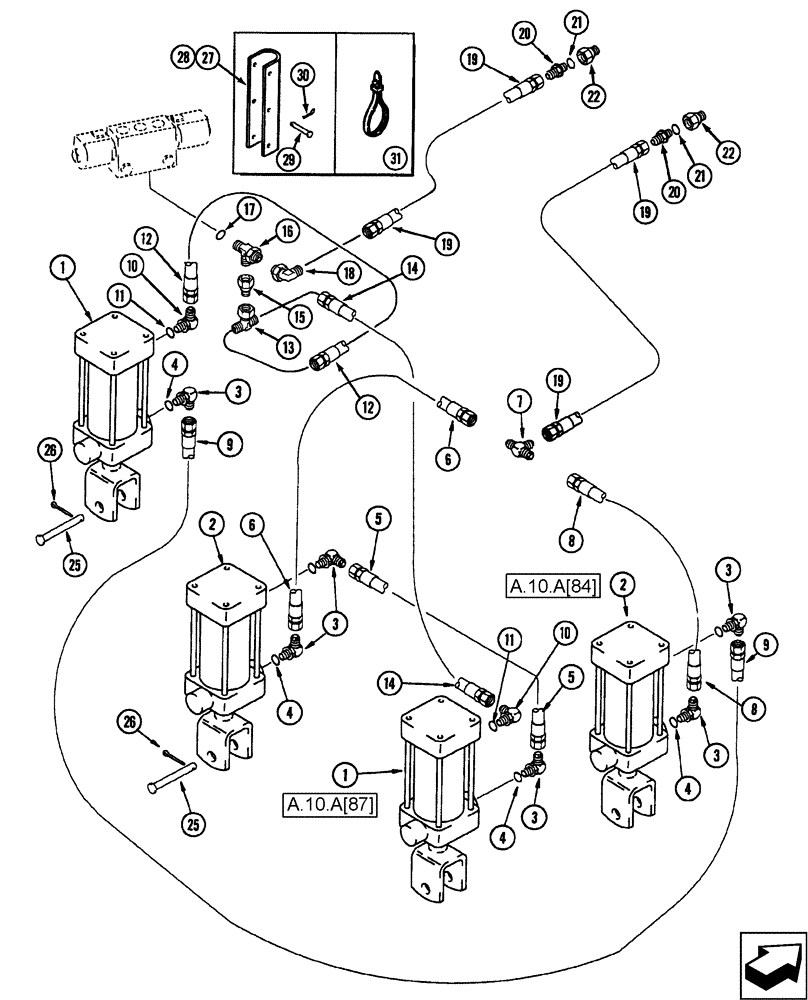

Схема запчастей Case IH 1200 - (A.10.A[32]) - HYDRAULIC SYSTEM - DRIVE/CARRYING WHEELS, 8 ROW RIGID TRAILING A - Distribution Systems
7
19
17
15
26
19
29
12
2
25
10
10
8
18
22
14
1
4
13
16
a.10.a[84]
21
a.10.a[87]
14
19
6
25
31
8
2
27
3
21
22
5
9
20
11
1
3
12
3
4
20
5
4
6
3
26
9
11
28
3
4
19

Артикул

Название

Примечание

Количество

1

1286472C1

HYDRAULIC CYLINDER

3 1/4" x 8" double acting, Years: -06-JUL-01

2шт.

1

414704A1

HYDRAULIC CYLINDER

3 1/4" x 8" 3000 psi without pins, Years: 07-JUL-01-24-NOV-03, Serial Range: -CBJ0018553

2шт.

1

86991982

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/4" x 8", 3000 psi, double acting, Start Year: 25-NOV-03, Start Serial: CBJ0018554

2шт.

2

1286471C1

HYDRAULIC CYLINDER

3" x 8" double acting, Years: -06-JUL-01

2шт.

2

414703A1

HYDRAULIC CYLINDER

3" x 8" 3000 psi without pins, Years: 07-JUL-01-24-NOV-03

2шт.

2

86991981

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8", 3000 psi, double acting, Start Year: 25-NOV-03

2шт.

3

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

6шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

5

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

1/4" x 70" fl

1шт.

6

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

1шт.

7

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

1шт.

8

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

9

1284256C1

HYDRAULIC HOSE,9.52 mm ID x 4955.00 mm

1шт.

10

92781C1

RESTRICTOR

3/8" C-Z 2.46 orifice

2шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

12

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

13

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

14

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

1шт.

15

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

16

86624130

TEE,37 Degree, 3/4" - 16, 7/8" - 14 O-Ring Run, 3/4"-16

1шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

19

91159C1

HYDRAULIC HOSE,12.70 mm ID x 4955.00 mm, SAE 100R1

2шт.

20

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

22

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

2шт.

23

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

Not Shown

1шт.

24

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

1шт.

Not Shown

1шт.

25

86624078

HEADED PIN,3/4" x 3 1/4", G5

2шт.

26

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

2шт.

27

1261241C93

STOP

cylinder bracket with decal

2шт.

28

1254230C2

WARNING DECAL

1шт.

29

86624081

HEADED PIN,9.53mm OD x 57.15mm L

2шт.

30

86624096

COTTER PIN,Int, 3/16 x .080"

2шт.

31

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

Выбрано товаров: 37
