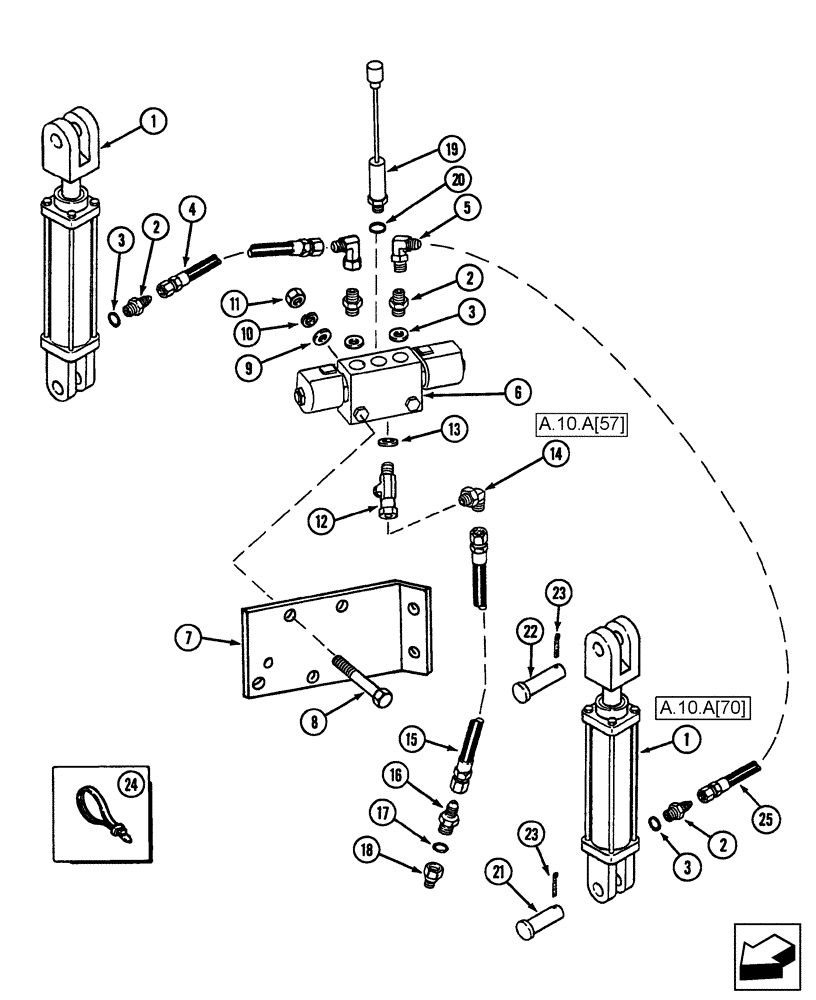

Запчасти Case IH 1200 (A.10.A[30]) - HYDRAULIC SYSTEM - ROW MARKER, 8 ROW RIGID TRAILING A - Distribution Systems

1

1345980C1

HYDRAULIC CYLINDER

2" x 8" single acting, Years: -06-JUL-01

2шт.

1

414705A1

HYDRAULIC CYLINDER

2" x 8" 3000 psi without pins, Years: 07-JUL-01-10-MAR-03

2шт.

1

86991778

HYDRAULIC CYLINDER

2" x 8", 3000 psi, no pins, single acting, Years: 11-MAR-03-31-JUL-03, Start Serial: CBJ0001935

2шт.

1

87430675

HYDRAULIC CYLINDER,50.8mm Rod, 204.72mm Stroke

2" x 8", Start Year: 01-AUG-03, Start Serial: CBJ0018326

2шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

4шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

4

139655C2

HYDRAULIC HOSE

3/8" x 155" fl

1шт.

5

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

6

149988C92

VALVE

assembly

1шт.

7

381423A1

BRACKET

valve mounting

1шт.

Mech Drive Only

1шт.

8

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

9

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

4шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

11

9628503

NUT,3/8"-16, G5

2шт.

12

86624130

TEE,37 Degree, 3/4" - 16, 7/8" - 14 O-Ring Run, 3/4"-16

1шт.

13

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

15

91159C1

HYDRAULIC HOSE,12.70 mm ID x 4955.00 mm, SAE 100R1

2шт.

16

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

18

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

2шт.

19

1547188C1

SWITCH

pressive inv

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

86624100

HEADED PIN,1" x 3", G2

2шт.

22

810751C1

PIN

headed 1" x 3 1/2"

2шт.

23

80753

COTTER PIN,1/4" x 1 1/2"

4шт.

24

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

25

139655C2

HYDRAULIC HOSE

3/8" x 155" fl

1шт.
