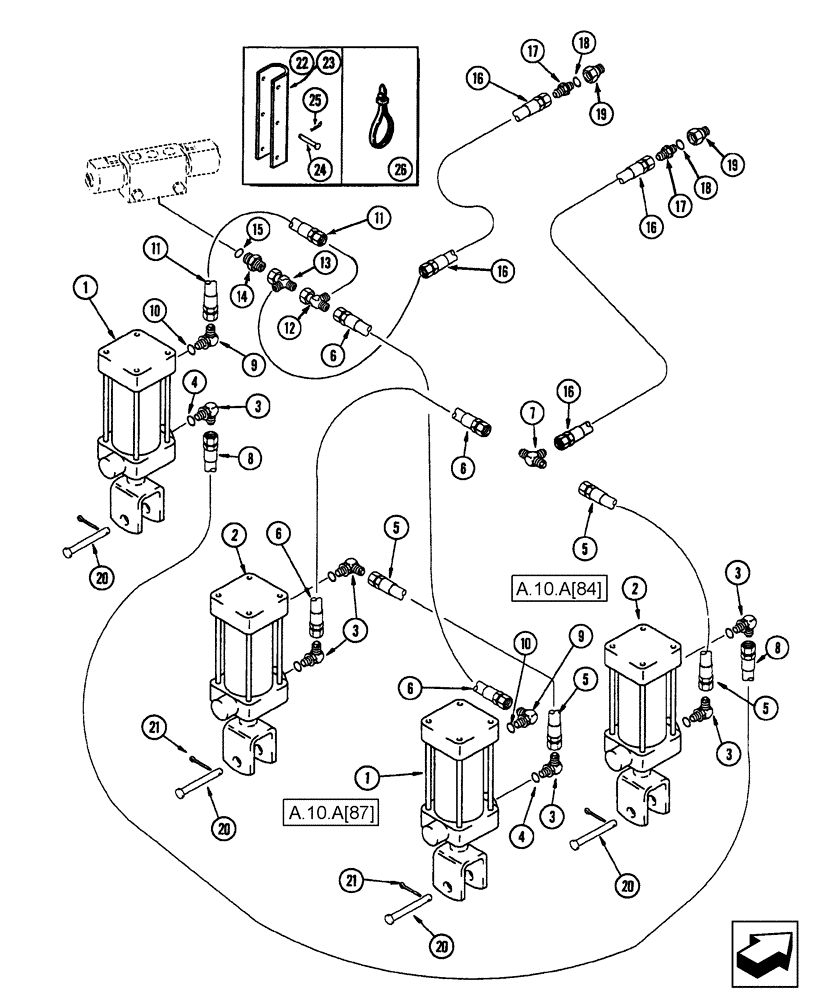

Запчасти Case IH 1200 (A.10.A[29]) - HYDRAULIC SYSTEM - DRIVE/CARRYING WHEELS, 6 ROW RIGID TRAILING A - Distribution Systems

1

1286472C1

HYDRAULIC CYLINDER

3 1/4" x 8" double acting, Years: -06-JUL-01

2шт.

1

414704A1

HYDRAULIC CYLINDER

3 1/4" x 8" 3000 psi without pins, Years: 07-JUL-01-24-NOV-03, Serial Range: -CBJ0018553

2шт.

1

86991982

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 1/4" x 8", 3000 psi, double acting, Start Year: 25-NOV-03, Start Serial: CBJ0018554

2шт.

2

1286471C1

HYDRAULIC CYLINDER

3" x 8" double acting, Years: -06-JUL-01

2шт.

2

414703A1

HYDRAULIC CYLINDER

3" x 8" 3000 psi without pins, Years: 07-JUL-01-24-NOV-03

2шт.

2

86991981

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8", 3000 psi, double acting, Start Year: 25-NOV-03

2шт.

3

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

6шт.

4

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

5

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

1/4" x 70" fl

2шт.

6

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

2шт.

7

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

1284369C1

HYDRAULIC HOSE

3/8" x 130" fl

1шт.

9

92781C1

RESTRICTOR

3/8" C-Z 2.46 orifice

2шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

11

813006C2

HYDRAULIC HOSE

3/8" x 85" fl

1шт.

12

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

13

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

14

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

1шт.

15

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8" x 185" fl

2шт.

17

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

18

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

19

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

2шт.

20

86624078

HEADED PIN,3/4" x 3 1/4", G5

4шт.

21

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

4шт.

22

1261241C93

STOP

cylinder bracket with decal

2шт.

23

1254230C2

WARNING DECAL

1шт.

23

141614A2

DECAL

cylinder stop (French)

1шт.

24

86624081

HEADED PIN,9.53mm OD x 57.15mm L

2шт.

25

86624096

COTTER PIN,Int, 3/16 x .080"

2шт.

26

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.
