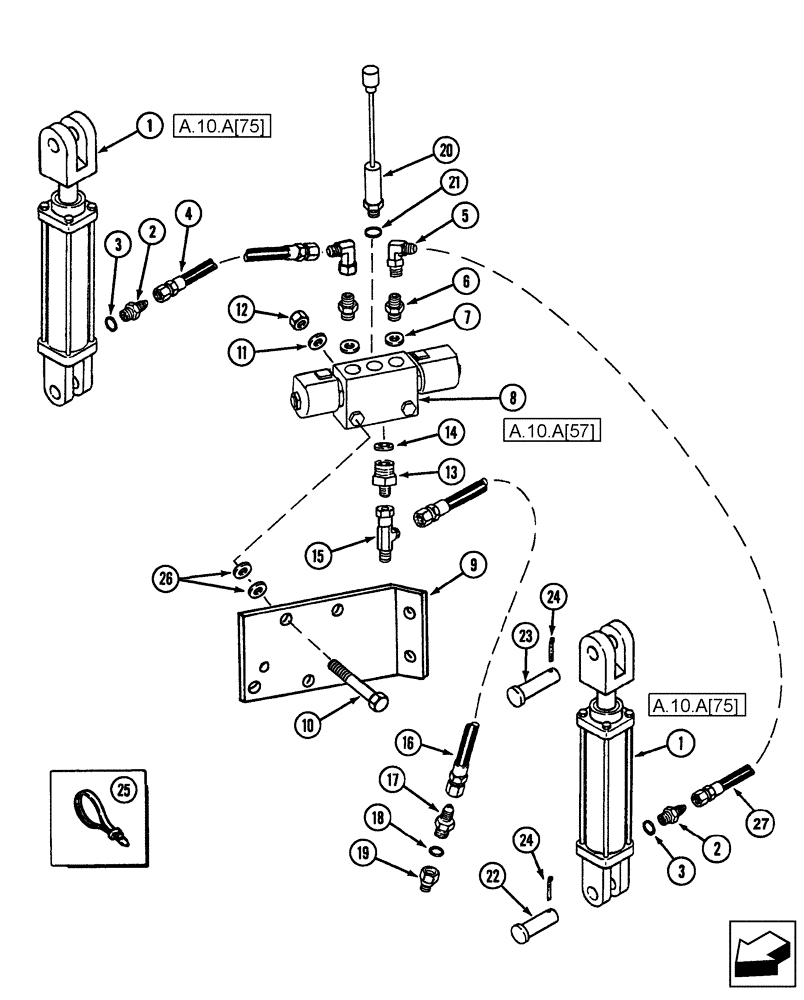

Запчасти Case IH 1200 (A.10.A[27]) - HYDRAULIC SYSTEM - ROW MARKER, 6 ROW RIGID TRAILING A - Distribution Systems

1

1272484C92

HYDRAULIC CYLINDER

1 1/4" x 8", Years: -06-JUL-01

2шт.

1

414701A1

HYDRAULIC CYLINDER

2" x 8" 3000 psi without pins, Years: 07-JUL-01-12-JAN-03

2шт.

1

86989787

HYDRAULIC CYLINDER

2" x 8", 3000 psi, single acting, no pins, Years: 15-JUN-03-30-JAN-05, Serial Range: CBJ0018023-CBJ022746

2шт.

1

87500930

HYDRAULIC CYLINDER,28.57mm Rod, 204.72mm Stroke

2" x 8", single acting, Start Year: 01-FEB-05, Start Serial: CBJ022747

2шт.

2

1263477C3

HYD CONNECTOR

union restrictor

2шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

129768C1

HYDRAULIC HOSE

1/4" x 115" fl

1шт.

5

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

149988C92

VALVE

assembly

1шт.

9

381423A1

BRACKET

valve mounting

1шт.

Mech Drive Only

1шт.

10

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

12

9628503

NUT,3/8"-16, G5

2шт.

13

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

1шт.

14

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

16

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8" x 185" fl

1шт.

17

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

18

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

19

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

2шт.

20

1547188C1

SWITCH

pressive inv

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

86624100

HEADED PIN,1" x 3", G2

2шт.

23

810751C1

PIN

headed 1" x 3 1/2"

2шт.

24

80753

COTTER PIN,1/4" x 1 1/2"

4шт.

25

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

26

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

4шт.

27

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

1/4" x 125" fl

1шт.
