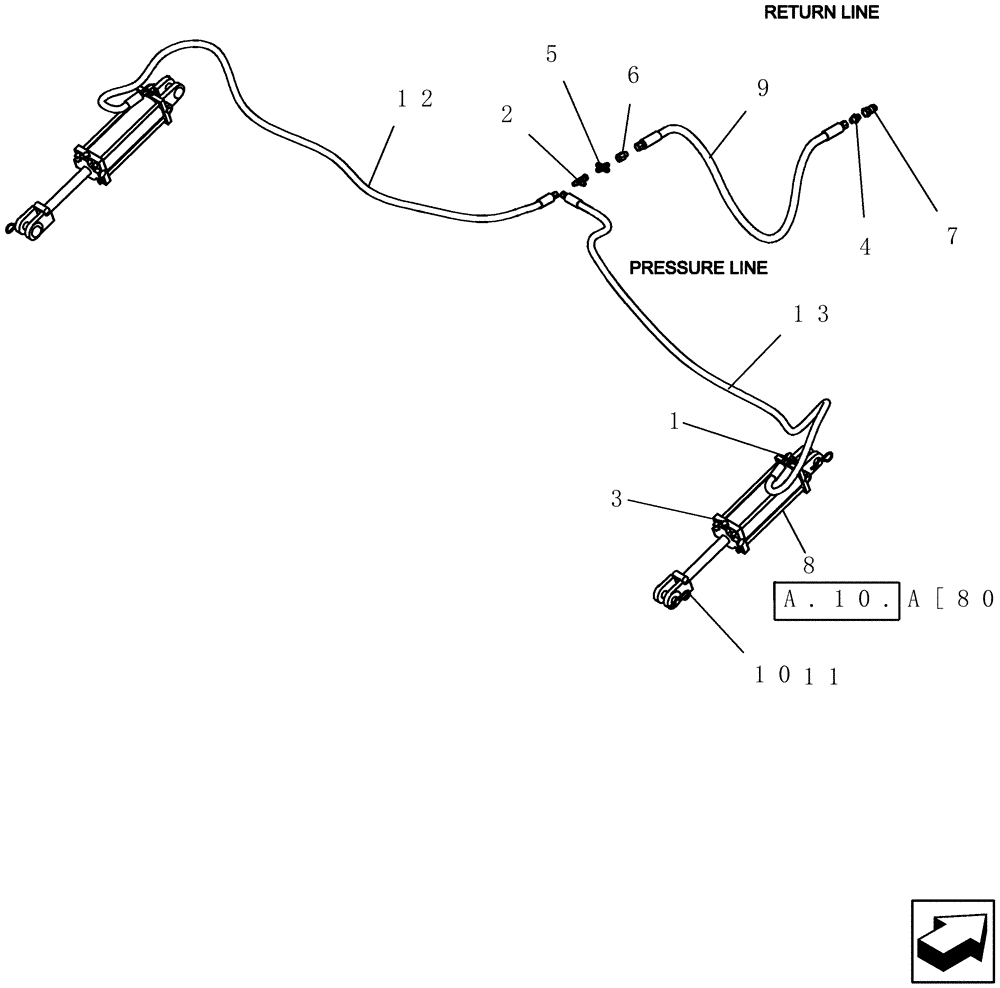

Запчасти Case IH 1200 (A.10.A[26]) - HYDRAULIC SYSTEM - LIFT ASSIST, 12 AND 16 ROW MOUNTED STACKERS A - Distribution Systems

1

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

2

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

3

9479

PLUG

fitting aluminum breather 1/2" mb c/w o-ring

2шт.

4

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

5

86513042

4 WAY CONNECTION,9/16"-18, 37 Degree

1шт.

6

87411460

REDUCER

steel 1/2" mj x 3/8" fj

1шт.

7

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

1шт.

8

87660742

HYDRAULIC CYLINDER,31.75mm Rod, 254mm Stroke

3 1/2" x 8" 3000 psi

2шт.

9

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

1/2" x 50" fl

1шт.

10

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

4шт.

11

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

1" x 3 1/4"

4шт.

12

813006C2

HYDRAULIC HOSE

3/8" x 85" fl

1шт.

16 Row

1шт.

12

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

12 Row Narrow and 12 Row Wide

1шт.

13

813006C2

HYDRAULIC HOSE

3/8" x 85" fl

1шт.

16 Row

1шт.

13

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

12 Row Narrow and 12 Row Wide

1шт.

100

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.
