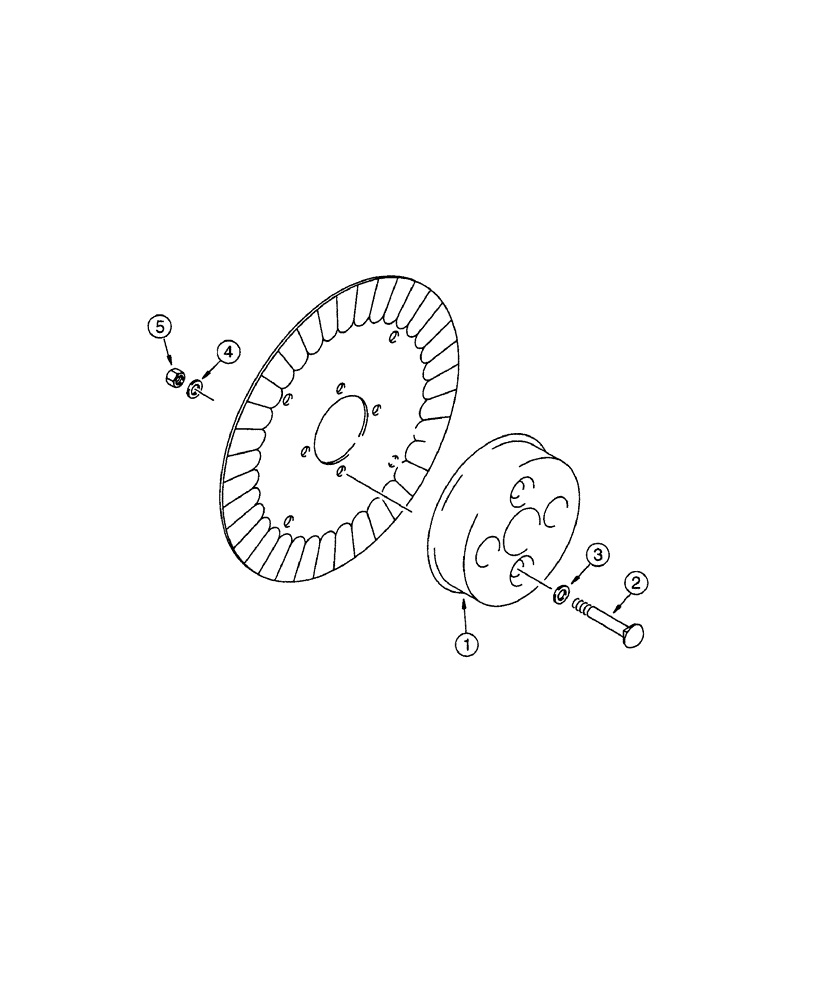

Запчасти Case IH 1200 (L.50.F[08]) - FERTILIZER COULTER GAUGE WHEEL ATTACHMENT L - Field Processing

1

1986465C1

WHEEL,228.6mm OD x 63.5mm W

gauge, 9"

1шт.

1

1986466C1

WHEEL

gauge, 11"

1шт.

2

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

2шт.

3

86624148

WASHER,0.53" ID x 1.5" OD x 0.18" Thk

1шт.

4

86624147

WASHER,0.53" ID x 1.5" OD x 0.12" Thk

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

2шт.
