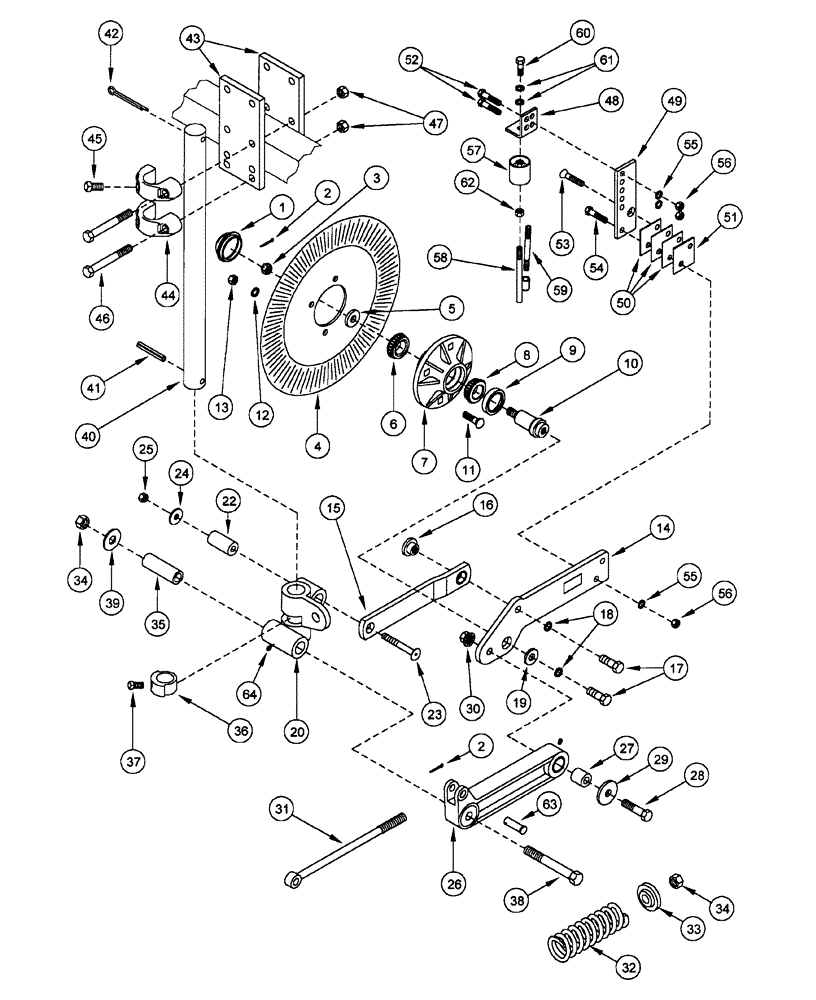

Запчасти Case IH 1200 (L.50.F[06]) - LIQUID FERTILIZER COULTER, WITH LINKAGE & CUSHION SPRING, 6R & 8R RIGID TRAILING (BEFORE 01/2004) L - Field Processing

1

1344515C1

CAP

hub

1шт.

2

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

2шт.

3

86637930

SLOTTED NUT,5/8"-18, G5

1шт.

4

321165A2

PLOW DISC

coulter 17 5/8", 25 wave

1шт.

5

1344527C1

WASHER

11/16" id x 1 3/4" od x 1/4" thick

1шт.

6

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

1шт.

7

1344512C1

HUB

coulter

1шт.

8

36726

BEARING CONE,31.75mm ID x 16.76mm W

#LM67048

2шт.

8

84356153GV

BEARING

Value

2шт.

8a

36723

BEARING CUP,59.16mm OD x 11.81mm W

#LM67010

2шт.

9

321157A1

SEAL

triple lip 2550-066

1шт.

10

252157A1

SPINDLE

horizontal spring opener

1шт.

11

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

13

280431

NUT,1/2"-13, G5

8шт.

14

252163A1

ARM

fertilizer knife

1шт.

15

252164A1

ARM

upper

1шт.

16

252165A1

PIVOT

upper arm

1шт.

17

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

2шт.

18

12034871

WASHER

5/8"

2шт.

19

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

1 1/2" x 21/32" x 3/16"

1шт.

20

252170A1

PIVOT

casting LH

1шт.

20

252171A1

PIVOT

casting RH

1шт.

22

252316A1

SLEEVE

pivot 2 19/32"

1шт.

23

86624114

HEX SOC SCREW,Flat Hd, CSK, 1/2" - 13 x 4"

1шт.

24

252158A1

WASHER

1/2" x 1 1/2" x .134"

1шт.

25

86992215

LOCK NUT,1/2"-13, GC

5шт.

26

252161A1

ARM

lower

1шт.

26a

252162A1

BUSHING,31.75mm ID x 38.1mm OD x 31.75mm L

lower arm

1шт.

27

252317A1

PIVOT

lower arm

1шт.

28

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

29

1986489C1

SPACER

21/32 x 2-1/4 x 9/64

1шт.

30

86521608

FLANGE NUT,Flg, 5/8"-11, G5

1шт.

31

252169A1

ROD

spring 13 1/2"

1шт.

32

252167A1

SPRING

9/16" wire x 11" long

1шт.

33

252166A1

BUSHING

spring (casting)

1шт.

34

86754

NUT,3/4"-10, GB

2шт.

35

1986486C1

SLEEVE

pivot

1шт.

36

1986495C1

COLLAR

locking, 2975

1шт.

37

86542828

SET SCREW,Sq Hd, 5/8"-11 x 1", Cup Pt

3шт.

38

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

39

86624158

WASHER,0.78" ID x 2" OD x 0.12" Thk

1шт.

40

1344510C1

SHANK

22" straight coulter

1шт.

41

86624093

PIN,9.53mm OD x 63.5mm L

1шт.

42

86624083

COTTER PIN,5/16" x 2 1/2"

1шт.

43

1986499C1

PLATE

clamp, combination

2шт.

43a

122299A1

PLATE

clamp 2 1/2" bar

2шт.

44

1344520C1

SPECIAL CLAMP

casting

2шт.

45

86542828

SET SCREW,Sq Hd, 5/8"-11 x 1", Cup Pt

2шт.

46

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

4шт.

47

86992215

LOCK NUT,1/2"-13, GC

5шт.

48

321160A1

PLATE

injector mounting

1шт.

49

321158A1

PLATE

adjustment

1шт.

50

1344519C1

SHIM

knife, 16 gauge

3шт.

51

1344518C1

SHIM

knife, 1/8"

1шт.

52

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

53

461-45028

HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 3/4"

1шт.

54

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

55

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

56

280431

NUT,1/2"-13, G5

8шт.

57

321161A1

MOUNTING PARTS

rubber injector

1шт.

58

321159A1

ROD

injector

1шт.

59

321163A1

NIPPLE, LUBE

NIPPLE 3" x 1/4" npt stainless

1шт.

60

86622999

BOLT,Hex, 9/16" - 12 x 3/4", Gr 5, Full Thd

1шт.

61

280248

LOCK WASHER,9/16"

2шт.

62

86624026

JAM NUT,Jam, 9/16"-12, G5

1шт.

63

86624084

CLEVIS PIN,15.88mm OD x 62.48mm L

1шт.

64

87414

LUBE NIPPLE,1/4" - 28

4шт.

65

1986496C1

DECAL

critical adjustment

1шт.

Not Shown

1шт.
