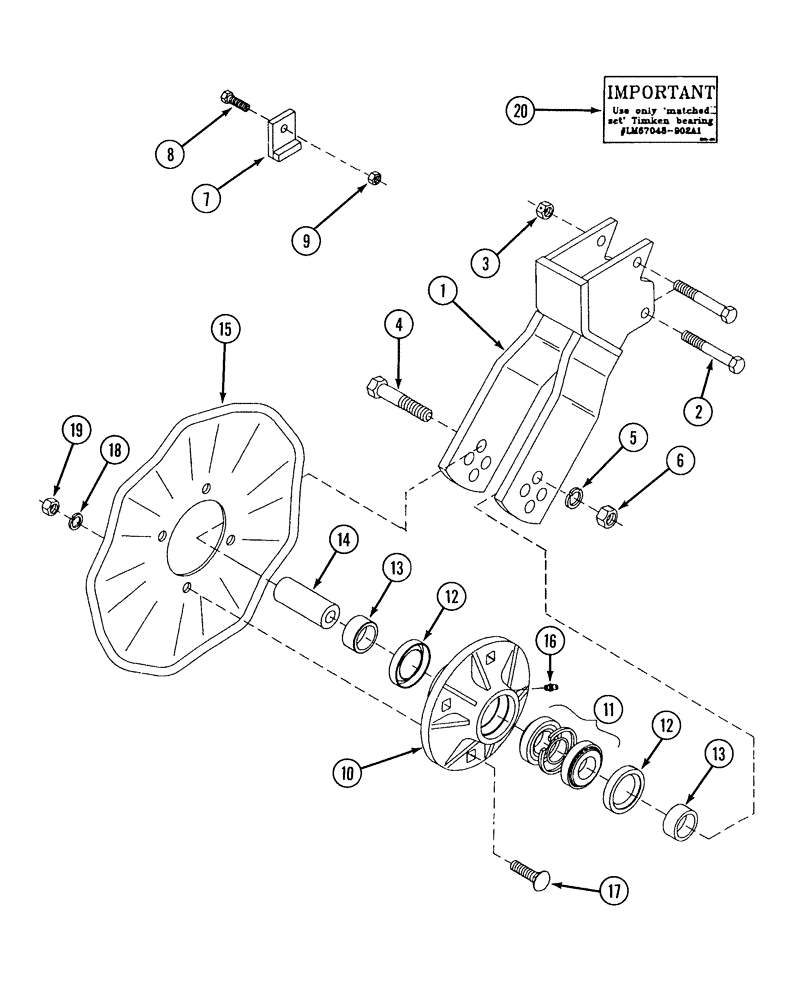

Запчасти Case IH 1200 (L.50.F[01]) - ROW UNIT COULTER ATTACHMENT (BEFORE 12/2002) L - Field Processing

1

129620A1

BRACKET

row mounted coulter, Years: -31-OCT-01

1шт.

1

87501828

BRACKET

row mounted coulter, Start Year: 01-NOV-04

1шт.

2

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

3

86992215

LOCK NUT,1/2"-13, GC

2шт.

4

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

5

12034871

WASHER

5/8"

1шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

7

129621A1

STOP

row unit

2шт.

8

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

9

88902

NUT,3/8"-16

2шт.

10

129627A1

HUB

coulter

1шт.

11

131439A1

BEARING SET,1.25" ID x 2.329" OD x 1.436"

bearing, Timken #LM67048-902A1

1шт.

12

652769R91

OIL SEAL

oil

2шт.

13

129625A1

SPACER

spindle

2шт.

14

129623A1

SPACER

spindle, long

1шт.

15

130800A1

BLADE

coulter - 8 wave

1шт.

15

431542A1

PLOW DISC

25 wave blade

1шт.

16

87414

LUBE NIPPLE,1/4" - 28

1шт.

17

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

19

280431

NUT,1/2"-13, G5

4шт.

20

129618A1

DECAL

important, use only "matched set" Timken bearing

1шт.
