Запчасти Case IH 1200 (L.50.B[03]) - KNIFE SCRAPER ATTACHMENT L - Field Processing

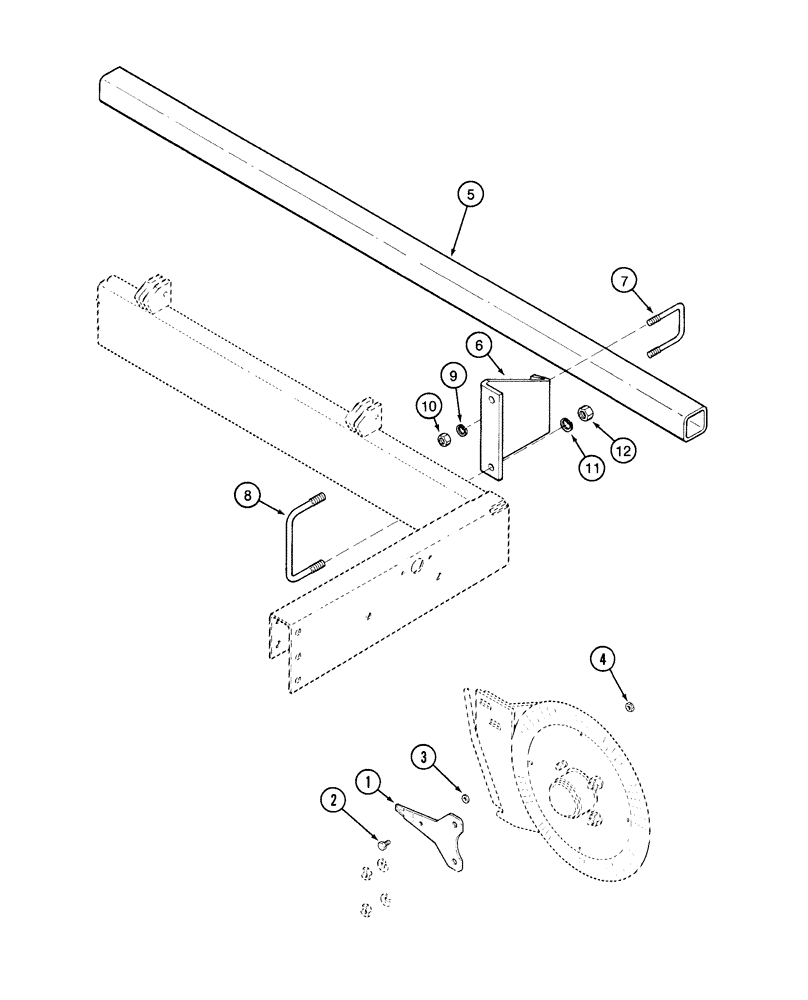

Схема запчастей Case IH 1200 - (L.50.B[03]) - KNIFE SCRAPER ATTACHMENT L - Field Processing
8
11
3
5
10
7
9
2
4
12
6
1

Артикул

Название

Примечание

Количество

1

1344522C1

KIT

double-edge knife scraper

1шт.

Quantities are per row

1шт.

2

86622980

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8, Full Thd

1шт.

Quantities are per row

1шт.

3

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

Quantities are per row

1шт.

4

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

Quantities are per row

1шт.

5

1344526C1

TUBE,1702 mm Length

2 1/2" square x 67" x 3/16 wall

2шт.

Min-till coulter extension bar attachment, 6 row rigid trailing

1шт.

5

1344526C1

TUBE,1702 mm Length

2 1/2" square x 67" x 3/16 wall

4шт.

Min-till coulter extension bar attachment, 8 row rigid trailing

1шт.

6

1344525C1

BRACKET

8" extension

6шт.

Min-till coulter extension bar attachment, 6 row rigid trailing

1шт.

6

1344525C1

BRACKET

8" extension

8шт.

Min-till coulter extension bar attachment, 8 row rigid trailing

1шт.

7

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

6шт.

Min-till coulter extension bar attachment, 6 row rigid trailing

1шт.

7

1344524C1

U-BOLT

us 1/2" x 2 9/18" w x 3 1/2" d 1" thread

8шт.

Min-till coulter extension bar attachment, 8 row rigid trailing

1шт.

8

1344523C1

U-BOLT,5/8" - 11 x 6" W x 3 1/2" L

us 5/8"-11 6" wide x 3 1/2" deep, G5, 1 1/4" thread

6шт.

Min-till coulter extension bar attachment, 6 row rigid trailing

1шт.

8

1344523C1

U-BOLT,5/8" - 11 x 6" W x 3 1/2" L

us 5/8"-11 6" wide x 3 1/2" deep, G5, 1 1/4" thread

8шт.

Min-till coulter extension bar attachment, 8 row rigid trailing

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

Min-till coulter extension bar attachment, 6 row rigid trailing

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

Min-till coulter extension bar attachment, 8 row rigid trailing

1шт.

10

280431

NUT,1/2"-13, G5

12шт.

Min-till coulter extension bar attachment, 6 row rigid trailing

1шт.

10

280431

NUT,1/2"-13, G5

16шт.

Min-till coulter extension bar attachment, 8 row rigid trailing

1шт.

11

12034871

WASHER

5/8"

12шт.

Min-till coulter extension bar attachment, 6 row rigid trailing

1шт.

11

12034871

WASHER

5/8"

16шт.

Min-till coulter extension bar attachment, 8 row rigid trailing

1шт.

12

280374

NUT,Hex, 5/8" - 11, Gr 5

12шт.

Min-till coulter extension bar attachment, 6 row rigid trailing

1шт.

12

280374

NUT,Hex, 5/8" - 11, Gr 5

16шт.

Min-till coulter extension bar attachment, 8 row rigid trailing

1шт.

Выбрано товаров: 40
