Запчасти Case IH 1200 (A.10.A[24]) - HYDRAULIC SYSTEM - ROW MARKER, RIGID MOUNTED FRAMES, 6 ROW NARROW A - Distribution Systems

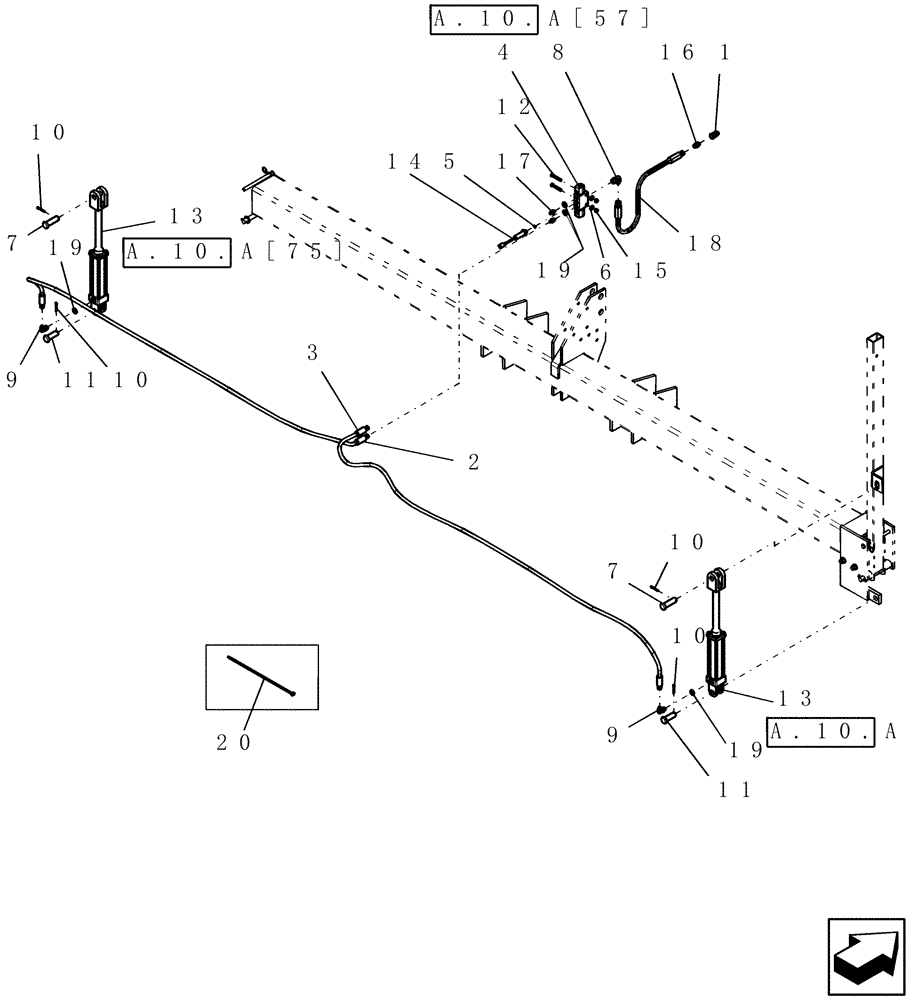

Схема запчастей Case IH 1200 - (A.10.A[24]) - HYDRAULIC SYSTEM - ROW MARKER, RIGID MOUNTED FRAMES, 6 ROW NARROW A - Distribution Systems
11
6
15
19
17
20
1
12
10
2
9
8
16
13
5
18
9
14
13
19
4
7
19
11
7
10
10
3
10

Артикул

Название

Примечание

Количество

1

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

1шт.

2

1284369C1

HYDRAULIC HOSE

3/8" x 130" fl

1шт.

3

1284369C1

HYDRAULIC HOSE

3/8" x 130" fl

1шт.

4

149988C92

VALVE

assembly

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

7

810751C1

PIN

headed 1" x 3 1/2"

2шт.

8

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

9

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

10

80753

COTTER PIN,1/4" x 1 1/2"

4шт.

11

86624100

HEADED PIN,1" x 3", G2

2шт.

12

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

13

87500930

HYDRAULIC CYLINDER,28.57mm Rod, 204.72mm Stroke

2" x 8", single acting

2шт.

14

1547188C1

SWITCH

pressive inv

1шт.

15

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

16

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

17

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

18

195869C2

HYDRAULIC HOSE

1/2" x 75" fl

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

20

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

Выбрано товаров: 20
