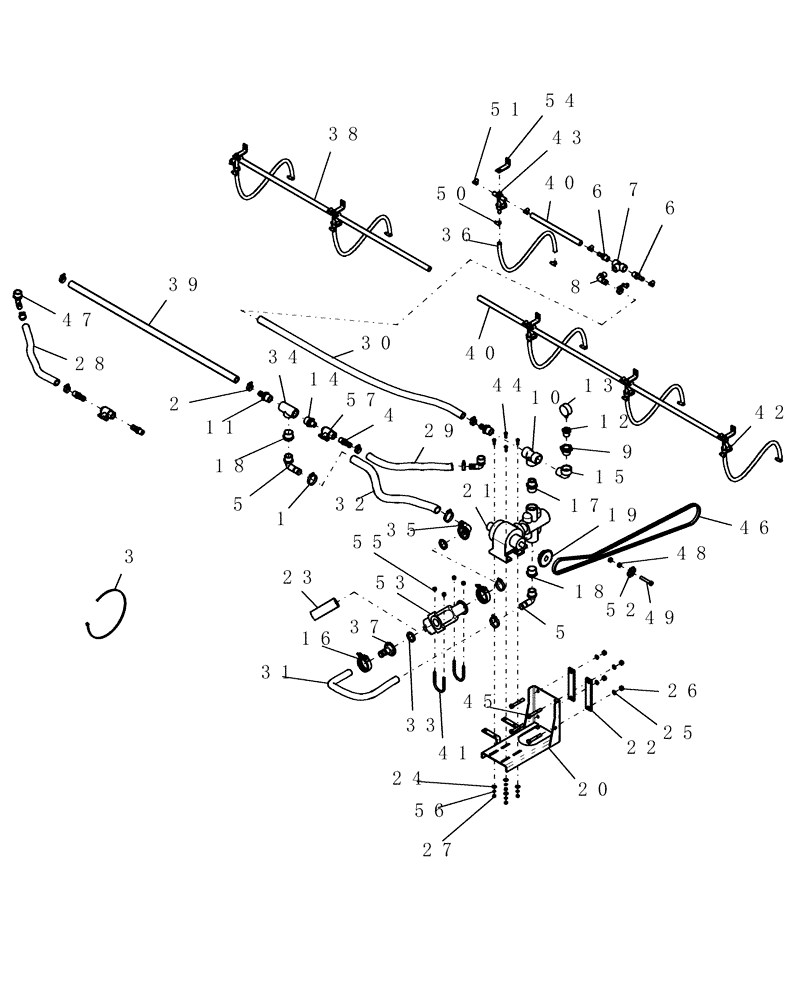

Запчасти Case IH 1200 (L.40.A[15]) - LIQUID FERTILIZER PISTON PUMP SYSTEM AND SECONDARY DRIVE, 6 ROW RIGID TRAILING (ASN CBJ025392) L - Field Processing

1

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

2

86536660

HOSE CLAMP,25mm - 44mm

8шт.

3

87557087

CABLE TIE

CABLE STRAP 11" with stainless locking clip

8шт.

4

6759

FITTING

poly straight adapter 3/4" mpt x 1" hb

3шт.

5

6801

ELBOW

90º 1 1/4" mpt x 1 1/4" hb

2шт.

6

6804

FITTING

poly straight adapter 3/4" mpt x 3/4" hb

2шт.

7

6805

TEE

poly 3/4" fpt

1шт.

8

6807

ELBOW

fitting, poly 90º 3/4" mpt 1" hb

1шт.

9

7294

REDUCER FITTING

poly 1 1/4" mpt x 1" fpt

1шт.

10

1264067C2

TEE

poly 1 1/4" fp

1шт.

11

8239

FITTING

poly straight adapter 1 1/4" 1" hb

2шт.

12

8610

REDUCER FITTING

poly bushing 1"mpt x 1/4"fpt

1шт.

13

21380

GAUGE

pressure 0-160 psi

1шт.

14

21493

REDUCER FITTING

poly 1 1/4" mpt x 3/4" mpt

1шт.

15

21739

ELBOW

fitting, poly 90º 1 1/4"mp 1 1/4" fp

1шт.

16

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

2шт.

17

22335

REDUCER FITTING

poly 1 1/2" mpt x 1 1/4" mpt

1шт.

18

22548

REDUCER FITTING

poly bushing 1 1/2" mpt x 1 1/4" fpt

2шт.

19

87397035

SPROCKET

23 tooth, 2040 chain

1шт.

20

87503779

MOUNTING PARTS

piston pump

1шт.

21

87504269

PUMP

piston, double acting

1шт.

21

87515017

GASKET KIT

NGP-6055 pump

1шт.

22

87504119

PLATE

mount

2шт.

23

87413266

SCREEN,80 Mesh Screen

Strainer 80 Mesh, Banjo Part# LS280, Blue

1шт.

24

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

26

280431

NUT,1/2"-13, G5

4шт.

27

9635082

NUT,5/16" - 18, Gr 5

4шт.

28

134329C3

HOSE

1" x 50' epdm

1шт.

29

134329C3

HOSE

1" x 50' epdm

1шт.

30

134329C3

HOSE

1" x 50' epdm

1шт.

31

86984447

HOSE,1.25" ID BULK x 100.00'

1шт.

32

86984447

HOSE,1.25" ID BULK x 100.00'

1шт.

33

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

2шт.

34

1264067C2

TEE

poly 1 1/4" fp

1шт.

35

405783A1

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

poly 90º 2" flange x 1 1/4" hose barb

1шт.

36

134331C2

HOSE

1/2" x 100' clear vinyl bulk roll

6шт.

37

86990856

FITTING,2" Flange x 1-1/4" Hose Barb

2" manifold x 1 1/4" barb

1шт.

38

86993466

HOSE,0.75" ID

Order in Multiples of 100

4шт.

39

134329C3

HOSE

1" x 50' epdm

1шт.

40

86993466

HOSE,0.75" ID

Order in Multiples of 100

2шт.

41

87413269

U-BOLT

ur 3/8"-16 x 2 1/2" wide x 4" deep ss with 1 3/4" thread

2шт.

42

241019A1

NOZZLE

elbow assembly 3/4"

2шт.

43

241017A1

NOZZLE

tee assembly 3/4"

4шт.

44

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

45

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

4шт.

46

87504325

CHAIN

drive piston pump

1шт.

46

569088R91

CHAIN (AG)

#2040 - 10' d/p roller

95шт.

46

1277927C91

LINK

connecting

1шт.

47

1261310C2

ELBOW

poly 90º 1 1/4" mp x 1" hb

2шт.

48

280431

NUT,1/2"-13, G5

2шт.

49

280620

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

50

244358

HOSE CLIP,0.44" - 0.78"

12шт.

51

9706921

HOSE CLAMP,12.7mm - 35mm

12шт.

52

472344R3

SPROCKET

idler

1шт.

53

405798A1

STRAINER ELEMENT,AAH

fitting poly y 2" line 80 mesh

1шт.

53

87413267

GASKET,2" EPDM Gasket

strainer

1шт.

53

87413266

SCREEN,80 Mesh Screen

Strainer 80 Mesh, Banjo Part# LS280, Blue

1шт.

54

87504352

MOUNTING PARTS

nozzle

6шт.

55

86985855

LOCK NUT

3/8"-16 ss 1-way, nylon insert

4шт.

56

80681

LOCK WASHER,5/16"

4шт.

57

1345067C1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

poly 3/4" fpt x 3/4" fpt ball valve

2шт.
