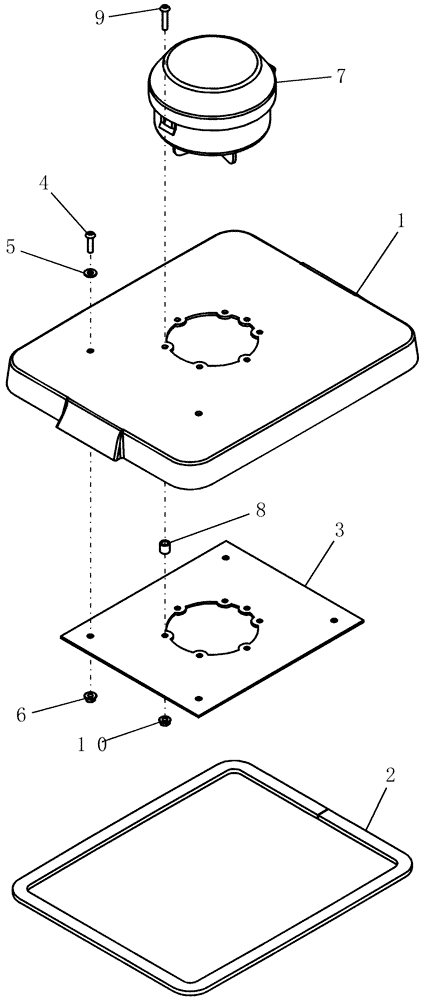

Запчасти Case IH 1200 (L.40.A[05]) - CLOSED GRANULAR CHEMICAL ATTACHMENT, 6 ROW RIGID TRAILING L - Field Processing

0

336296A1

PACKAGE

closed chem system kit, Years: -30-JUN-03

1шт.

0

336296A2

KIT

closed chem system, Start Year: 01-JUL-03

1шт.

1

335977A1

COVER

closed granular chemical system

1шт.

2

107173A1

SEALING STRIP

granular chemical hopper

1шт.

Cut from 149577C2

1шт.

2

149577C2

SEALING STRIP

hopper 50' long

1шт.

3

106699A1

PLATE

hopper lid reinforcement

1шт.

4

85700333

SCREW,Pan, 1/4" - 20 x 1"

4шт.

5

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

6

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

7

106696A1

VALVE

closed handling system

1шт.

8

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

6шт.

9

87015126

SCREW,Pan, 1/4" - 20 x 1 1/4"

6шт.

10

86624020

FLANGE NUT,Flg, 1/4"-20.G5

6шт.
