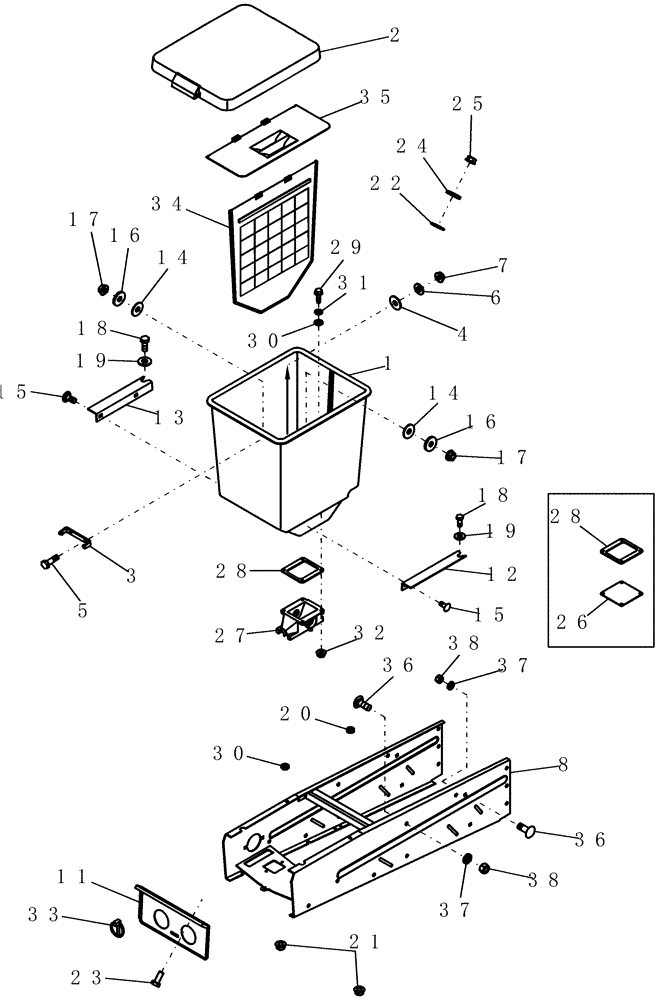

Запчасти Case IH 1200 (L.40.A[01]) - GRANULAR CHEMICAL ATTACHMENT, HOPPER AND SUPPORT (BSN CBJ0018110) L - Field Processing

1

323736A2

HOPPER

granular chemical

1шт.

2

322858A1

COVER

hopper lid, Years: -31-JAN-02

1шт.

2

409683A1

COVER

hopper, granular chemical, Start Year: 01-FEB-02

1шт.

3

333790A1

BRACKET

lid mounting

1шт.

4

134289C1

RUBBER WASHER

rubber, Years: -31-DEC-03

1шт.

4

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

hopper, Start Year: 01-JAN-04

2шт.

5

80043233

SCREW

Hex, M8 x 20, 10.9

2шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

87413585

FRAME

kit, granular chemical, 1200 Series

1шт.

11

134353C1

SUPPORT

hopper, Years: -01-SEP-08

1шт.

11

84149122

SUPPORT

hopper with tab, Start Year: 01-SEP-08

1шт.

12

134327C2

ANGLE

support, hopper RH

1шт.

13

134326C2

ANGLE

support, hopper LH

1шт.

14

134289C1

RUBBER WASHER

rubber

4шт.

15

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

4шт.

16

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

4шт.

17

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

18

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

19

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

20

87417490

WASHER,8.48mm ID x 12.7mm OD x 4mm Thk

.334" x .5" x .157"

2шт.

21

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

22

134289C1

RUBBER WASHER

rubber

2шт.

23

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

24

86624143

WASHER,0.34" ID x 1" OD x 0.12" Thk

2шт.

25

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

26

137186C1

COVER

plate gc

1шт.

27

137043C1

HOUSING

upper

1шт.

28

134298C1

GASKET

hopper

2шт.

29

86624115

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

8шт.

30

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

hopper

8шт.

31

86624137

WASHER,0.27" ID x 0.5" OD x 0.06" Thk

8шт.

32

523282

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

33

A33497

LINCH PIN,4.76mm OD Pin

Klik

1шт.

34

322859A3

DIVIDER

hopper

1шт.

35

333789A1

COVER

hopper divider

1шт.

36

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

37

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

38

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.
