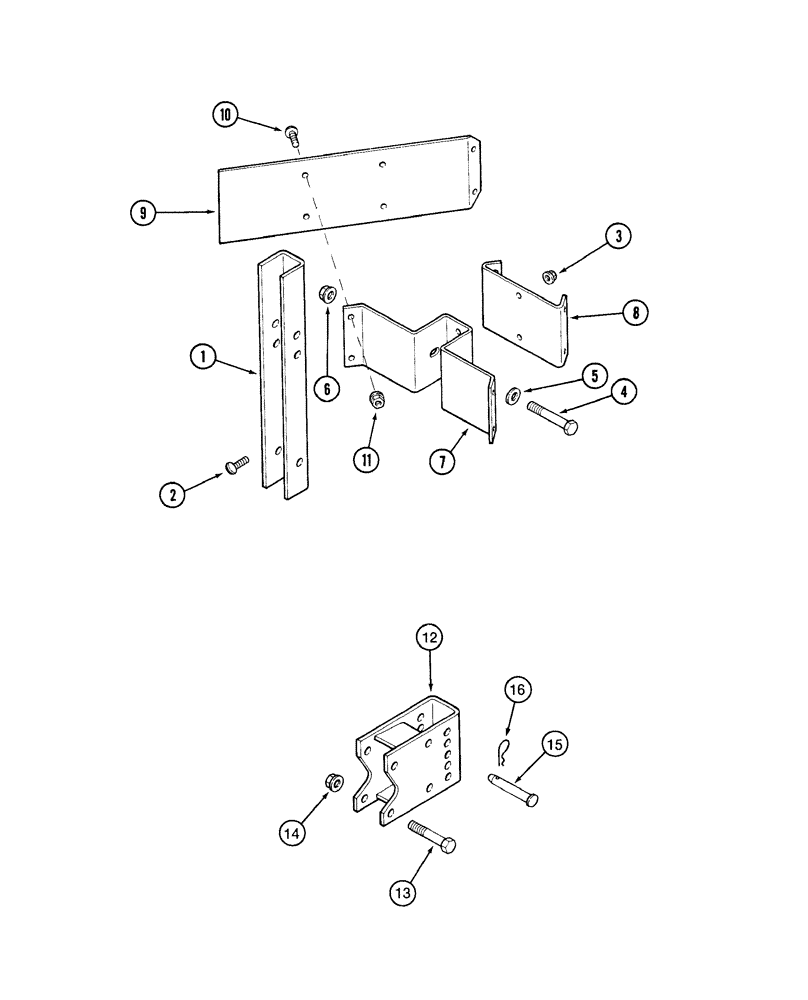

Запчасти Case IH 1200 (L.10.F[19]) - FURROWING WING ATTACHMENT, TILLAGE SUPPORT ATTACHMENT L - Field Processing

1

410415A1

CHANNEL

furrower, Years: -01-SEP-08

1шт.

1

87748371

CHANNEL

furrower, Start Year: 01-SEP-08

1шт.

2

86624125

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

2шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

4

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

5

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

2шт.

6

232-5318

FLANGE NUT,Flg, 1/2"-13

1шт.

7

410394A1

SUPPORT

furrower, rear

1шт.

8

410414A1

SUPPORT

furrower front

1шт.

9

410413A1

SUPPORT

blade furrower

2шт.

10

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

10шт.

11

247780

SERRATED NUT,Flg, USR, 3/8"-16

10шт.

12

90974C1

BRACKET

tillage attachment

1шт.

13

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

14

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

15

147404C1

PIN,12.7mm OD x 83mm L

pointed, 1/2" x 3 1/4"

1шт.

16

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.
