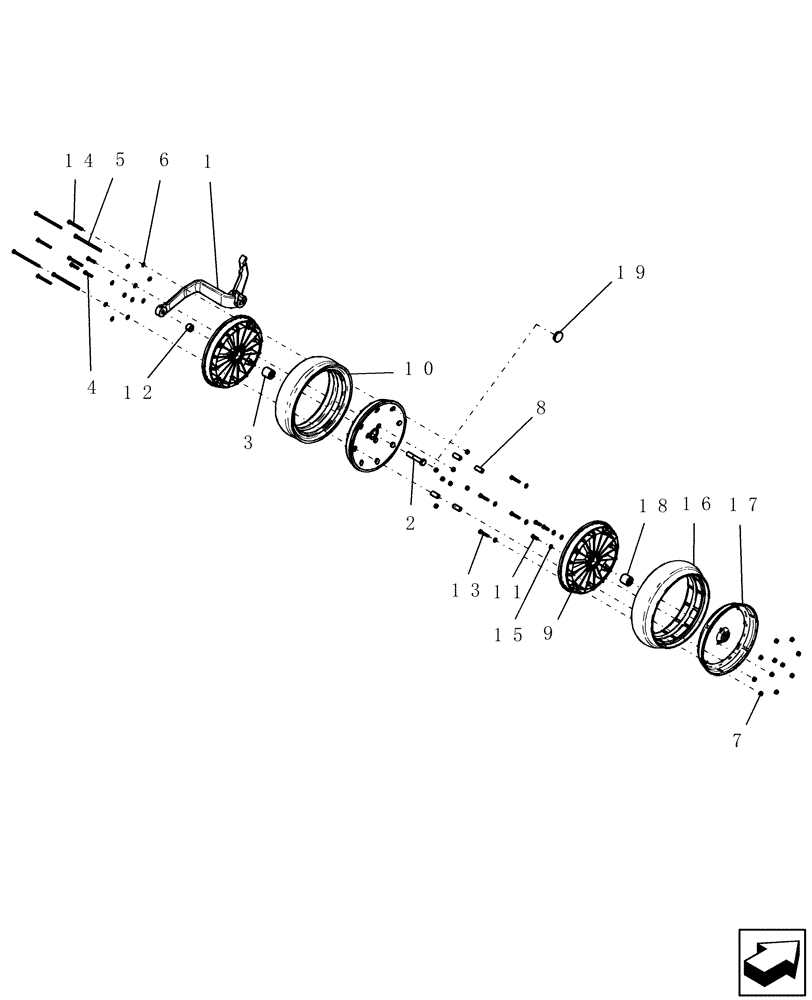

Запчасти Case IH 1200 (L.10.F[11]) - DUAL GAUGE WHEEL ATTACHMENT, (ASN CBJ0001597) L - Field Processing

1

86983486

ARM

cast dual gauge wheel LH

1шт.

1

86983488

ARM

cast dual gauge wheel RH

1шт.

2

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

LH Wheel

1шт.

2

113-1104

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5, LH Thd

1шт.

RH Wheel

1шт.

3

324461A1

BALL BEARING

16 mm bore x 40 mm wide

1шт.

4

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

3шт.

5

280929

BOLT,Hex, 5/16" - 18 x 6", Gr 5

, Years: -01-APR-08

4шт.

5

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

, Start Year: 01-APR-08

4шт.

6

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

4шт.

7

145458

SERRATED NUT,5/16"-18 GR 5 ZND

, Years: -01-APR-08

18шт.

7

86050303

NUT

M8 x 1.25, Flg, Cl 8, Start Year: 01-APR-08

7шт.

8

950523R1

SPACER,3/8" Pipe x 1 1/2"

4шт.

9

246676A1

RIM

WHEEL wheel, nylon, Years: -01-SEP-06

3шт.

9

87604021

WHEEL DISC

black nylon half, 16" cleaner wheel, Start Year: 01-OCT-06

3шт.

10

1969231C1

TYRE/TIRE

offset, 4 1/2" x 16"

1шт.

11

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

12

428672A1

SPACER

1 1/8" od x 7/8" id x 3/4" long

1шт.

13

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

4шт.

14

88731

BOLT,Hex, 5/16"- 18 x 3", Gr 5

, Years: -01-APR-08

4шт.

14

87015934

BOLT,Hvy Hex Flange , M8 x 35mm, Cl 8.8

, Start Year: 01-APR-08

3шт.

15

87016603

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

7шт.

16

128633C1

TYRE/TIRE

disc opener gauge wheel, Years: -01-SEP-06

1шт.

16

87602293

COMPACTOR WHEEL

4.5 x 16 gauge, Years: 01-OCT-06-01-APR-08

1шт.

16

87646854

TYRE/TIRE

cleaner wheel 4 1/2" x 16", Start Year: 01-APR-08

1шт.

17

249935A1

WHEEL

nylon gauge, Years: -01-SEP-06

1шт.

17

87604612

WHEEL

black steel half, 16" cleaner wheel, Start Year: 01-OCT-06

1шт.

18

324461A1

BALL BEARING

16 mm bore x 40 mm wide, Years: -01-APR-08

1шт.

19

86983507

CAP

3" plastic, dome hole, Years: -01-JAN-08

1шт.

19

87713756

PLUG

dome 1 3/8", Start Year: 01-JAN-08

1шт.

100

433884A1

WHEEL ASSY

dual gauge wheel

1шт.
