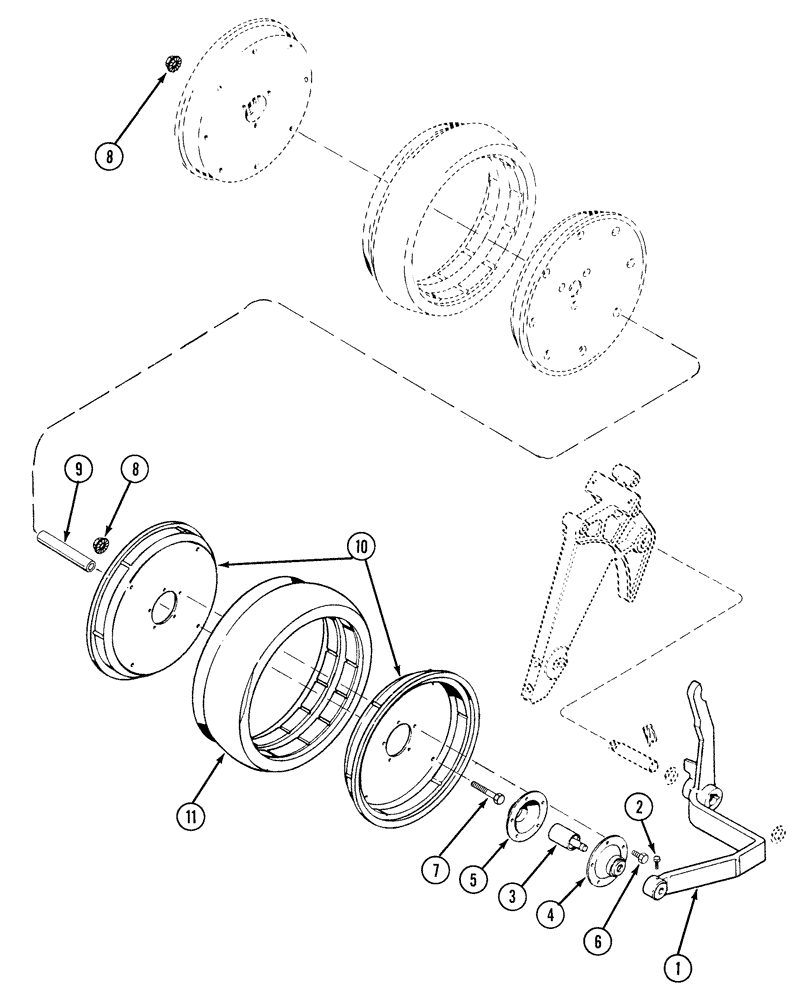

Запчасти Case IH 1200 (L.10.F[10]) - DUAL GAUGE WHEEL ATTACHMENT, (BSN CBJ0001596) L - Field Processing

1

436737A1

ARM

cast dual gauge wheel LH

1шт.

1

436738A1

ARM

cast dual gauge wheel RH

1шт.

Shown

1шт.

2

86542823

SET SCREW,Sq Hd, 3/8"-16 x 7/8", Cup Pt

1шт.

3

1980505C1

BALL BEARING,38.1mm OD x 90.91mm L

Koyo

1шт.

4

1976541C1

BEARING HOUSING,38.1 mm ID x 76.2 mm OD x 26.79 mm

bearing, open

1шт.

5

1969236C1

BEARING HOUSING,38.1 mm ID x 76.2 mm OD x 26.54 mm

bearing, closed

1шт.

6

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5шт.

7

88575

BOLT,Hex, 5/16" - 18 x 5", Gr 5

4шт.

8

145458

SERRATED NUT,5/16"-18 GR 5 ZND

9шт.

9

413709A1

SPACER

tube 5/8" od x 1/2" id x 2 5/8" long

4шт.

10

1969237C1

RIM

WHEEL dual gauge wheel

2шт.

11

1969231C1

TYRE/TIRE

offset, 4 1/2" x 16"

1шт.
