Запчасти Case IH 1200 (L.10.F[05]) - DISC OPENER & GAUGE WHEEL, WITH LH LEADING DISC OPENER (RH SIDE OF PLANTER, BTW CBJ0001611 AND MARCH 2007) L - Field Processing

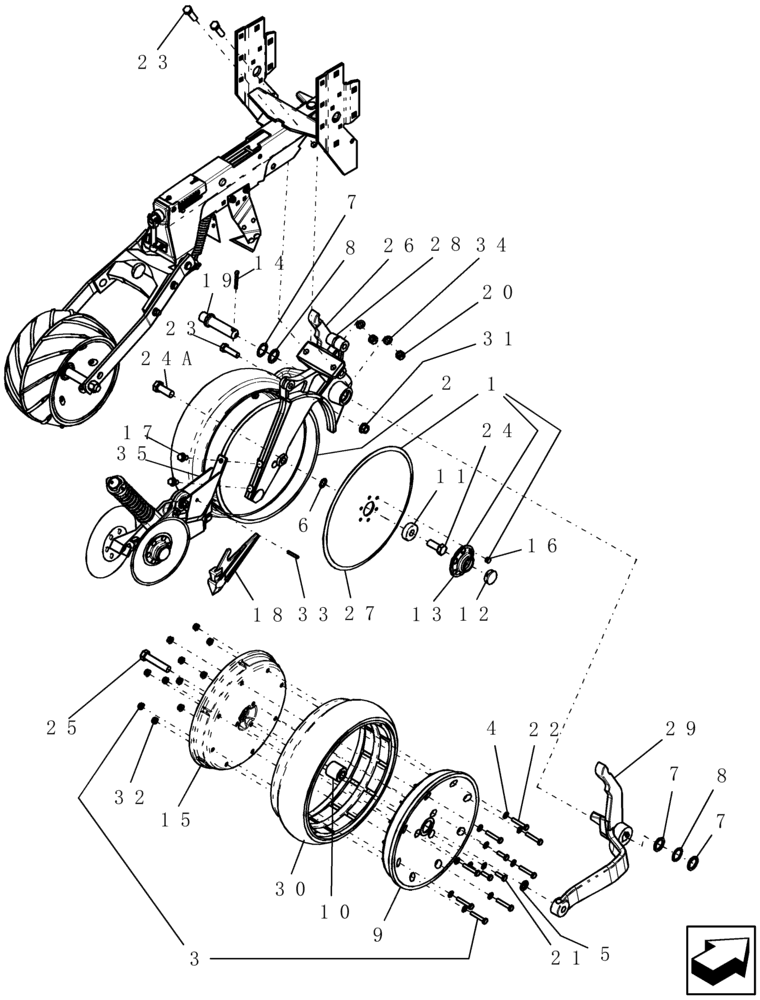

Схема запчастей Case IH 1200 - (L.10.F[05]) - DISC OPENER & GAUGE WHEEL, WITH LH LEADING DISC OPENER (RH SIDE OF PLANTER, BTW CBJ0001611 AND MARCH 2007) L - Field Processing
19
22
1
18
11
32
7
21
2
8
33
29
10
6
4
9
3
14
27
5
35
30
34
8
24
13
7
17
12
23
16
28
20
15
25
31
26
24a
23
7

Артикул

Название

Примечание

Количество

1

90850C92

DISC

OPENER ASSY, 14" STD LEADING, Includes disc, bearing and rivets

1шт.

2

90851C92

DISC

OPENER ASSY, 14" STD TRAILING - Includes disc, bearing and rivets

1шт.

3

306031A1

WHEEL

gauge 4 1/2" x 16"

2шт.

3

413863A1

WHEEL ASSY

gauge, narrow 2 3/4" nylon/steel

2шт.

4

87016603

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

22шт.

5

87023159

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

41/64" x 1.047" x .134", HDN

2шт.

6

1268381C1

WASHER,16.66mm ID x 25.4mm OD x 0.05mm Thk

21/32" id x 1" od x .054 hardened

1шт.

7

86624173

WASHER,1.09" ID x 1.5" OD x 0.06" Thk

4шт.

8

86624174

WASHER,1.09" ID x 1.5" OD x 0.12" Thk

6шт.

9

246676A1

RIM

WHEEL wheel, nylon, Years: -01-SEP-06

2шт.

Used with wheel assembly 306031A1

1шт.

9

87604021

WHEEL DISC

black nylon half, 16" cleaner wheel, Start Year: 01-OCT-06

2шт.

Used with wheel assembly 306031A1

1шт.

9

249935A1

WHEEL

nylon gauge, Years: -01-SEP-06

2шт.

Used with wheel assembly 413863A1

1шт.

10

324461A1

BALL BEARING

16 mm bore x 40 mm wide

2шт.

11

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball 1.78 x .73 x .62 id

4шт.

11

1268017C91GV

BEARING

Value, Ball Bearing

4шт.

12

324180A1

BEARING CAP,35.2 mm OD x 7.62 mm

bearing

4шт.

13

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing retainer

2шт.

14

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

15

249935A1

WHEEL

nylon gauge, Years: -01-SEP-06

2шт.

Used with wheel assembly 306031A1

1шт.

15

87604612

WHEEL

black steel half, 16" cleaner wheel, Start Year: 01-OCT-06

2шт.

Used with wheel assembly 306031A1

1шт.

15

141678A1

RIM

WHEEL disc, gauge wheel for 3.2" assembly

2шт.

Used with wheel assembly 413863A1

1шт.

16

86624111

RIVET,6.35mm OD x 14.29mm L

24шт.

17

1263977C1

BOLT

lk 3/8"-16 x 3/4", G8 with chemical lock

2шт.

18

436702A1

POINT

cast furrow point, complete

1шт.

19

175598A1

PIN,25.4mm OD x 120mm L

flanged 1" od hardened with 1"-12 threaded end

2шт.

20

280431

NUT,1/2"-13, G5

2шт.

21

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

6шт.

22

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

16шт.

Used with wheel assembly 306031A1

1шт.

22

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

Used with wheel assembly 413863A1

1шт.

23

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

3шт.

24

88685

BOLT,Hex, 5/8" x 1 1/2", Gr 8, Full Thd

1шт.

RH Wheel

1шт.

24a

86622982

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

Hex, 5/8"-11 x 1 3/4", G8, LH, Full Thd

1шт.

LH Wheel

1шт.

25

87023126

BOLT,Hex, 5/8" - 11 x 3", LH Thread, Gr 5

1шт.

RH Wheel

1шт.

25

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

LH Wheel

1шт.

26

86983484

ARM

cast gauge wheel LH

1шт.

27

1337971C1

DISC

355.6 mm x 3.5 mm 6-hole opener/square

2шт.

28

436708A1

SUPPORT

cast disc LH

1шт.

29

86983485

ARM

cast gauge wheel RH

1шт.

30

128633C1

TYRE/TIRE

disc opener gauge wheel, Years: -01-SEP-06

2шт.

Used with wheel assembly 306031A1

1шт.

30

87602293

COMPACTOR WHEEL

4.5 x 16 gauge, Start Year: 01-OCT-06

2шт.

Used with wheel assembly 306031A1

1шт.

30

194063A1

TYRE/TIRE

3.2" x 16" gauge wheel, Years: -01-SEP-06

2шт.

Used with wheel assembly 413863A1

1шт.

30

87602561

TYRE/TIRE

3 x 16 narrow gauge, Start Year: 01-OCT-06

2шт.

Used with wheel assembly 413863A1

1шт.

31

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

32

145458

SERRATED NUT,5/16"-18 GR 5 ZND

26шт.

33

87524

LOCK PIN,6.35mm OD x 34.92mm L, Slotted

1шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

35

84243285

SHOE

Assembly, Seed With In Furrow Fertilizer Slot

1шт.

Выбрано товаров: 63
