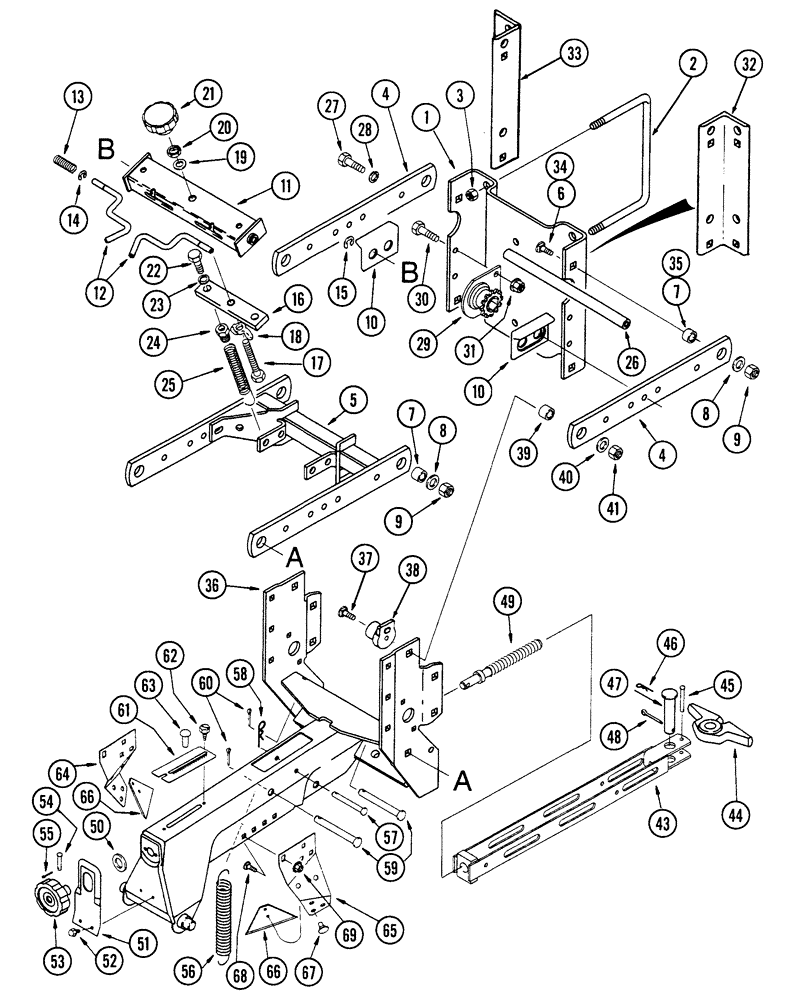

Запчасти Case IH 1200 (L.10.F[02]) - ROW UNIT FRAME (BSN CBJ0001596) L - Field Processing
№
Артикул
Название
Примечание
Количество
1
141728C4
CHANNEL
bracket head
1шт.
2
1250813C1
U-BOLT
us 5/8"-11 x 7" x 8 1/4", G5, 2" thread
2шт.
4
436740A1
BAR
link, regular upper
2шт.
4
436743A1
LINK
extension, upper bar
2шт.
Extended Row Unit for Splitter Planters
1шт.
5
436741A1
SUPPORT
linkage lower regular (The distance from mount hole to back of crosstube is 72 mm)
1шт.
5
123145A2
SUPPORT
lower link
1шт.
Extended Row Unit for Splitter Planters
1шт.
Not Shown
1шт.
6
280502
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd
4шт.
6
88530
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5
4шт.
7
137512C3
BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L
link pivot
4шт.
7
1254302C1
BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L
link pivot
4шт.
Used with long linkage
1шт.
8
87364
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
4шт.
10
436746A1
BRACKET
spring pressure adjuster
2шт.
11
436745A1
CHANNEL
support, spring mount
1шт.
12
141154A1
LEVER
3/8" od bent, quick adjust
2шт.
13
376768R1
SPRING
C .048" wire x .5" od x 1.52" long
2шт.
14
86624102
SNAP RING,#37, .300" Dia, E-Type
2шт.
16
141156A1
PLATE
spring adjustment
1шт.
17
86624004
BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5, Full Thd
1шт.
18
129-400
WING NUT,1/2"-13
1шт.
19
87364
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
1шт.
20
86632558
JAM NUT,Jam, 1/2"-13, G5
1шт.
21
329636A1
KNOB
1/2"-13, G2B
1шт.
22
87670
BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5
2шт.
23
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
24
436747A1
PLUG
spring 1/2"-13
2шт.
25
436748A1
SPRING
E .244" wire x 1.5" od x 6.64" long
2шт.
26
183502A1
SPACER
shaft 3/4" od x 11.85" long
1шт.
27
88206
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
28
80680
LOCK WASHER,3/8 0.381 CST ZND
2шт.
29
103579A1
BEARING ASSY,0.894" ID x 3.62" OD x 1.875"
with bearing
1шт.
30
88206
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
31
247780
SERRATED NUT,Flg, USR, 3/8"-16
1шт.
32
127475A2
ANGLE
row unit mounting extension
1шт.
33
275124A2
ANGLE
row extension, yield, LH
1шт.
34
280185
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
4шт.
35
1254302C1
BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L
link pivot
4шт.
36
433719A1
FRAME
row unit planter
1шт.
37
87972
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
2шт.
38
303377A1
BUSHING
hopper pivot
2шт.
39
137512C3
BUSHING,13.5mm ID x 22.23mm OD x 13.5mm L
link pivot
2шт.
40
87364
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
2шт.
43
147276C5
BAR
tension
1шт.
44
436712A1
BRACKET
wobble
1шт.
45
147310C1
HEADED PIN,6.35mm OD x 69.85mm L
pointed, 1/4" x 2 3/4"
1шт.
46
86624096
COTTER PIN,Int, 3/16 x .080"
1шт.
47
86624066
CLEVIS PIN,19.05mm OD x 45.62mm L
1шт.
48
86523851
COTTER PIN,5/32" x 1 1/4"
1шт.
49
1279684C1
ROD
depth adjusting
1шт.
50
86624189
WASHER,0.66" ID x 1.31" OD x 0.15" Thk
1шт.
51
436714A1
STRAP
detent
1шт.
52
86624112
SELF-TAP SCREW,HWH, #10 - 24 x 1/2"
2шт.
53
1279740C91
KNOB
detent, depth adjusting
1шт.
54
86624076
HEADED PIN,1/4" x 1 1/4", G5
1шт.
55
87394
COTTER PIN,1/8" x 1/2"
1шт.
56
436715A1
SPRING
E .244" wire x 1.48" od x 9.8" long
1шт.
57
147310C1
HEADED PIN,6.35mm OD x 69.85mm L
pointed, 1/4" x 2 3/4"
1шт.
58
86624096
COTTER PIN,Int, 3/16 x .080"
1шт.
59
86624072
HEADED PIN,12.7mm OD x 69.85mm L
2шт.
60
394818
COTTER PIN,M5 x 25
2шт.
61
147326C2
GAUGE
depth, Years: -21-MAY-01
1шт.
61
413706A1
GAUGE
depth, Start Year: 22-MAY-01
1шт.
62
86624112
SELF-TAP SCREW,HWH, #10 - 24 x 1/2"
2шт.
63
1277597C1
STUD
barbed #12 x 3/4" RH
1шт.
64
413684A1
SCRAPER
blade LH
1шт.
65
413687A1
SCRAPER
blade RH
1шт.
66
436705A1
BLADE
scraper
1шт.
67
147274C1
RIVET,4.78mm OD x 10mm L
fh 3/16" x 3/8" special
2шт.
68
280647
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 5/8", Gr 5, Full Thd
4шт.
69
145458
SERRATED NUT,5/16"-18 GR 5 ZND
4шт.
Выбрано товаров: 77
