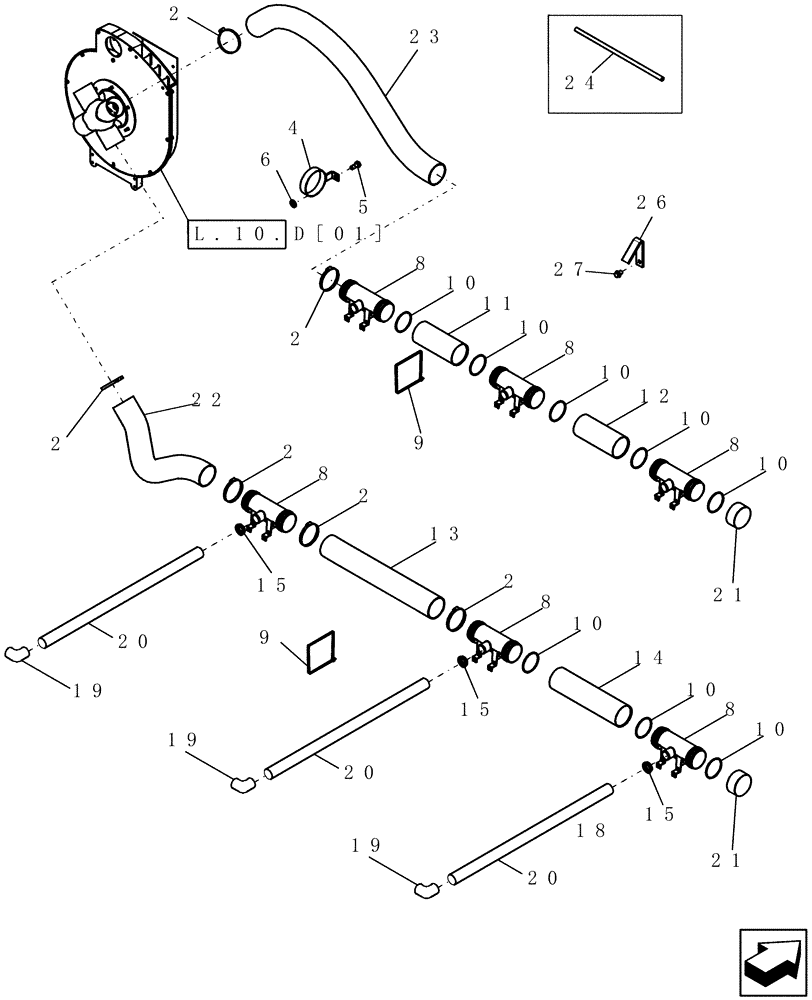

Запчасти Case IH 1200 (L.10.E[06]) - VACUUM AIR SYSTEM - 12 ROW WIDE MOUNTED STACKER ASN CBJ036001 L - Field Processing

2

9706924

HOSE CLAMP,103.1mm - 127mm

12шт.

4

323214A1

GUIDE

4 1/2" flex hose

2шт.

5

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

, Serial Range: -CBJ036114

4шт.

5

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

, Start Serial: CBJ036115

2шт.

6

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

, Serial Range: -CBJ036114

4шт.

6

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

, Start Serial: CBJ036115

2шт.

8

300766A1

TEE

vacuum manifold

12шт.

9

112620A1

CABLE TIE

CABLE STRAP 34"

24шт.

10

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

20шт.

11

307971A1

TUBE,116.88 mm ID, 125 mm OD, 444 mm Length

vacuum 5" x 444 mm long

2шт.

36" Spacing

1шт.

11

87582435

AIR INTAKE TUBE,116.88 mm ID x 125 mm OD x 1001 mm L

vacuum 5" x 1001 mm long

2шт.

38 & 40" Spacing

1шт.

12

87573439

TUBE,116.88 mm ID x 125 mm OD x 838 mm L

vacuum 5" x 838 mm long

2шт.

36" Spacing

1шт.

12

87662963

TUBE,116.88 mm ID x 125 mm OD x 526 mm L

vacuum 5" x 526 mm long

2шт.

38" Spacing

1шт.

12

87573440

TUBE,116.88 mm ID x 125 mm OD x 619 mm L

vacuum 5" x 619 mm long

2шт.

40" Spacing

1шт.

13

344907A1

TUBE,116.88 mm ID, 125 mm OD, 708 mm Length

vacuum 5" x 708 mm

2шт.

36" Spacing

1шт.

13

301442A1

TUBE,116.88 mm ID, 125 mm OD, 759 mm Length

vacuum 5" x 759 mm long

2шт.

38" Spacing

1шт.

13

308301A1

TUBE,116.88 mm ID, 125 mm OD, 810 mm Length

vacuum 5" x 810 mm long

2шт.

40" Spacing

1шт.

14

344907A1

TUBE,116.88 mm ID, 125 mm OD, 708 mm Length

vacuum 5" x 708 mm

2шт.

36" Spacing

1шт.

14

87573439

TUBE,116.88 mm ID x 125 mm OD x 838 mm L

vacuum 5" x 838 mm long, Serial Range: -CBJ036114

2шт.

38" Spacing

1шт.

14

301442A1

TUBE,116.88 mm ID, 125 mm OD, 759 mm Length

vacuum 5" x 759 mm long, Start Serial: CBJ036115

2шт.

38" Spacing

1шт.

14

308301A1

TUBE,116.88 mm ID, 125 mm OD, 810 mm Length

vacuum 5" x 810 mm long

2шт.

40" Spacing

1шт.

11-14

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.

15

305519A1

PLUG

vacuum manifold restriction

6шт.

19

87500119

TUBE

90º 50 mm - vacuum

12шт.

20

87501726

HOSE

vacuum 2" x 50' bulk

12шт.

Standard row unit

1шт.

20

87501726

HOSE

vacuum 2" x 50' bulk

12шт.

Extended row unit

1шт.

21

300767A1

CAP

vacuum manifold end

4шт.

22

327658A1

HOSE

flex 4 1/2" id x 820 mm, Serial Range: -CBJ036114

2шт.

22

447890A1

HOSE,114.30 mm ID x 1500.00 mm

, Start Serial: CBJ036115

2шт.

23

327659A1

HOSE

flex 4 1/2" id x 3900 mm

2шт.

22, 23

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

24

238600A3

HOSE,6.35 mm ID x 1730.00 mm

1шт.

26

87690803

BRACKET

deflector, vacuum hose, Start Serial: CBJ036115

2шт.

27

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

, Start Serial: CBJ036115

2шт.

VR drive or markers

1шт.

27

50215

BOLT,Hex Serr Flg, 3/8" - 16 x 1/2"

, Start Serial: CBJ036115

2шт.

Mech drive no markers

1шт.

27

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

, Start Serial: CBJ036115

2шт.

VR drive with markers

1шт.
