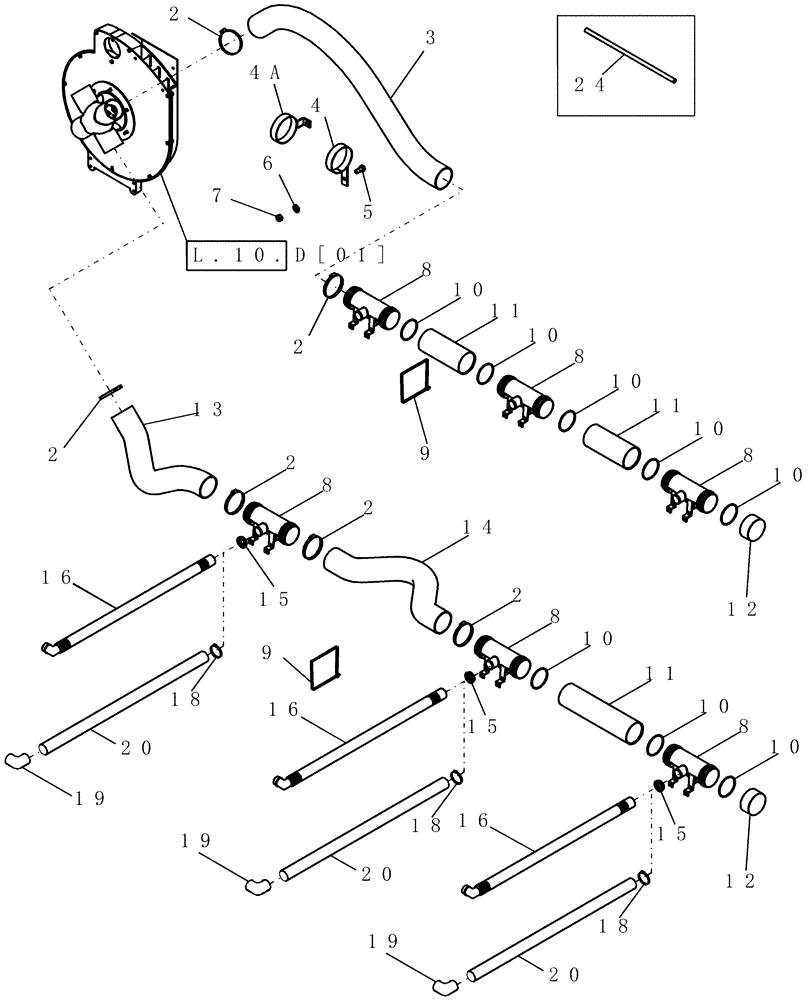

Запчасти Case IH 1200 (L.10.E[05]) - VACUUM AIR SYSTEM - 12 ROW WIDE MOUNTED STACKER BSN CBJ036000 L - Field Processing

2

9706924

HOSE CLAMP,103.1mm - 127mm

12шт.

3

327659A1

HOSE

flex 4 1/2" id x 3900 mm

2шт.

4

323225A1

GUIDE

4 1/2" flex hose

2шт.

36" Spacing

1шт.

38 & 40" Spacing

1шт.

4a

323214A1

GUIDE

4 1/2" flex hose

2шт.

36" Spacing

1шт.

38 & 40" Spacing

1шт.

5

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

6

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

7

280431

NUT,1/2"-13, G5

4шт.

8

300766A1

TEE

vacuum manifold

12шт.

9

112620A1

CABLE TIE

CABLE STRAP 34"

24шт.

10

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

16шт.

11

328201A1

TUBE,116.88 mm ID, 125 mm OD, 695 mm Length

vacuum 5" x 695 mm long

6шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

36" Spacing

1шт.

11

301442A1

TUBE,116.88 mm ID, 125 mm OD, 759 mm Length

vacuum 5" x 759 mm long

6шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

38" Spacing

1шт.

11

308301A1

TUBE,116.88 mm ID, 125 mm OD, 810 mm Length

vacuum 5" x 810 mm long

6шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

40" Spacing

1шт.

12

300767A1

CAP

vacuum manifold end

4шт.

13

327658A1

HOSE

flex 4 1/2" id x 820 mm

2шт.

For special applications cut required length from 362013A1 bulk hose

1шт.

14

409368A1

HOSE

flex 4 1/2" x 1120 mm

2шт.

For special applications cut required length from 362013A1 bulk hose

1шт.

11, 13 & 1

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.

15

305519A1

PLUG

vacuum manifold restriction

6шт.

16

377590A1

HOSE,50.95 mm ID, 52.00 mm ID x 960.00 mm

, Years: -31-MAR-05

12шт.

18

82012728

COLLAR,50mm - 65mm, Worm Gear

, Years: 01-APR-05-01-APR-06

12шт.

19

66000962

ELBOW

90º 50 mm - Brazil vacuum hose, Start Year: 01-APR-05

12шт.

20

87501726

HOSE

vacuum 2" x 50' bulk, Start Year: 01-APR-05

12шт.

24

238600A3

HOSE,6.35 mm ID x 1730.00 mm

1шт.
