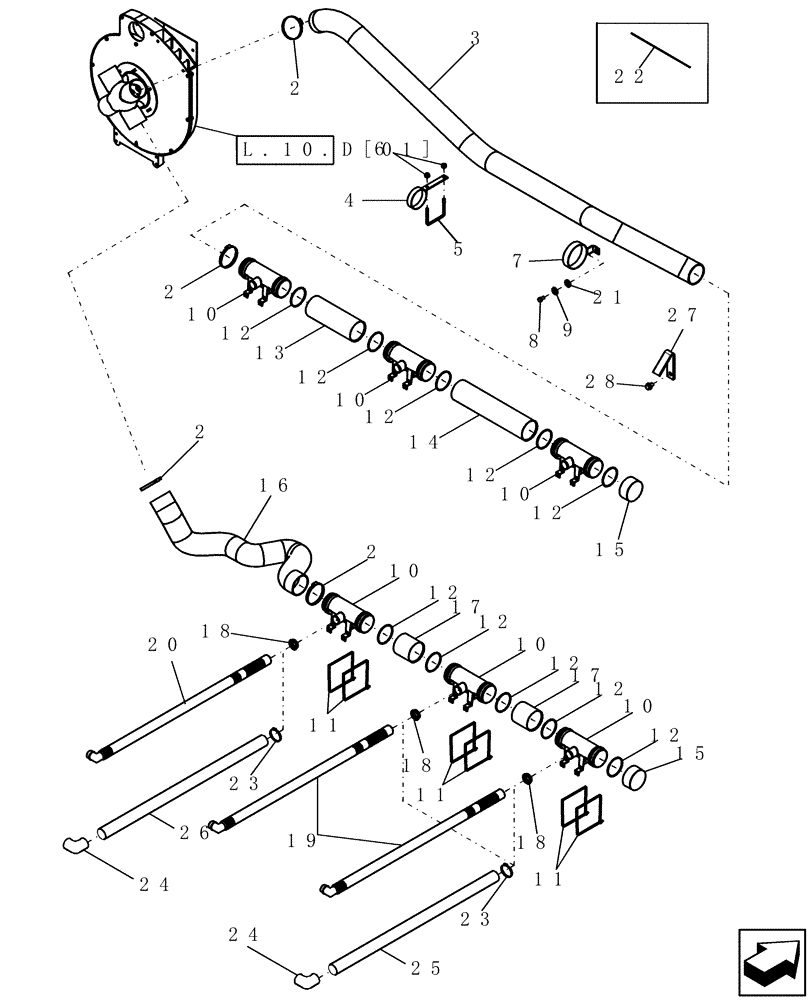

Запчасти Case IH 1200 (L.10.E[04]) - VACUUM AIR SYSTEM - 12 ROW NARROW MOUNTED STACKER L - Field Processing

2

9706924

HOSE CLAMP,103.1mm - 127mm

, Serial Range: -CBJ036114

8шт.

2

9706924

HOSE CLAMP,103.1mm - 127mm

, Start Serial: CBJ036115

10шт.

3

430324A1

HOSE,114.30 mm ID x 3200.00 mm

, Serial Range: -CBJ036114

2шт.

Tube replacements may be cut to required lengths from bulk tube 362013A1

1шт.

3

87675626

HOSE,4.50 mm ID

, Start Serial: CBJ036115

2шт.

Tube replacements may be cut to required lengths from bulk tube 362013A1

1шт.

3

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

4

323222A1

GUIDE

4 1/2" flex hose, Years: -01-MAR-05

2шт.

5

229984A1

U-BOLT,1/2" - 13 x 5 1/4", Carbon Steel

BOLT "U" us 1/2"-13 x 6" x 5 1/4", Years: -01-MAR-05

2шт.

6

280431

NUT,1/2"-13, G5

, Years: -01-MAR-05

4шт.

7

323214A1

GUIDE

4 1/2" flex hose, Start Year: 01-APR-05

2шт.

8

86622978

BOLT,Hex, 3/8" - 16 x 5/8", Gr 8, Full Thd

, Years: -01-APR-05, Serial Range: -CBJ036114

2шт.

8

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

, Start Year: 01-APR-05, Start Serial: CBJ036115

2шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

, Years: -01-APR-05, Serial Range: -CBJ036114

2шт.

10

300766A1

TEE

vacuum manifold

12шт.

11

112620A1

CABLE TIE

CABLE STRAP 34"

24шт.

12

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

20шт.

13

308014A1

TUBE,116.88 mm ID, 125 mm OD, 350 mm Length

vacuum 5" x 350 mm long, Years: -01-APR-05, Serial Range: -CBJ036114

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

13

307971A1

TUBE,116.88 mm ID, 125 mm OD, 444 mm Length

vacuum 5" x 444 mm long, Start Year: 01-APR-05, Start Serial: CBJ036115

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

14

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

vacuum 5" x 556 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

13, 14

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.

15

300767A1

CAP

vacuum manifold end

4шт.

16

447890A1

HOSE,114.30 mm ID x 1500.00 mm

2шт.

Tube replacements may be cut to required lengths from bulk tube 362013A1

1шт.

16

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

17

308016A1

TUBE,116.88 mm ID, 125 mm OD, 120 mm Length

vacuum 5" x 120 mm long

4шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

17

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

vacuum 5" x 556 mm long

4шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

18

305519A1

PLUG

vacuum manifold restriction

6шт.

19

377590A1

HOSE,50.95 mm ID, 52.00 mm ID x 960.00 mm

, Years: -01-MAR-05

10шт.

17, 19

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.

20

377589A1

HOSE,50.95 mm ID, 52.00 mm ID x 1190.00 mm

, Years: -31-MAR-05

2шт.

21

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

, Years: -01-APR-05, Serial Range: -CBJ036114

2шт.

21

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

, Start Year: 01-APR-05, Start Serial: CBJ036115

2шт.

22

238600A3

HOSE,6.35 mm ID x 1730.00 mm

1шт.

23

82012728

COLLAR,50mm - 65mm, Worm Gear

12шт.

24

66000962

ELBOW

90º 50 mm - Brazil vacuum hose, Years: -01-APR-05, Serial Range: -CBJ036114

12шт.

24

87500119

TUBE

90º 50 mm - vacuum, Start Year: 01-APR-05, Start Serial: CBJ036115

12шт.

25

87501726

HOSE

vacuum 2" x 50' bulk, Start Year: 01-APR-05

10шт.

26

87501726

HOSE

vacuum 2" x 50' bulk, Start Year: 01-APR-05

2шт.

Extended row unit

1шт.

27

87690803

BRACKET

deflector, vacuum hose, Start Serial: CBJ036115

2шт.

28

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

, Start Serial: CBJ036115

2шт.

VR drive or markers

1шт.

28

50215

BOLT,Hex Serr Flg, 3/8" - 16 x 1/2"

, Start Serial: CBJ036115

2шт.

Mech drive no markers

1шт.

28

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

, Start Serial: CBJ036115

2шт.

VR drive with markers

1шт.
