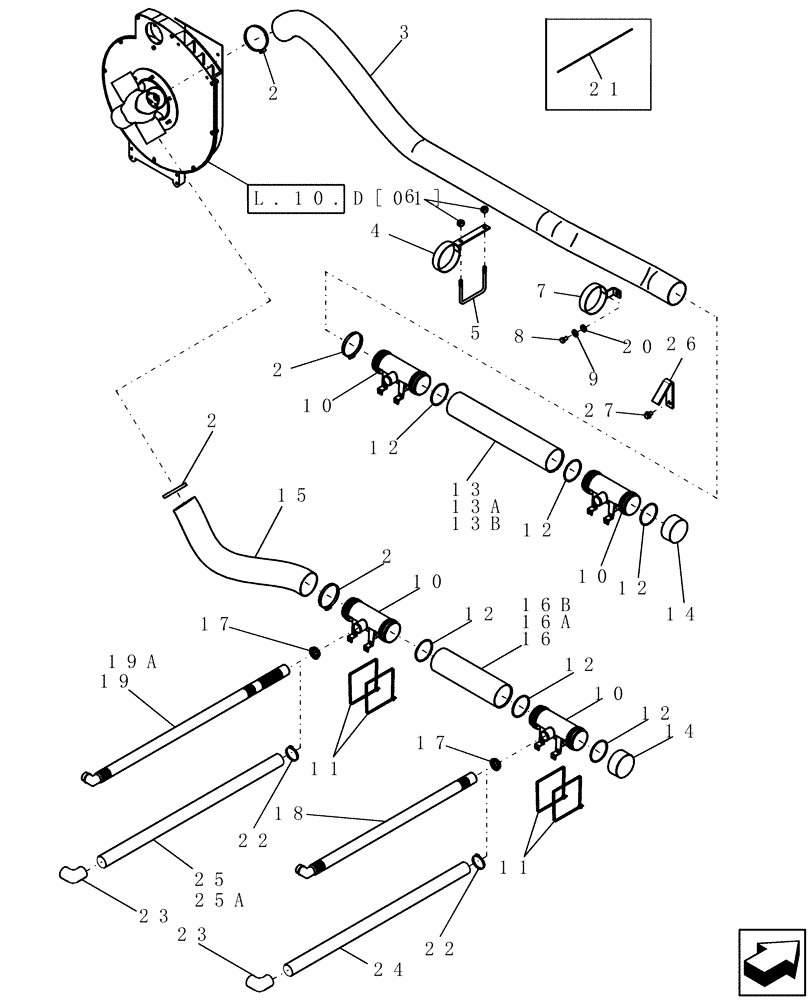

Запчасти Case IH 1200 (L.10.E[03]) - VACUUM AIR SYSTEM - 8 ROW WIDE MOUNTED STACKER L - Field Processing

2

9706924

HOSE CLAMP,103.1mm - 127mm

, Serial Range: -CBJ036114

8шт.

2

9706924

HOSE CLAMP,103.1mm - 127mm

, Start Serial: CBJ036115

10шт.

3

308436A1

HOSE,114.3 mm ID x 2700.00 mm

vacuum fan, Serial Range: -CBJ036114

2шт.

Tube replacements may be cut to required lengths from bulk tube 362013A1

1шт.

3

327659A1

HOSE

flex 4 1/2" id x 3900 mm, Start Serial: CBJ036115

2шт.

Tube replacements may be cut to required lengths from bulk tube 362013A1

1шт.

3

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

4

323222A1

GUIDE

4 1/2" flex hose, Years: -01-MAR-05

2шт.

5

229984A1

U-BOLT,1/2" - 13 x 5 1/4", Carbon Steel

BOLT "U" us 1/2"-13 x 6" x 5 1/4", Years: -01-MAR-05

2шт.

6

280431

NUT,1/2"-13, G5

, Years: -01-MAR-05

4шт.

7

323214A1

GUIDE

4 1/2" flex hose, Start Year: 01-APR-05

2шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

, Years: -01-APR-05, Serial Range: -CBJ036114

2шт.

8

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

, Start Year: 01-APR-05, Start Serial: CBJ036115

2шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

, Start Year: 01-APR-05, Start Serial: CBJ036115

2шт.

10

300766A1

TEE

vacuum manifold

8шт.

11

112620A1

CABLE TIE

CABLE STRAP 34"

16шт.

12

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

12шт.

13

308302A1

TUBE,116.88 mm ID, 125 mm OD, 584 mm Length

vacuum 5" x 584 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

36" Spacing

1шт.

13a

307972A1

TUBE,116.88 mm ID, 125 mm OD, 647 mm Length

vacuum 5" x 647 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

38" Spacing

1шт.

13b

328201A1

TUBE,116.88 mm ID, 125 mm OD, 695 mm Length

vacuum 5" x 695 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

40" Spacing

1шт.

14

300767A1

CAP

vacuum manifold end

4шт.

15

447890A1

HOSE,114.30 mm ID x 1500.00 mm

2шт.

Tube replacements may be cut to required lengths from bulk tube 362013A1

1шт.

15

362013A1

HOSE,114.30 mm ID x 7620.00 mm

1шт.

16

308014A1

TUBE,116.88 mm ID, 125 mm OD, 350 mm Length

vacuum 5" x 350 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

36" Spacing

1шт.

16a

308014A1

TUBE,116.88 mm ID, 125 mm OD, 350 mm Length

vacuum 5" x 350 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

38" Spacing

1шт.

16b

307971A1

TUBE,116.88 mm ID, 125 mm OD, 444 mm Length

vacuum 5" x 444 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

13 & 16

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.

17

305519A1

PLUG

vacuum manifold restriction

4шт.

18

377590A1

HOSE,50.95 mm ID, 52.00 mm ID x 960.00 mm

, Years: -01-MAR-05

6шт.

36 & 38" Spacing

1шт.

18

377590A1

HOSE,50.95 mm ID, 52.00 mm ID x 960.00 mm

, Years: -31-MAR-05

8шт.

40" Spacing

1шт.

19

377589A1

HOSE,50.95 mm ID, 52.00 mm ID x 1190.00 mm

, Years: -31-MAR-05

1шт.

36" Spacing

1шт.

19

377589A1

HOSE,50.95 mm ID, 52.00 mm ID x 1190.00 mm

, Years: -31-MAR-05

2шт.

38" Spacing

1шт.

19a

442135A1

HOSE

molded flex 51 mm x 1140 mm, Years: -31-MAR-05

1шт.

40" Spacing

1шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

, Years: -01-APR-05, Serial Range: -CBJ036114

2шт.

20

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

, Start Year: 01-APR-05, Start Serial: CBJ036115

2шт.

21

238600A3

HOSE,6.35 mm ID x 1730.00 mm

1шт.

22

82012728

COLLAR,50mm - 65mm, Worm Gear

4шт.

23

66000962

ELBOW

90º 50 mm - Brazil vacuum hose, Years: -01-APR-05, Serial Range: -CBJ036114

4шт.

23

87500119

TUBE

90º 50 mm - vacuum, Start Year: 01-APR-05, Start Serial: CBJ036115

4шт.

24

87501726

HOSE

vacuum 2" x 50' bulk, Start Year: 01-APR-05

6шт.

36 & 38" Spacing

1шт.

24

87501726

HOSE

vacuum 2" x 50' bulk, Start Year: 01-APR-05

8шт.

40" Spacing

1шт.

25

87501726

HOSE

vacuum 2" x 50' bulk, Start Year: 01-APR-05

1шт.

36" Spacing

1шт.

Extended row unit

1шт.

25

87501726

HOSE

vacuum 2" x 50' bulk, Start Year: 01-APR-05

2шт.

38" Spacing

1шт.

Extended row unit

1шт.

25a

87501726

HOSE

vacuum 2" x 50' bulk, Start Year: 01-APR-05

1шт.

40" Spacing

1шт.

Extended row unit

1шт.

26

87690803

BRACKET

deflector, vacuum hose, Start Serial: CBJ036115

2шт.

27

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

, Start Serial: CBJ036115

2шт.

VR drive or markers

1шт.

27

50215

BOLT,Hex Serr Flg, 3/8" - 16 x 1/2"

, Start Serial: CBJ036115

2шт.

Mech drive no markers

1шт.

27

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

, Start Serial: CBJ036115

2шт.

VR drive with markers

1шт.
