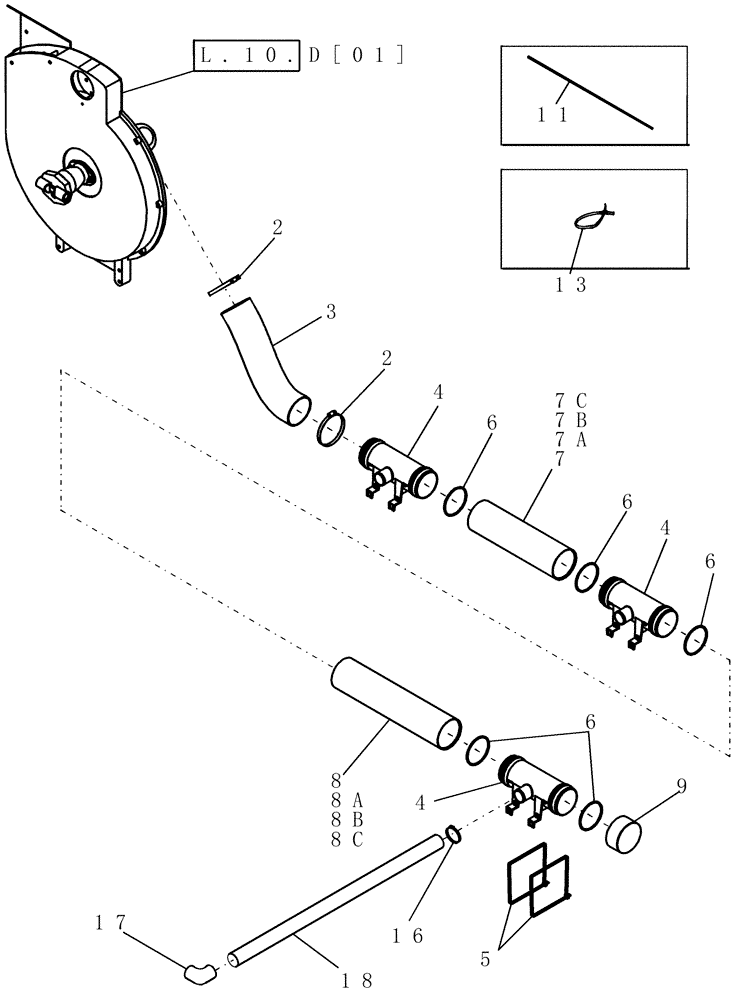

Запчасти Case IH 1200 (L.10.E[02]) - VACUUM AIR SYSTEM - 6 ROW RIGID MOUNTED L - Field Processing

2

9706924

HOSE CLAMP,103.1mm - 127mm

4шт.

3

251079A2

HOSE

vacuum fan

2шт.

4

300766A1

TEE

vacuum manifold

6шт.

5

112620A1

CABLE TIE

CABLE STRAP 34"

1шт.

6

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

10шт.

7

308302A1

TUBE,116.88 mm ID, 125 mm OD, 584 mm Length

vacuum 5" x 584 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

6 Row 36" Spacing

1шт.

7a

307971A1

TUBE,116.88 mm ID, 125 mm OD, 444 mm Length

vacuum 5" x 444 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

6 Row Rigid Trailing and Rigid Mounted

1шт.

7b

307972A1

TUBE,116.88 mm ID, 125 mm OD, 647 mm Length

vacuum 5" x 647 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

6 Row 38" Spacing

1шт.

7c

328201A1

TUBE,116.88 mm ID, 125 mm OD, 695 mm Length

vacuum 5" x 695 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

6 Row 40" Spacing

1шт.

7 & 8

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.

8

344907A1

TUBE,116.88 mm ID, 125 mm OD, 708 mm Length

vacuum 5" x 708 mm

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

6 Row 36" Spacing

1шт.

8a

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

vacuum 5" x 556 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

6 Row Rigid Trailing and Rigid Mounted

1шт.

8b

301442A1

TUBE,116.88 mm ID, 125 mm OD, 759 mm Length

vacuum 5" x 759 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

6 Row 38" Spacing

1шт.

8c

308301A1

TUBE,116.88 mm ID, 125 mm OD, 810 mm Length

vacuum 5" x 810 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

6 Row 40" Spacing

1шт.

9

300767A1

CAP

vacuum manifold end

2шт.

11

238600A3

HOSE,6.35 mm ID x 1730.00 mm

1шт.

13

112620A1

CABLE TIE

CABLE STRAP 34"

4шт.

16

82012728

COLLAR,50mm - 65mm, Worm Gear

6шт.

17

66000962

ELBOW

90º 50 mm - Brazil vacuum hose

6шт.

18

87501726

HOSE

vacuum 2" x 50' bulk

6шт.
