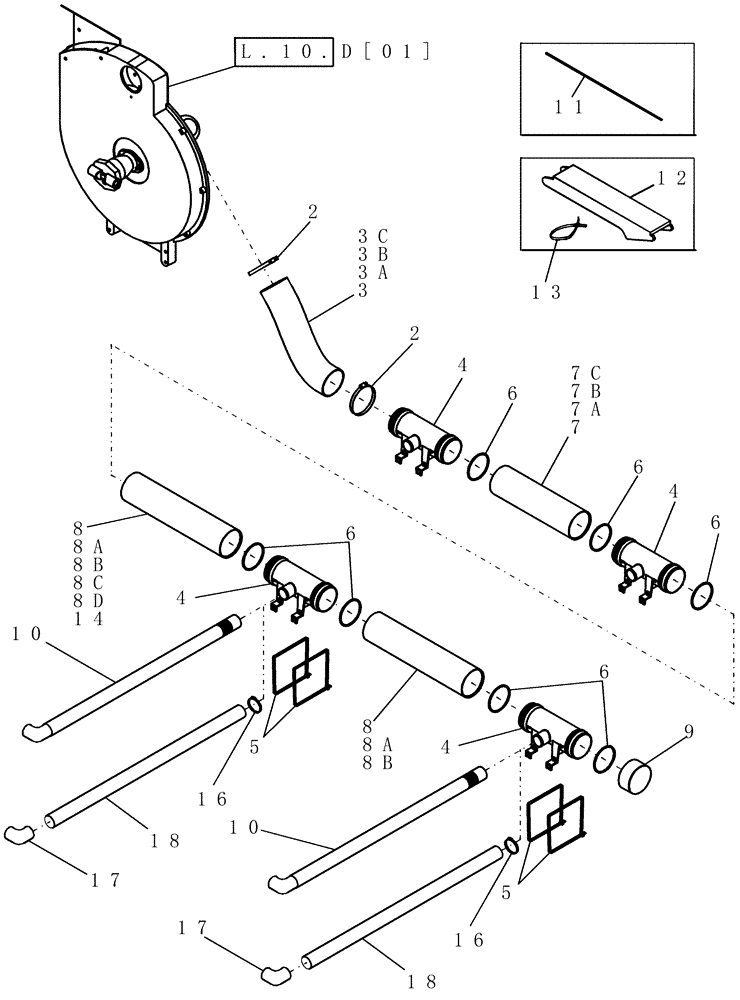

Запчасти Case IH 1200 (L.10.E[01]) - VACUUM AIR SYSTEM - RIGID MOUNTED AND RIGID TRAILING L - Field Processing

2

9706924

HOSE CLAMP,103.1mm - 127mm

4шт.

3

251079A2

HOSE

vacuum fan

2шт.

8 Row Narrow

1шт.

3a

251079A2

HOSE

vacuum fan

2шт.

8 Row Wide

1шт.

3b

251079A2

HOSE

vacuum fan

2шт.

6 Row Rigid Trailing

1шт.

3c

251079A2

HOSE

vacuum fan

2шт.

8 Row Rigid Trailing

1шт.

4

300766A1

TEE

vacuum manifold

8шт.

8 Row Rigid Trailing

1шт.

4

300766A1

TEE

vacuum manifold

6шт.

6 Row Rigid Trailing

1шт.

5

112620A1

CABLE TIE

CABLE STRAP 34"

1шт.

6

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

14шт.

8 Row Rigid Trailing Without Endwise Transport

1шт.

6

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

12шт.

8 Row Rigid Trailing With Endwise Transport

1шт.

6

238-3347

O-RING,4.225" ID x 4.645" OD x 0.21"

10шт.

6 Row Rigid Trailing

1шт.

7

307971A1

TUBE,116.88 mm ID, 125 mm OD, 444 mm Length

vacuum 5" x 444 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

8 Row Narrow

1шт.

7a

307972A1

TUBE,116.88 mm ID, 125 mm OD, 647 mm Length

vacuum 5" x 647 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

8 Row Wide

1шт.

7b

307971A1

TUBE,116.88 mm ID, 125 mm OD, 444 mm Length

vacuum 5" x 444 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

6 Row Rigid Trailing

1шт.

7c

307971A1

TUBE,116.88 mm ID, 125 mm OD, 444 mm Length

vacuum 5" x 444 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

8 Row Rigid Trailing

1шт.

7 & 8

362014A1

TUBE,116.88 mm ID, 125 mm OD, 6096 mm Length

vacuum 5" x 6096 mm (20' roll)

1шт.

8

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

vacuum 5" x 556 mm long

4шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

8 Row Narrow

1шт.

8a

301442A1

TUBE,116.88 mm ID, 125 mm OD, 759 mm Length

vacuum 5" x 759 mm long

4шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

8 Row Wide

1шт.

8b

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

vacuum 5" x 556 mm long

2шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

6 Row Rigid Trailing

1шт.

8c

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

vacuum 5" x 556 mm long

3шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

8 Row Rigid Trailing

1шт.

8d

393213A1

PLASTIC-RUBBER TUBE,116.88 mm ID, 125 mm OD

vacuum 5" x 678 mm long

1шт.

Tube replacements may be cut to required lengths from bulk tube 362014A1

1шт.

8 Row Rigid Trailing Without Endwise Transport

1шт.

Not Shown

1шт.

9

300767A1

CAP

vacuum manifold end

2шт.

10

377590A1

HOSE,50.95 mm ID, 52.00 mm ID x 960.00 mm

, Years: -31-MAR-05

8шт.

8 Row Rigid Trailing

1шт.

10

377590A1

HOSE,50.95 mm ID, 52.00 mm ID x 960.00 mm

, Years: -31-MAR-05

6шт.

6 Row Rigid Trailing

1шт.

11

238600A3

HOSE,6.35 mm ID x 1730.00 mm

1шт.

12

392766A1

MOUNTING CLIP

offset tee

4шт.

8 Row Rigid Trailing With Endwise Transport

1шт.

13

112620A1

CABLE TIE

CABLE STRAP 34"

4шт.

14

392921A1

PLASTIC-RUBBER TUBE

flex 4 1/2" id x 1020 mm

1шт.

8 Row Rigid Trailing With Endwise Transport

1шт.

16

82012728

COLLAR,50mm - 65mm, Worm Gear

, Start Year: 01-APR-05

8шт.

8 Row

1шт.

16

82012728

COLLAR,50mm - 65mm, Worm Gear

, Start Year: 01-APR-05

6шт.

6 Row

1шт.

17

66000962

ELBOW

90º 50 mm - Brazil vacuum hose, Start Year: 01-APR-05

8шт.

8 Row

1шт.

17

66000962

ELBOW

90º 50 mm - Brazil vacuum hose, Start Year: 01-APR-05

6шт.

6 Row

1шт.

18

87501726

HOSE

vacuum 2" x 50' bulk, Start Year: 01-APR-05

8шт.

8 Row

1шт.

18

87501726

HOSE

vacuum 2" x 50' bulk, Start Year: 01-APR-05

6шт.

6 Row

1шт.
