(L.10.D[12]) - FAN AND ELECTRONIC ASSEMBLY MOUNTING - 16 ROW MOUNTED STACKER VARIABLE RATE

Запчасти Case IH 1200 (L.10.D[12]) - FAN AND ELECTRONIC ASSEMBLY MOUNTING - 16 ROW MOUNTED STACKER VARIABLE RATE L - Field Processing

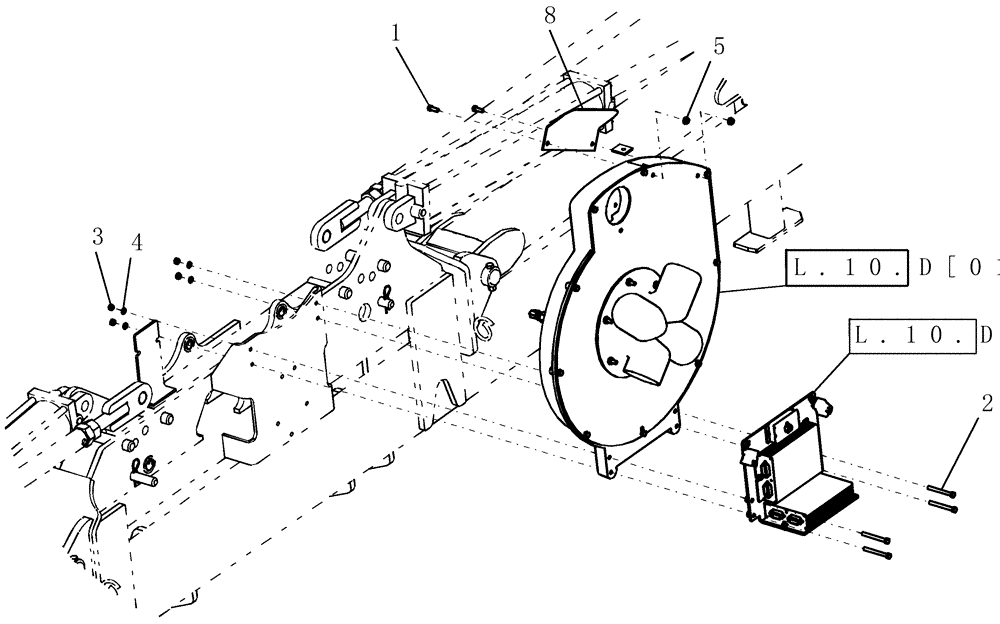

Схема запчастей Case IH 1200 - (L.10.D[12]) - FAN AND ELECTRONIC ASSEMBLY MOUNTING - 16 ROW MOUNTED STACKER VARIABLE RATE L - Field Processing
4
8
5
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

4шт.

3

9628503

NUT,3/8"-16, G5

4шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

8

412445A1

DEFLECTOR

fan outlet

1шт.
