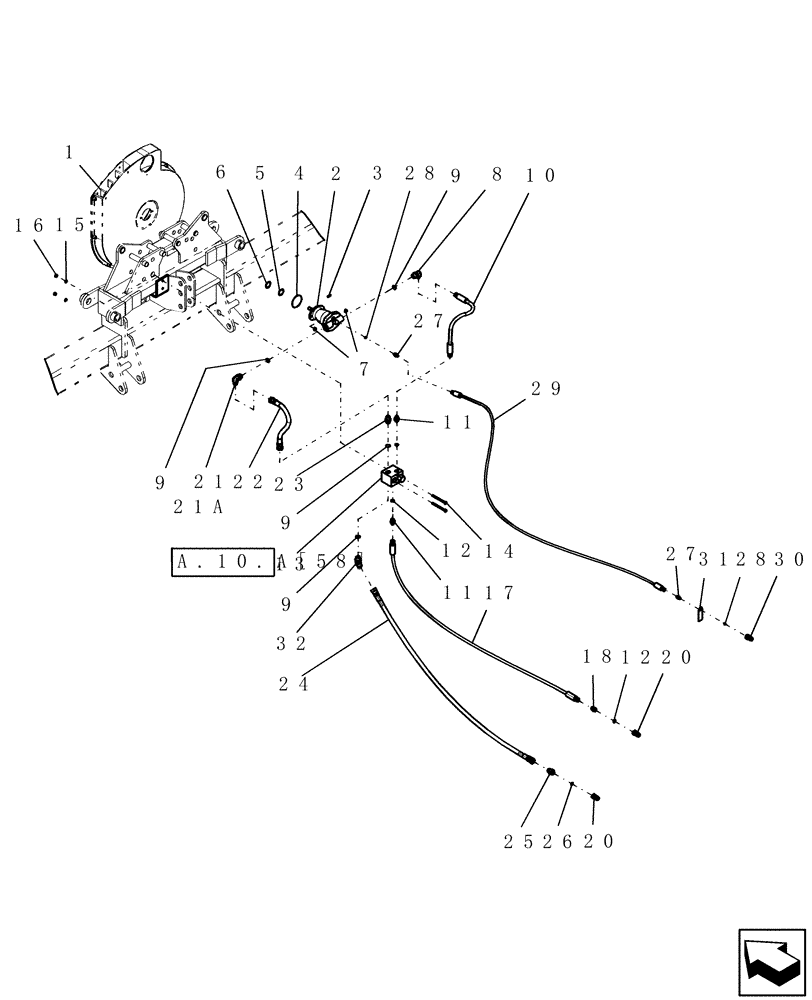

Запчасти Case IH 1200 (A.10.A[17]) - FAN MOTOR HYDRAULICS, MOUNTED STACKER FRAMES, MECHANICAL DRIVE, 8 ROW AND 12 ROW BSN CBJ036114 A - Distribution Systems

1

REF

INSTRUCTION

fan assembly - vacuum

1шт.

2

278188A1

MOTOR

9.8 cm3 (.6 in3) displacement, fan drive

1шт.

2

278188A1R

REMAN-HYD MOTOR

Remanufactured Hydraulic Pump

1шт.

2

278188A1C

REMAN-HYD MOTOR

Return Number

1шт.

3

55555C1

KEY

1/4" square

1шт.

4

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

5

D63349

SEAL

motor shaft

1шт.

6

271429

SNAP RING,1.625", Int, #162

1шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

8

84340

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

10

90880C1

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100 R17

1шт.

8 Row

1шт.

10

1304251C2

HYDRAULIC HOSE

1/2" x 41" fl

1шт.

12 Row Narrow

1шт.

11

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

13

296823A2

VALVE

check

1шт.

14

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

2шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

16

9628503

NUT,3/8"-16, G5

2шт.

17

195869C2

HYDRAULIC HOSE

1/2" x 75" fl

1шт.

8 Row

1шт.

17

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

12 Row Narrow

1шт.

18

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

20

87506450

QUICK MALE COUPLING

1/2"m-tip x 1/2" fb poppet style

2шт.

21

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

8 Row Wide and 12 Row Wide

1шт.

Includes O-ring

1шт.

21a

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

12 Row Narrow

1шт.

22

345137A1

HYDRAULIC HOSE

3/4" x 19" (485 mm) fl

1шт.

8 Row Wide and 12 Row Wide

1шт.

22

255002A1

HYDRAULIC HOSE,19.05 mm ID x 760.00 mm

3/4" x 30" fl

1шт.

12 Row Narrow

1шт.

23

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

24

250954A1

HYDRAULIC HOSE

3/4" x 75" (1905 mm) fl

1шт.

25

577993

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 16 ORB

1шт.

26

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

28

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

29

810570C2

HYDRAULIC HOSE

3/8" x 90" fl

1шт.

8 Row

1шт.

29

1284368C1

HYDRAULIC HOSE

3/8" x 100" fl

1шт.

12 Row Narrow

1шт.

30

187562C1

QUICK MALE COUPLING

9/16"-18

1шт.

31

86984798

TAG

warning, case drain

1шт.

31

87527165

WARNING DECAL

Case Drain French

1шт.

32

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.
