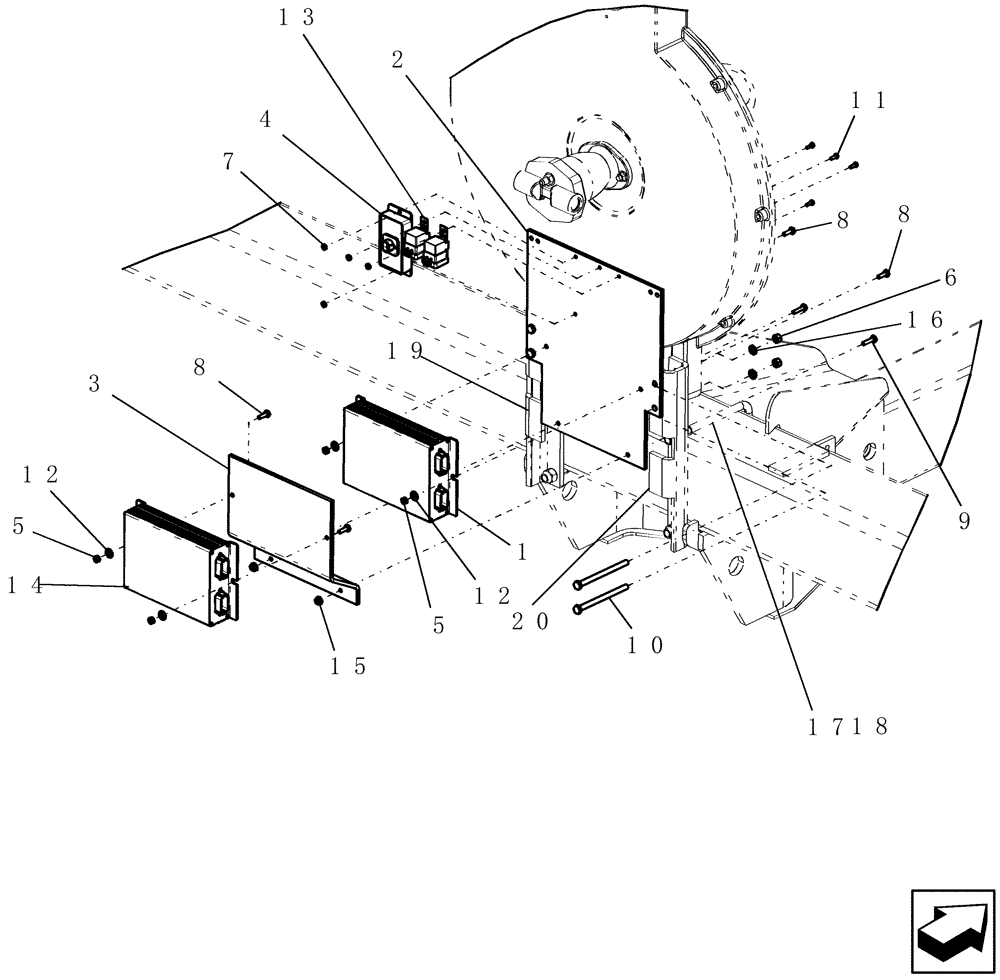

Запчасти Case IH 1200 (L.10.D[06]) - FAN AND ELECTRONIC ASSEMBLY MOUNTING, 6 & 8 ROW RIGID TRAILING (VARIABLE RATE) (FROM 11/2003) L - Field Processing

1

405514A1

CONTROL

module, monitor interface

1шт.

1

405514A1R

REMAN ELECT CONTROL

1200 CASE IH ADVANCED SEED METER PLANTER, module, monitor interface (11/01-7/08)

1шт.

1

405514A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87421244

BRACKET

electrical mounting

1шт.

3

87421755

BRACKET

controller mount

1шт.

4

284638A2

ELEC CONNECTOR,4 Pin

terminator, ASM monitor

1шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

6

9628503

NUT,3/8"-16, G5

4шт.

7

87304

NUT,#10-24

4шт.

8

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

9

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

10

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

4шт.

11

86624117

SCREW,Hex, #10 - 24 x 1/2"

4шт.

12

88538

LOCK WASHER,Ext-Int Tooth, 1/4"

4шт.

13

293256A2

RELAY,12V

12v 40 amp weatherproof

2шт.

14

405513A1

CONTROL

module, multi channel

1шт.

14

405513A1R

REMAN-MODULE

Module - Multi Channel

1шт.

14

405513A1C

CORE-MODULE

CORE-MODUL Return Number, MODULE

1шт.

15

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

16

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

17

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

18

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

19

366185A2

BRACKET

fan mounting LH

1шт.

20

366186A2

BRACKET

fan mounting RH

1шт.
