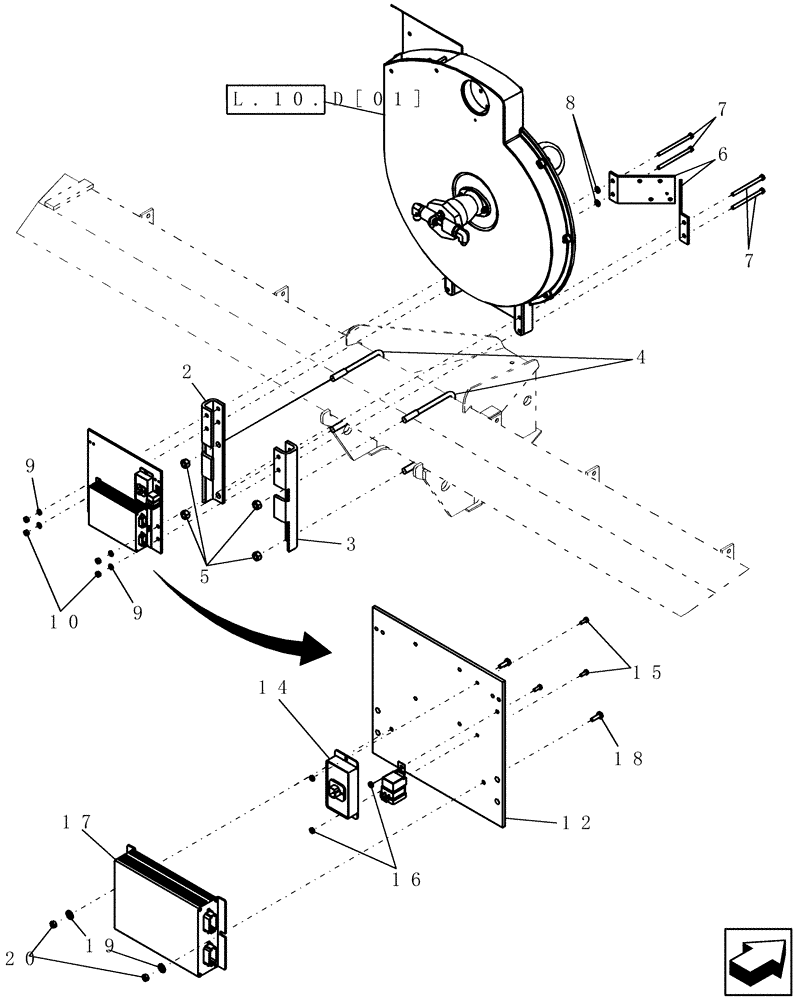

Запчасти Case IH 1200 (L.10.D[05]) - FAN AND ELECTRONIC ASSEMBLY MOUNTING, 6 & 8 ROW RIGID TRAILING (MECH DRIVE) (FROM 11/2003) L - Field Processing

2

366185A2

BRACKET

fan mounting LH

1шт.

3

366186A2

BRACKET

fan mounting RH

1шт.

4

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

6

381423A1

BRACKET

valve mounting

2шт.

7

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

4шт.

8

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

10

9628503

NUT,3/8"-16, G5

4шт.

12

323477A4

BRACKET

electrical mounting

1шт.

14

284638A2

ELEC CONNECTOR,4 Pin

terminator, ASM monitor

1шт.

15

86624117

SCREW,Hex, #10 - 24 x 1/2"

3шт.

16

87304

NUT,#10-24

3шт.

17

405514A1

CONTROL

module, monitor interface

1шт.

17

405514A1R

REMAN ELECT CONTROL

1200 CASE IH ADVANCED SEED METER PLANTER, module, monitor interface (11/01-7/08)

1шт.

17

405514A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

18

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

19

88538

LOCK WASHER,Ext-Int Tooth, 1/4"

2шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.
